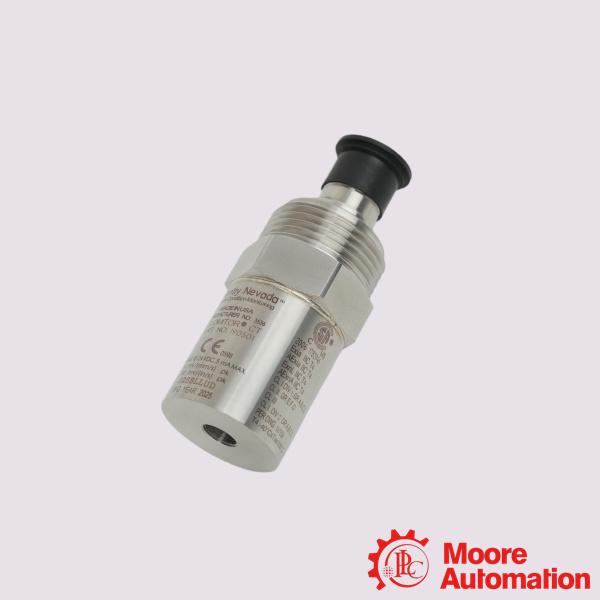

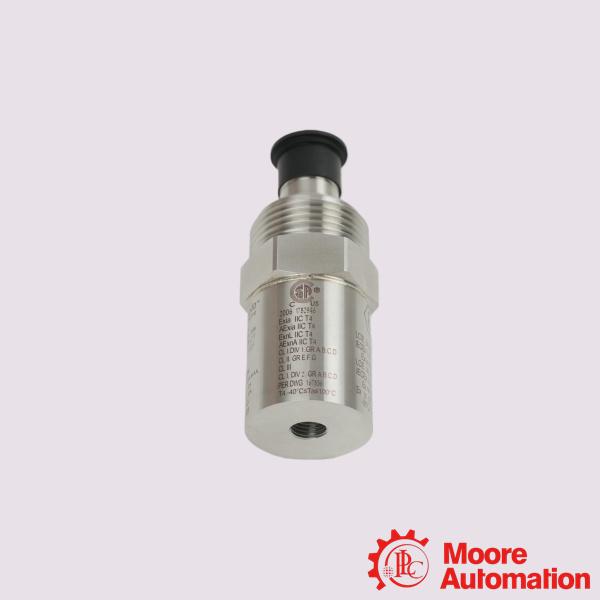

190501-13-00-00 | Bently Nevada Velomitor CT Velocity Transducer

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
3.6x8.3x3.1cm
Weight:
0.3kg
Country of Origin: :
USA
Description:
Bently Nevada 190501-13-00-00 Velomitor CT Velocity Transducer

Inquiry now

Mfr. Part Number:	190501-13-00-00

Manufacturer:	Bently Nevada

Description:	Bently Nevada 190501-13-00-00 Velomitor CT Velocity Transducer

Full Description:	The Velomitor CT Velocity Transducer is a low-frequency version of our standard Velomitor Piezo-velocity Sensor.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The Bently Nevada 190501-13-00-00 (Velomitor CT Velocity Transducer) is a specialized, low-frequency sensor primarily built to measure casing vibration velocity on slow-speed cooling towers and air-cooled heat-exchanger fan assemblies. Because it operates reliably at low frequencies (typically 100 to 300 rpm, with a minimum threshold of 90 rpm), it is widely deployed across massive infrastructure industries that rely heavily on large-scale industrial cooling and heat management systems.

Application:

Oil & Gas Refineries: Monitoring vital process-cooling units and fin-fan exchangers in volatile production areas.
Petrochemical & Fertilizer Plants: Ensuring continuous operation of cooling systems for high-stakes chemical processing.
Power Generation Plants: Protecting cooling tower cells used in thermal, nuclear, and combined-cycle power facilities.
Pulp & Paper Mills: Managing wastewater treatment and manufacturing process cooling equipment.

Frequently Asked Questions (FAQ)

Q:What is the primary application of this sensor?
A:The sensor is explicitly designed to measure low-frequency casing vibration velocity on cooling tower fans and air-cooled heat exchangers. It monitors the slow-speed rotation of fan blades (operating down to 90 RPM), as well as the frequencies of the fan motor and speed reducer.
Q:How does it differ from a standard Velomitor?
A:It is a low-frequency version of the standard Bently Nevada Velomitor. A standard Velomitor is typically rated down to 10 Hz, whereas the Velomitor CT has an extended lower frequency response down to 1.5 Hz to 3.0 Hz, which is necessary for slow-moving fan components.

Q:What mounting torque should be applied?
A:When securing the transducer base or matching hardware, apply a torque of 4.5 N-m ± 0.6 N-m (40 in-lbf ± 5 in-lbf). Using inappropriate torque or loose mounting degradation will severely affect the frequency response and generate false signals.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number：190501-13-00-00
Mounting Hardware Option	Quick disconnect stud
Connection Option	MIL-C-5015 connection interface
Sensitivity	3.94 mV/mm/s (100 mV/in/s) ±5%
Temperature Sensitivity	-8% to +5% typical over the operating temperature range
Transverse Response	Less than 5% of the axial sensitivity
Output Bias Voltage	10.1 Vdc ± 1.0 Vdc
Dynamic Output Impedance	<400 Ω typical
Operating Temperature	-40°C to +85°C (-40°F to +185°F)
Storage Temperature	-40°C to +100°C (-40°F to +212°F)
Agency Approval Option	No Approvals
