190501-11-99-00 | Bently Nevada Velomitor CT Velocity Transducer

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
3.6x3.1x10cm
Weight:
0.38kg
Country of Origin: :
USA
Description:

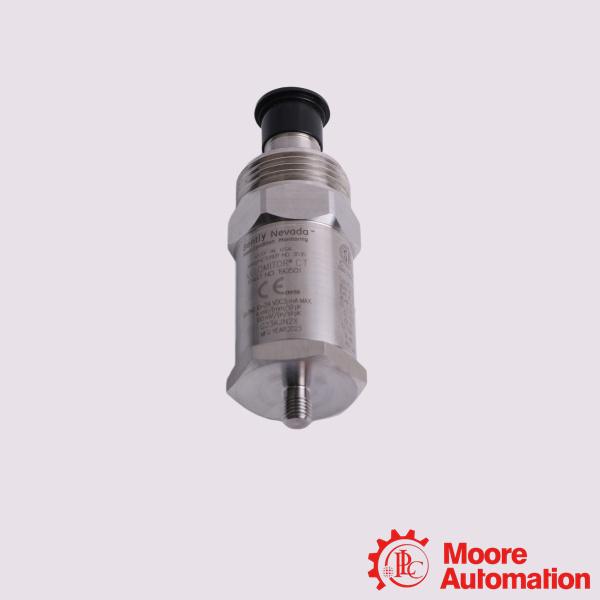

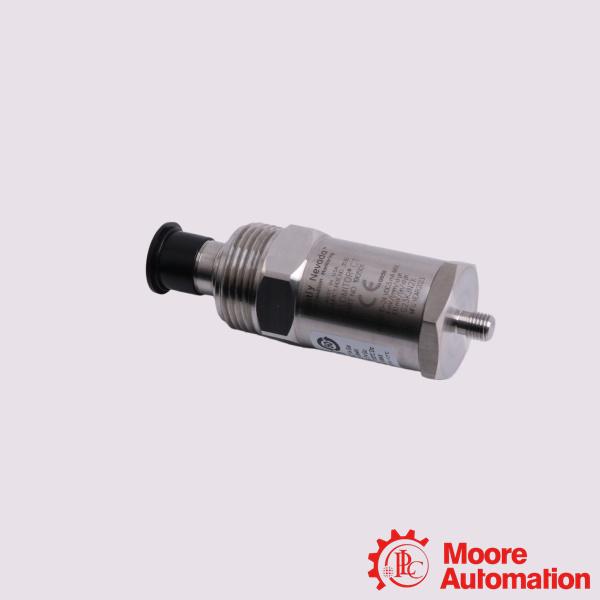

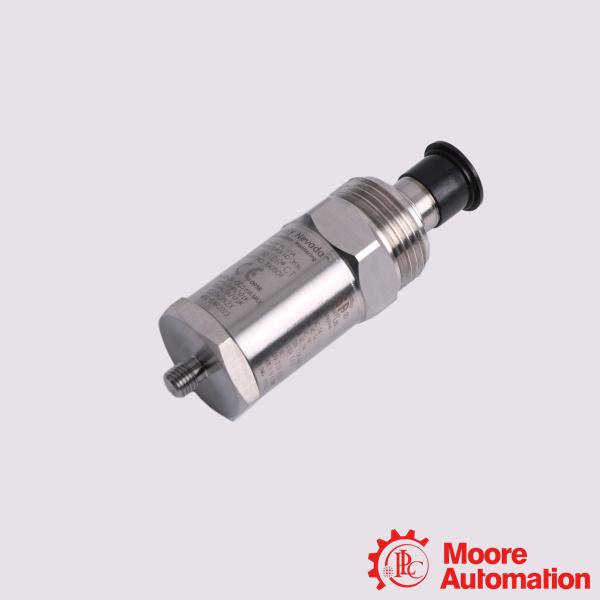

Bently Nevada 190501-11-99-00Velomitor CT Velocity Transducer

Inquiry now

Mfr. Part Number:	190501-11-99-00

Manufacturer:	Bently Nevada

Description:	Bently Nevada 190501-11-99-00Velomitor CT Velocity Transducer

Full Description:	The Velomitor CT Velocity Transducer is a low-frequency version of our standard Velomitor Piezo-velocity Sensor.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The Bently Nevada 190501-11-99-00 is a Velomitor CT Velocity Transducer. It is primarily used on cooling towers and air-cooled heat exchangers operating at or above 90 rpm.The Velomitor CT Velocity Transducer is a low-frequency version of our standard Velomitor Piezo-velocity Sensor. Its design specifically measures casing vibration velocity on cooling tower and air-cooled heat-exchanger fan assemblies that operate at or above 90 rpm (100 to 300 rpm typical).

Application:

Power Generation Plants: Tracking structural casing vibrations on massive induced-draft (ID) and forced-draft (FD) cooling fans.
Petrochemical & Refining: Protecting low-speed fan components in critical heat extraction and chemical distillation loops.
Industrial Water & Wastewater Treatment: Placed on slow-speed basin aerators, clarifier drives, and large pumps.
Cooling Towers: Monitoring large, slow-spinning fan blades, drive shafts, and gearboxes to prevent structural failures.

Frequently Asked Questions (FAQ)

Q:What is the primary application of this sensor?
A:It is optimized for low-speed machinery. It is heavily used on cooling towers and air-cooled heat exchangers to monitor fan assemblies operating between 100 to 300 rpm
Q:Is the internal electronics grounded to the shell?
A:No, the internal electronics are isolated from the case to prevent ground loops.

Q:How should this sensor be calibrated?
A:Because it monitors low frequencies, standard portable shakers fail to calibrate it properly. Loop validation should be conducted on-site using a dedicated low-frequency tool like the Model 9210D Portable Vibration Calibrator to test accuracy down to 42 CPM.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number：190501-11-99-00
Mounting Hardware Option	Plate Stud 3/8-in 24 to 1/4-in 28
Connection Option	Unit with included 32-foot cable
Sensitivity	3.94 mV/mm/s (100 mV/in/s) ±5%
Temperature Sensitivity	-8% to +5% typical over the operating temperature range
Transverse Response	Less than 5% of the axial sensitivity
Output Bias Voltage	10.1 Vdc ± 1.0 Vdc
Dynamic Output Impedance	<400 Ω typical
Operating Temperature	-40°C to +85°C (-40°F to +185°F)
Storage Temperature	-40°C to +100°C (-40°F to +212°F)
Agency Approval Option	No Approvals
