190501-11-00-CN | Bently Nevada Velomitor CT Velocity Transducer

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
8.3x3.5x3.2cm
Weight:
0.3kg
Country of Origin: :
USA
Description:

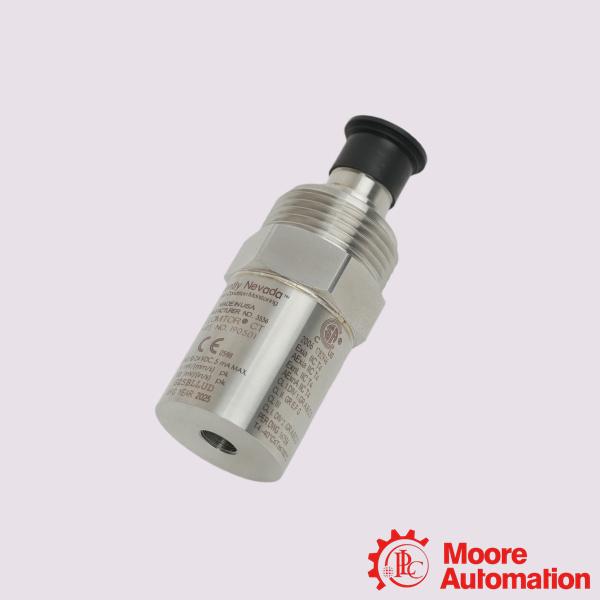

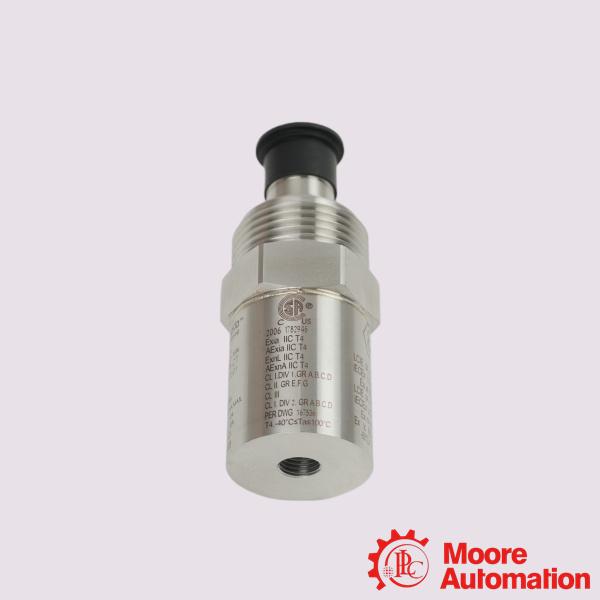

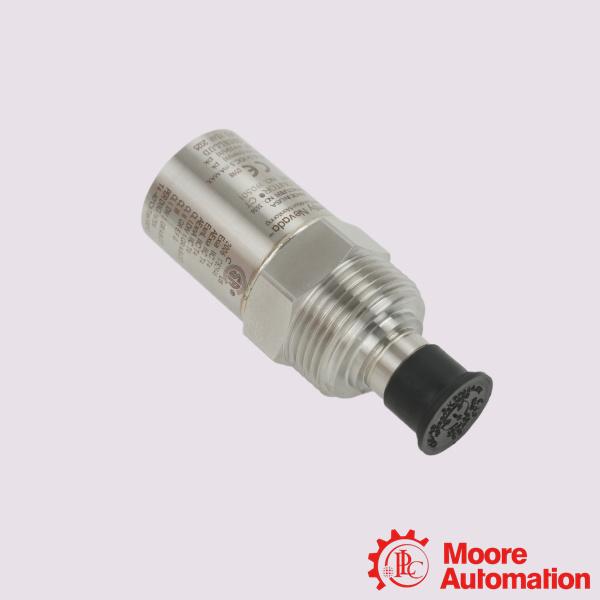

Bently Nevada 190501-11-00-CN Velomitor CT Velocity Transducer

Inquiry now

Mfr. Part Number:	190501-11-00-CN

Manufacturer:	Bently Nevada

Description:	Bently Nevada 190501-11-00-CN Velomitor CT Velocity Transducer

Full Description:	The Velomitor CT Velocity Transducer is a low-frequency version of our standard Velomitor Piezo-velocity Sensor.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The 190501-11-00-CN Velomitor CT Velocity Transducer is a low-frequency piezoelectric velocity sensor designed for cooling towers and air-cooled heat exchanger fan components. It is suitable for low-speed rotating equipment with speeds not less than 90 rpm , accurately measuring vibration amplitude and frequency generated by fan motors and speed reducers within this frequency band. The sensor features a robust stainless steel housing and offers cable exit options with conduit adapters or armored cables.

Application:

Cooling Tower Fan Assemblies: This is the primary target application. The sensor is optimized for the very low-frequency casing vibrations typical of massive, slow-moving cooling tower fans
Air-Cooled Heat Exchangers (Fin-Fans): Widely used to monitor the structural casing and fan assembly components in large air coolers.
Low-Speed Industrial Fans: Specifically engineered for machinery that operates at or above 90 RPM (most typically within the 100 to 300 RPM range).
Fan Motors: Monitors vibration frequencies generated by the driving electrical motor.

Frequently Asked Questions (FAQ)

Q:How does the "CT" version differ from a standard Velomitor?
A:The "CT" variant is tailored for low frequencies. Standard velocity sensors (like the 330500) fail to capture accurate metrics below 10 Hz. The 190501 series reads down to 1.5 Hz, letting you monitor machinery spinning at speeds as slow as 90 RPM.
Q:What does the "-CN" designation mean for deployment?
A:The "-CN" suffix proves compliance with regional Chinese standards (e.g., NEPSI, localized RoHS, and metrology mandates). It functions identically to units with international explosive atmosphere approvals (like ATEX/IECEx "-04" options), but carries the physical markings and legal paperwork required for use inside China.

Q:Which machinery protection systems accept this transducer?
A:The sensor links directly to industry-standard monitoring packages, including the Bently Nevada 3500 Machinery Protection System via a compatible 3500/70M Velocity Monitor module or 3500/42M Proximitor/Seismic Monitor module.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number：190501-11-00-CN
Mounting Hardware Option	Plate Stud 3/8-in 24 to 1/4-in 28
Connection Option	MIL-C-5015 connection interface
Sensitivity	3.94 mV/mm/s (100 mV/in/s) ±5%
Temperature Sensitivity	-8% to +5% typical over the operating temperature range
Transverse Response	Less than 5% of the axial sensitivity
Dynamic Output Impedance	<400 Ω typical
Operating Temperature	-40°C to +85°C (-40°F to +185°F)
Storage Temperature	-40°C to +100°C (-40°F to +212°F)
