190501-10-99-00 | Bently Nevada Velomitor CT Velocity Transducer

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
8.3x3.5x3.2cm
Weight:
0.3kg
Country of Origin: :
USA
Description:

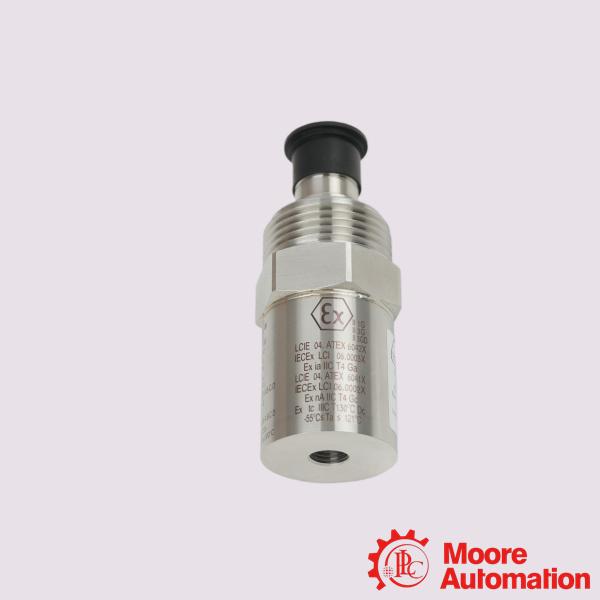

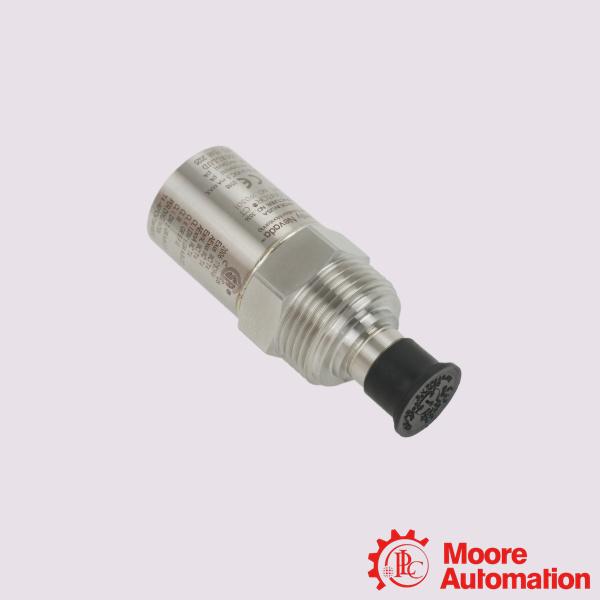

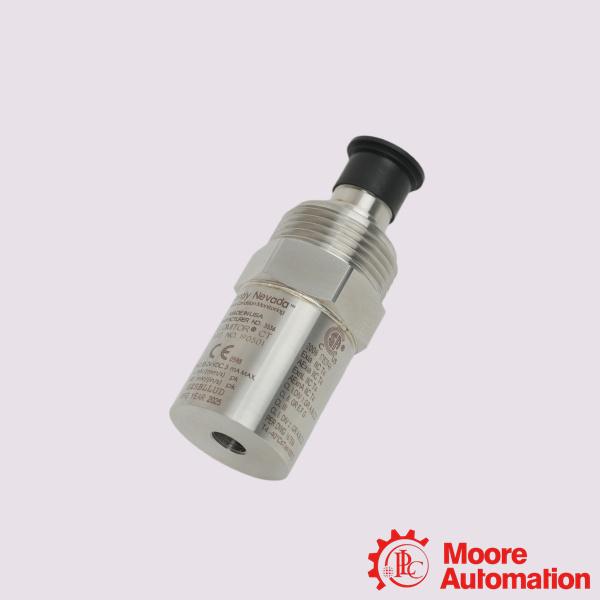

Bently Nevada 190501-10-99-00 Velomitor CT Velocity Transducer

Inquiry now

Mfr. Part Number:	190501-10-99-00

Manufacturer:	Bently Nevada

Description:	Bently Nevada 190501-10-99-00 Velomitor CT Velocity Transducer

Full Description:	The Velomitor CT Velocity Transducer is a low-frequency version of our standard Velomitor Piezo-velocity Sensor.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The Bently Nevada 190501-10-99-00 is a specific configuration of the Velomitor CT velocity sensor. This is a dedicated low-frequency piezoelectric velocity sensor. The Velomitor CT velocity sensor is a low-frequency variant of the standard Velomitor piezoelectric velocity sensor. Its design is specifically for measuring the vibration velocity of the casing of cooling tower and air-cooled heat exchanger fan components, suitable for equipment with speeds not less than 90 rpm (typically 100 to 300 rpm).

Application:

Oil & Gas / Refining: Installed on critical heat-exchangers and cooling units in petroleum refining, offshore production, and petrochemical plants.
Power Generation: Used in coal-fired, combined-cycle, and geothermal power plants to monitor structural cooling assets.
Chemical & Fertilizer Plants: Protecting cooling infrastructures subjected to harsh, corrosive, and continuous processing environments.
Water & Wastewater Treatment: Monitoring heavy aeration fans and low-frequency fluid processing pumps.

Frequently Asked Questions (FAQ)

Q:What connector type does it use?
A:The transducer utilizes a standard 2-pin MIL-C-5015 top connector. The internal electronics are fully isolated from the stainless steel outer case to eliminate ground loops.
Q:Why is low-frequency calibration important for this sensor?
A:Because it operates at very low cycles per minute (down to 90 cpm or 1.5 Hz), standard shaker tables cannot accurately test it. Proper verification requires a specialized low-frequency portable vibration calibrator to account for the steep roll-off inherent to piezoelectric velocity sensors at these limits.

Q:Why does the sensor experience steep roll-off at low frequencies?
A:The sensor is designed with a specialized low-frequency cutoff. Testing or operating the unit below 90 cycles per minute (1.5 Hz) results in a steep output drop, making standard sensitivity calculations inaccurate for ultra-slow applications. You can review full technical curves on the Bently Nevada 190501 Datasheet via Instrumart.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number：190501-10-99-00
Mounting Hardware Option	Plate Stud M6x1 to M6x1with 3/8- in 24 adapter
Connection Option	MIL-C-5015 connection interface
Sensitivity	3.94 mV/mm/s (100 mV/in/s) ±5%
Temperature Sensitivity	-8% to +5% typical over the operating temperature range
Transverse Response	Less than 5% of the axial sensitivity
Output Bias Voltage	10.1 Vdc ± 1.0 Vdc
Dynamic Output Impedance	<400 Ω typical
Operating Temperature	-40°C to +85°C (-40°F to +185°F)
Storage Temperature	-40°C to +100°C (-40°F to +212°F)
Agency Approval Option	No Approvals
