190501-10-00-CN | Bently Nevada Velomitor CT Velocity Transducer

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
8.3x3.5x3.2cm
Weight:
0.3kg
Country of Origin: :
USA
Description:

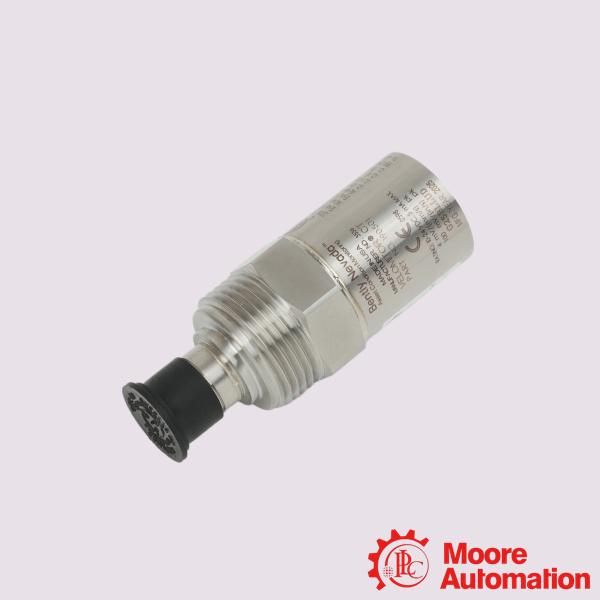

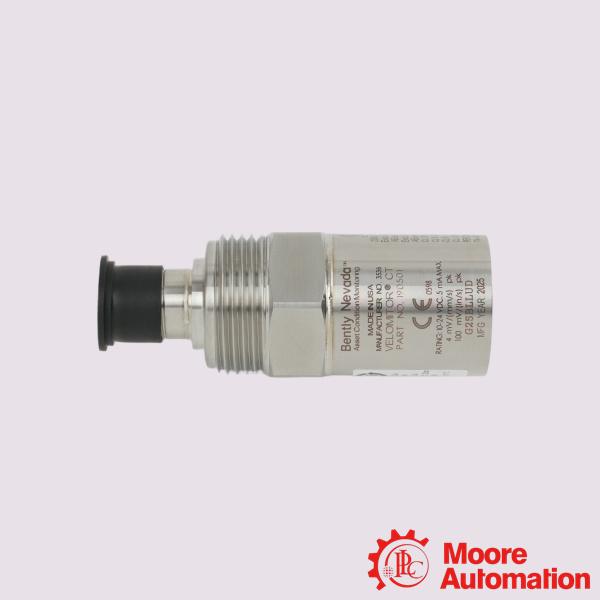

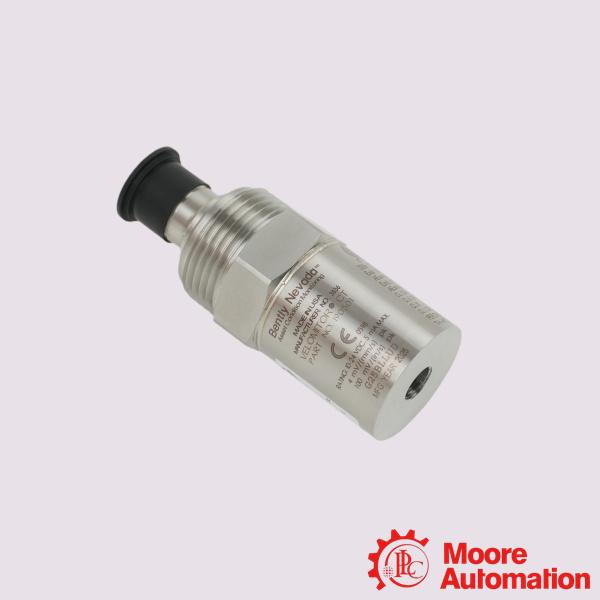

Bently Nevada 190501-10-00-CN Velomitor CT Velocity Transducer

Inquiry now

Mfr. Part Number:	190501-10-00-CN

Manufacturer:	Bently Nevada

Description:	Bently Nevada 190501-10-00-CN Velomitor CT Velocity Transducer

Full Description:	The Velomitor CT Velocity Transducer is a low-frequency version of our standard Velomitor Piezo-velocity Sensor.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The Bently Nevada 190501-10-00-CN is a Velomitor CT Velocity Transducer specifically engineered to measure low-frequency casing vibration velocity. It is designed primarily to monitor large, slow-moving industrial fan assemblies operating at or above 90 RPM (typically within the 100 to 300 RPM range). The "CN" suffix designates approvals specifically tailored for hazardous industrial areas in the Chinese market.

Application:

Industrial Cooling Towers: Used extensively in power plants, oil refineries, and chemical processing facilities to monitor the massive fan blades that reject waste heat into the atmosphere.
Air-Cooled Heat Exchangers (Fin-Fans): Deployed in upstream oil and gas production, midstream pipelines, and downstream petrochemical plants to track structural health on large aerial cooler fan modules.
Low-Speed Large Fan Assemblies: Applied to heavy-duty industrial ventilation setups, HVAC air handlers, and exhaust systems found across manufacturing environments.
Fan Motors: Monitors vibration amplitudes generated by the drive motor, isolating motor faults from actual fan assembly issues.

Frequently Asked Questions (FAQ)

Q:What is its primary function?
A:It tracks low-frequency structural vibration to assist with predictive maintenance. This makes it easier to catch early signs of machine imbalance, misalignment, or mechanical looseness in low-speed machinery.
Q:How does it differ from a standard Velomitor
A:Standard sensors are built for mid-to-high frequency monitoring. The "CT" variant is specifically tuned for lower frequencies (1.5 Hz) to properly capture the slower rotation speeds of large fan assemblies.

Q:What torque should be used during installation?
A:The recommended mounting torque is 4.5 N-m ± 0.6 N-m (40 in-lbf ± 5 in-lbf). Proper torquing ensures correct frequency response and prevents signal distortion.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number：190501-10-00-CN
Mounting Hardware Option	Plate Stud M6x1 to M6x1with 3/8- in 24 adapter
Connection Option	MIL-C-5015 connection interface
Sensitivity	3.94 mV/mm/s (100 mV/in/s) ±5%
Temperature Sensitivity	-8% to +5% typical over the operating temperature range
Transverse Response	Less than 5% of the axial sensitivity
Dynamic Output Impedance	<400 Ω typical
Base Strain Sensitivity	0.43 mm/s/μstrain (0.017 in/s/μstrain)
Operating Temperature	-40°C to +85°C (-40°F to +185°F)
Storage Temperature	-40°C to +100°C (-40°F to +212°F)
