190501-10-00-01 | Bently Nevada Velomitor CT Velocity Transducer

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
20x15x4cm
Weight:
0.75kg
Country of Origin: :
USA
Description:

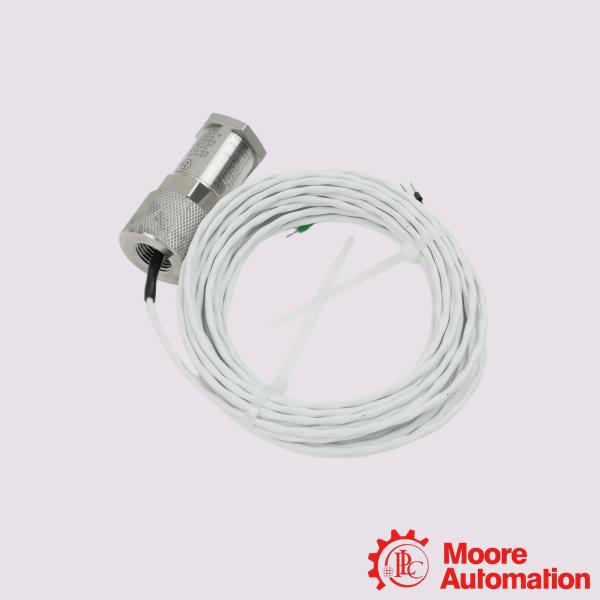

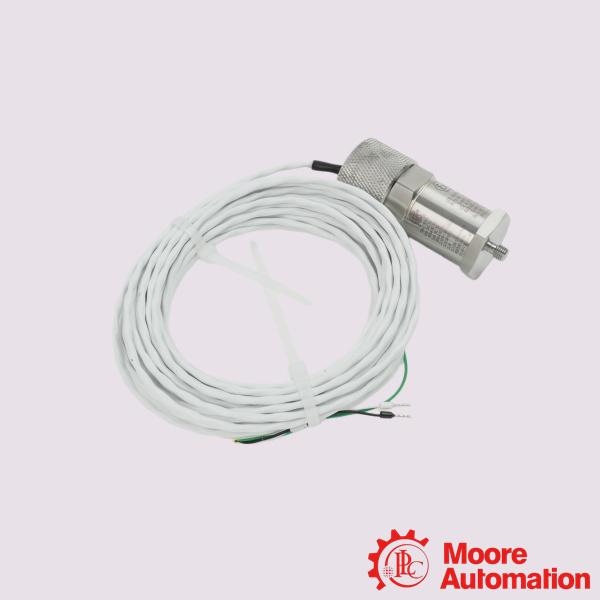

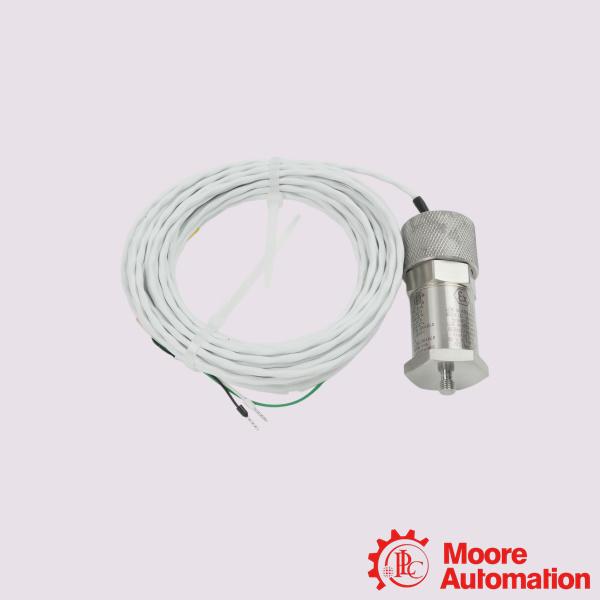

Bently Nevada 190501-10-00-01 Velomitor CT Velocity Transducer

Inquiry now

Mfr. Part Number:	190501-10-00-01

Manufacturer:	Bently Nevada

Description:	Bently Nevada 190501-10-00-01 Velomitor CT Velocity Transducer

Full Description:	The Velomitor CT Velocity Transducer is a low-frequency version of our standard Velomitor Piezo-velocity Sensor.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The Bently Nevada 190501-10-00-01 is a specific part number configuration for the Velomitor CT (Cooling Tower) Velocity Transducer. This low-frequency piezo-velocity sensor is designed primarily to monitor casing vibration on low-speed cooling tower fans and air-cooled heat exchangers operating at or above 90 RPM.The Velomitor CT Velocity Transducer is a low-frequency version of our standard Velomitor Piezo-velocity Sensor. Its design specifically measures casing vibration velocity on cooling tower and air-cooled heat-exchanger fan assemblies that operate at or above 90 rpm (100 to 300 rpm typical). The Velomitor CT Transducer can measure vibration amplitudes at these frequencies as well as the vibration frequencies generated by the fan motor and speed reducer.

Application:

Power Generation Facilities: Deployed on the ancillary cooling tower infrastructure of thermal, nuclear, and combined-cycle power plants.
Industrial Water Treatment Processing: Applied to low-speed circulating water pumps, wastewater aerators, and large mixing agitators.
Air-Cooled Heat Exchangers (Fin-Fans): Monitors structural vibrations caused by slow-speed heavy fan blades in petrochemical and refining infrastructure.
Wet and Dry Cooling Towers: Used across industrial processing plants to measure fan assembly casing vibration. It actively suppresses low-frequency aerodynamic noise and mechanical cross-talk standard sensors suffer from in wet environments.

Frequently Asked Questions (FAQ)

Q:What is the required mounting torque?
A:The recommended mounting torque is 4.5 N-m ± 0.6 N-m (40 in-lbf ± 5 in-lbf).
Q:What is the frequency response range?
A:It operates from 3.0 Hz to 900 Hz (±1.0 dB), with an extended range capability down to 1.5 Hz and up to 1.0 kHz (±3.0 dB).

Q:CWhat are the temperature limits?
A:The operating temperature ranges from -40 °C to +85 °C (-40 °F to +185 °F).

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number：190501-10-00-01
Mounting Hardware Option	Plate Stud M6x1 to M6x1with 3/8- in 24 adapter
Connection Option	MIL-C-5015 connection interface
Sensitivity	3.94 mV/mm/s (100 mV/in/s) ±5%
Temperature Sensitivity	-8% to +5% typical over the operating temperature range
Transverse Response	Less than 5% of the axial sensitivity
Output Bias Voltage	10.1 Vdc ± 1.0 Vdc
Dynamic Output Impedance	<400 Ω typical
Operating Temperature	-40°C to +85°C (-40°F to +185°F)
Storage Temperature	-40°C to +100°C (-40°F to +212°F)
