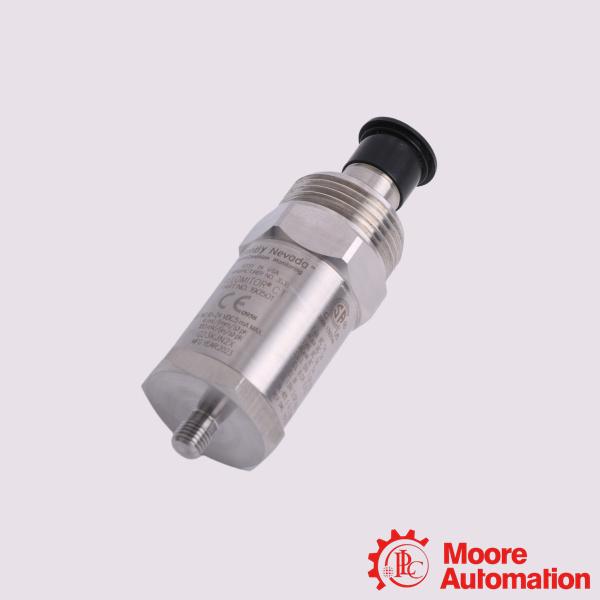

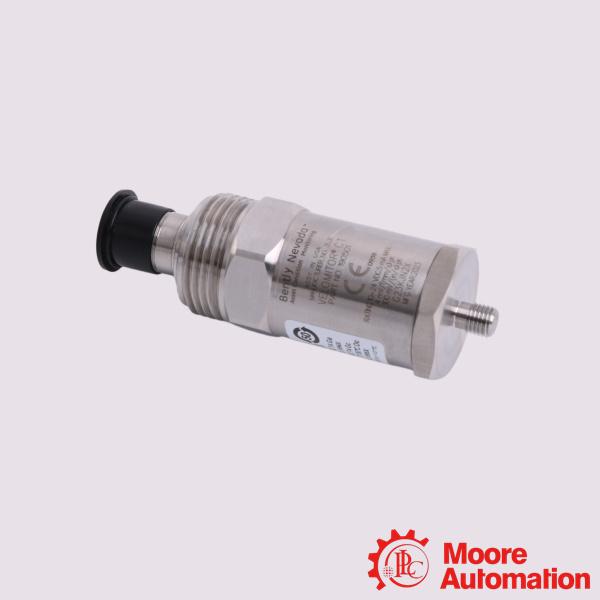

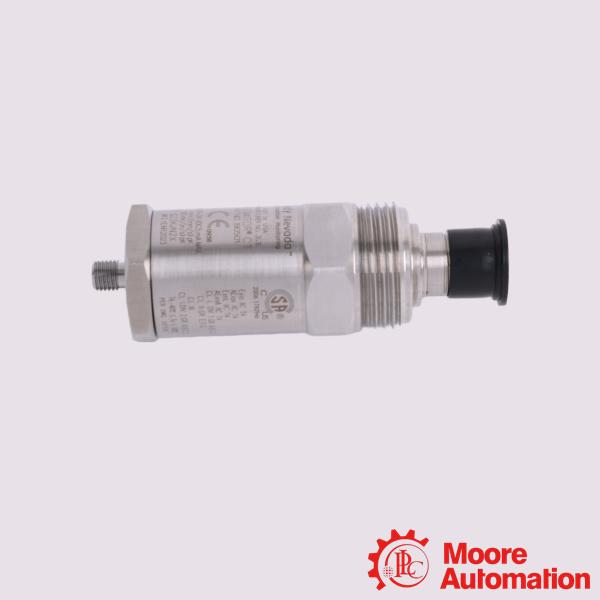

190501-08-00-01 | Bently Nevada Velomitor CT Velocity Transducer

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
3.6x8.3x3.1cm
Weight:
0.3kg
Country of Origin: :
USA
Description:
Bently Nevada 190501-08-00-01 Velomitor CT Velocity Transducer

Inquiry now

Mfr. Part Number:	190501-08-00-01

Manufacturer:	Bently Nevada

Description:	Bently Nevada 190501-08-00-01 Velomitor CT Velocity Transducer

Full Description:	The Velomitor CT Velocity Transducer is a low-frequency version of our standard Velomitor Piezo-velocity Sensor.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The Bently Nevada 190501-08-00-01 is a specific configuration of the Velomitor CT (cooling tower) velocity sensor, belonging to the low-frequency piezoelectric velocity sensor category. The Velomitor CT velocity sensor is a low-frequency variant of the standard Velomitor piezoelectric velocity sensor. This product is specifically designed for measuring the vibration velocity of the casing of cooling towers and air-cooled heat exchanger fan components, suitable for equipment operating at speeds not less than 90 rpm (typically 100–300 rpm). This sensor can not only capture the aforementioned low-frequency vibration amplitudes but also effectively detect vibration frequency components generated by the fan motor and reducer.

Application:

Oil & Gas Refining / Petrochemical: Safeguarding continuous-operation fin-fans and cooling blocks.
Power Generation: Monitoring thermal cooling towers linked to steam and gas turbines.
Chemical Processing Processing Plants: Mitigating risk on essential HVAC and climate-control infrastructure.
Pulp & Paper / Manufacturing: Tracking slow-speed processing machinery and mechanical draft fans.

Frequently Asked Questions (FAQ)

Q:What is the primary application for this sensor?
A:It is engineered specifically to measure low-frequency machinery case vibrations on cooling tower fan assemblies and large heat exchangers spinning at or above 90 RPM. It successfully tracks issues like fan unbalance, motor alignment, and gear reducer degradation.
Q:Can it be directly interchanged with a standard 330500 Velomitor?
A:No. Standard Bently Nevada 330500 Velomitors are designed for general machinery tracking and only read accurately down to 4.5 Hz. The 190501 CT is specifically tuned down to 1.5 Hz to catch the slower mechanical rotational forces of massive cooling tower fans.

Q:What installation torque should be used?
A:You must mount the transducer to a flat, clean surface with a torque rating of 4.5 N-m ± 0.6 N-m (40 in-lbf ± 5 in-lbf). Improper torque or uneven surface mating will degrade both frequency response and data precision.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number：190501-08-00-01
Mounting Hardware Option	Plate Stud 3/8-in 24 to 1/2-in 20
Connection Option	MIL-C-5015 connection interface
Sensitivity	3.94 mV/mm/s (100 mV/in/s) ±5%
Temperature Sensitivity	-8% to +5% typical over the operating temperature range
Transverse Response	Less than 5% of the axial sensitivity
Output Bias Voltage	10.1 Vdc ± 1.0 Vdc
Dynamic Output Impedance	<400 Ω typical
Operating Temperature	-40°C to +85°C (-40°F to +185°F)
Storage Temperature	-40°C to +100°C (-40°F to +212°F)
