190501-07-00-CN | Bently Nevada Velomitor CT Velocity Transducer

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
3.6x8.3x3.1cm
Weight:
0.3kg
Country of Origin: :
USA
Description:

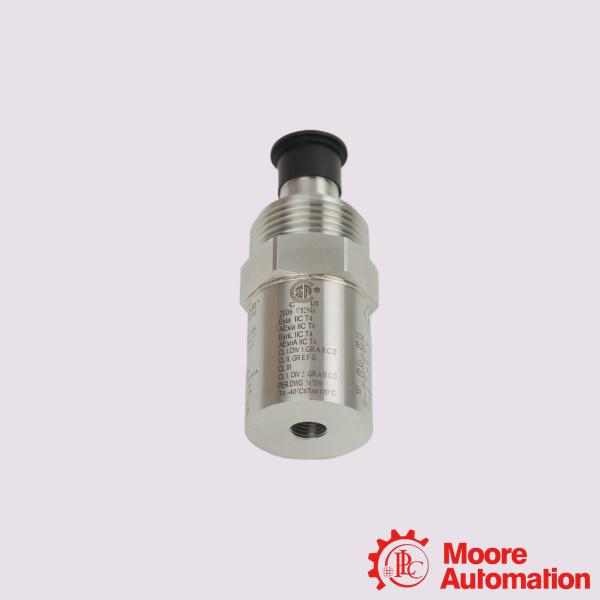

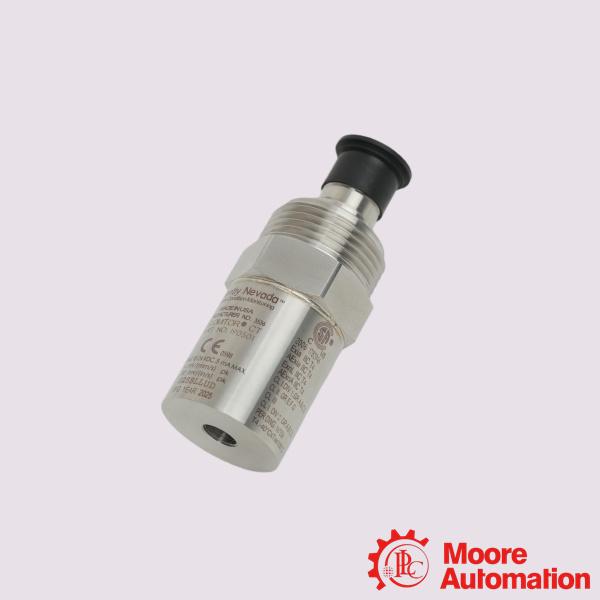

Bently Nevada 190501-07-00-CN Velomitor CT Velocity Transducer

Inquiry now

Mfr. Part Number:	190501-07-00-CN

Manufacturer:	Bently Nevada

Description:	Bently Nevada 190501-07-00-CN Velomitor CT Velocity Transducer

Full Description:	The Velomitor CT Velocity Transducer is a low-frequency version of our standard Velomitor Piezo-velocity Sensor.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The Bently Nevada 190501-07-00-CN is a Velomitor CT Velocity Transducer, a specialized low-frequency vibration sensor to measure casing vibration velocity on heavy industrial equipment.The Velomitor CT Velocity Transducer is a low-frequency version of our standard Velomitor Piezo-velocity Sensor. Its design specifically measures casing vibration velocity on cooling tower and air-cooled heat-exchanger fan assemblies that operate at or above 90 rpm (100 to 300 rpm typical). The Velomitor CT Transducer can measure vibration amplitudes at these frequencies as well as the vibration frequencies generated by the fan motor and speed reducer.

Application:

Oil & Gas Refineries: Deployed on massive cooling arrays subject to flammable gases.
Petrochemical & Chemical Processing Plants: Used to track slow-speed heat exchanger health in corrosive and explosive zones.
Power Generation Stations: Mounted to the heavy-duty cooling tower structures required by thermal and nuclear facilities.
Complete Drive Train Monitoring: Beyond just the fan blades, the sensor effectively monitors mechanical faults radiating from the fan motor and the speed reducer (gearbox).

Frequently Asked Questions (FAQ)

Q:What is the primary purpose of the Velomitor CT?
A:It measures low-frequency mechanical vibrations in machinery casing. It is widely deployed to monitor the structural integrity of heavy-duty industrial fan blades, gearboxes, and motors where conventional sensors struggle with lower operational speeds.
Q:How is the sensor physically installed?
A:The sensor must be attached utilizing its 07-designated plate stud option. Always apply a recommended mounting torque of 4.5 N-m ± 0.6 N-m (40 in-lbf) to a flat 33 mm diameter surface to secure valid readings and avoid thread degradation.

Q:Does this unit require periodic calibration?
A:Yes. To ensure optimal performance at lower frequency spectrums, the transducer should undergo periodic frequency sweep testing via a portable vibration calibrator. Data points are typically verified against factory-established tolerances before generating compliance certificates.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number：190501-07-00-CN
Mounting Hardware Option	Plate Stud 3/8-in 24 to 3/8-in 24
Connection Option	MIL-C-5015 connection interface
Sensitivity	3.94 mV/mm/s (100 mV/in/s) ±5%
Temperature Sensitivity	-8% to +5% typical over the operating temperature range
Transverse Response	Less than 5% of the axial sensitivity
Output Bias Voltage	10.1 Vdc ± 1.0 Vdc
Dynamic Output Impedance	<400 Ω typical
Operating Temperature	-40°C to +85°C (-40°F to +185°F)
Storage Temperature	-40°C to +100°C (-40°F to +212°F)
