190501-06-99-00 | Bently Nevada Velomitor CT Velocity Transducer

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
3.6x8.3x3.1cm
Weight:
0.3kg
Country of Origin: :
USA
Description:

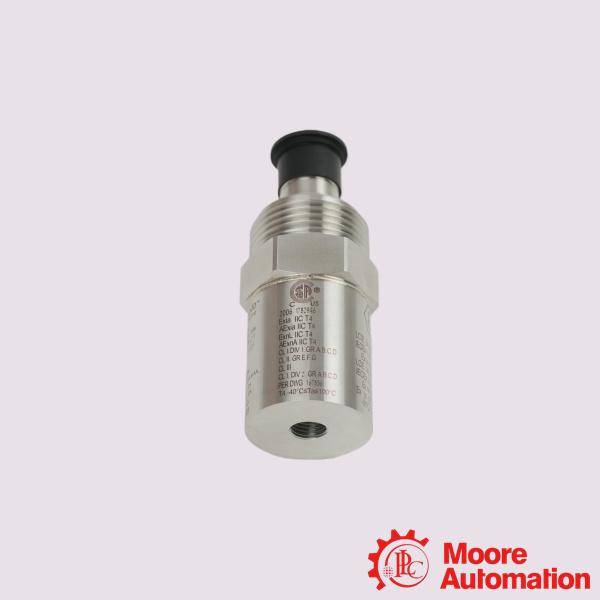

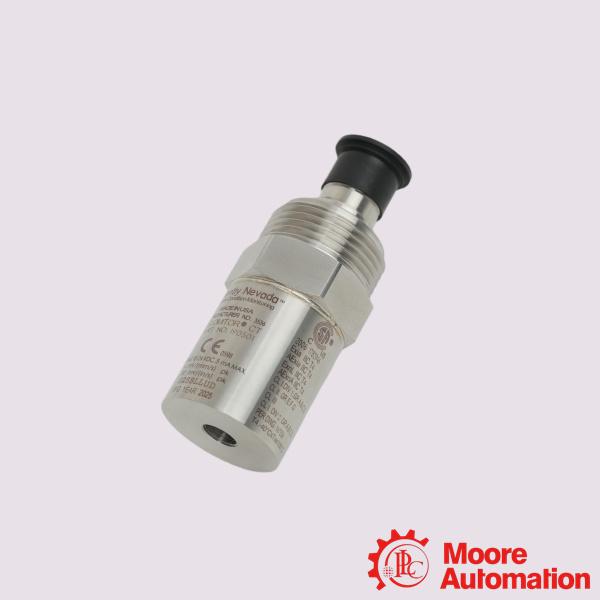

Bently Nevada 190501-06-99-00 Velomitor CT Velocity Transducer

Inquiry now

Mfr. Part Number:	190501-06-99-00

Manufacturer:	Bently Nevada

Description:	Bently Nevada 190501-06-99-00 Velomitor CT Velocity Transducer

Full Description:	The Velomitor CT Velocity Transducer is a low-frequency version of our standard Velomitor Piezo-velocity Sensor.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The Bently Nevada 190501-06-99-00 is a Velomitor CT (Cooling Tower) Velocity Transducer.The Velomitor CT Velocity Transducer is a low-frequency version of our standard Velomitor Piezo-velocity Sensor. Its design specifically measures casing vibration velocity on cooling tower and air-cooled heat-exchanger fan assemblies that operate at or above 90 rpm (100 to 300 rpm typical). The Velomitor CT Transducer can measure vibration amplitudes at these frequencies as well as the vibration frequencies generated by the fan motor and speed reducer.

Application:

Industrial Cooling Towers: Used across power plants, chemical refineries, and HVAC networks to monitor the severe, slow-vibration profiles of large cooling fan assemblies.
Air-Cooled Heat Exchangers (Fin-Fans): Monitors the low-frequency resonance and casing velocity of massive air cooler fan decks common in upstream and downstream oil and gas facilities.
Slow-Speed Industrial Fans: Protects heavy-duty ventilation and exhaust fans that spin at speeds as low as 90 RPM.
Gearboxes & Speed Reducers: Captures low-frequency mechanical faults generated by the gear-reduction systems linking the primary motor to the fan blades.

Frequently Asked Questions (FAQ)

Q:What is its frequency response range?
A:It operates accurately from 3.0 Hz to 900 Hz (±1.0 dB) and extends from 1.5 Hz to 1.0 kHz (±3.0 dB).
Q:What is the maximum velocity range?
A:It supports measurements up to 63.5 mm/s peak (2.5 in/s peak).

Q:Is the cable detachable?
A:No, the 99 option denotes an intergral, non-detachable 32-foot cable molded directly to the sensor body to prevent moisture ingress.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number：190501-06-99-00
Mounting Hardware Option	Stud 3/8-in 24 to 1/4-in 28
Connection Option	Unit with included 32-foot cable
Sensitivity	3.94 mV/mm/s (100 mV/in/s) ±5%
Temperature Sensitivity	-8% to +5% typical over the operating temperature range
Transverse Response	Less than 5% of the axial sensitivity
Output Bias Voltage	10.1 Vdc ± 1.0 Vdc
Dynamic Output Impedance	<400 Ω typical
Operating Temperature	-40°C to +85°C (-40°F to +185°F)
Storage Temperature	-40°C to +100°C (-40°F to +212°F)
Agency Approval Option	No Approvals
