in stock#
Brand/ Manufacturer:
Bently NevadaDimensions:
8.3x3.5x3.2cmWeight:
0.3kgCountry of Origin: :
USADescription:

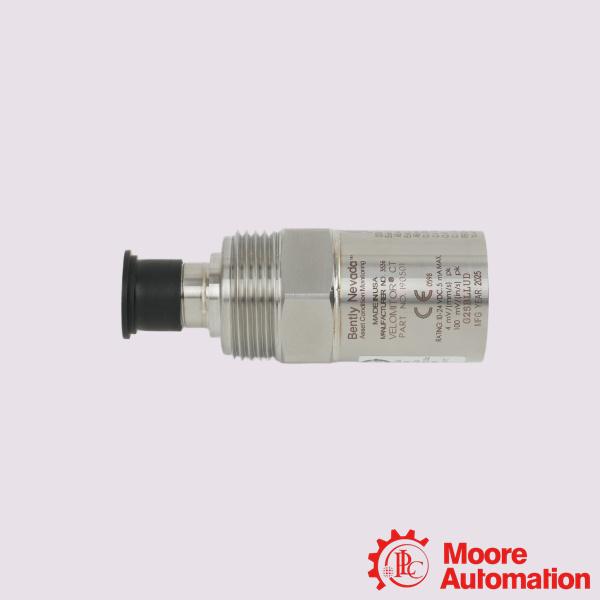

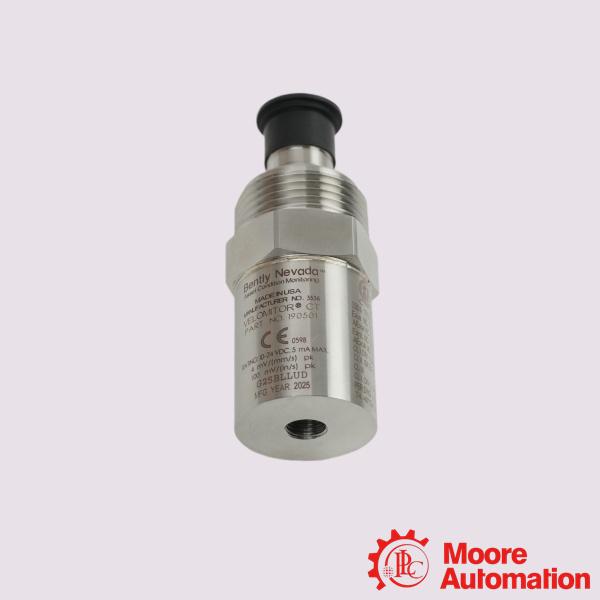

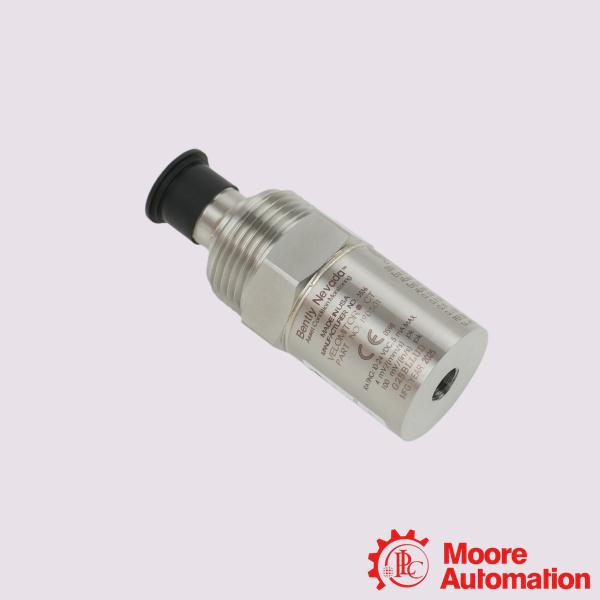

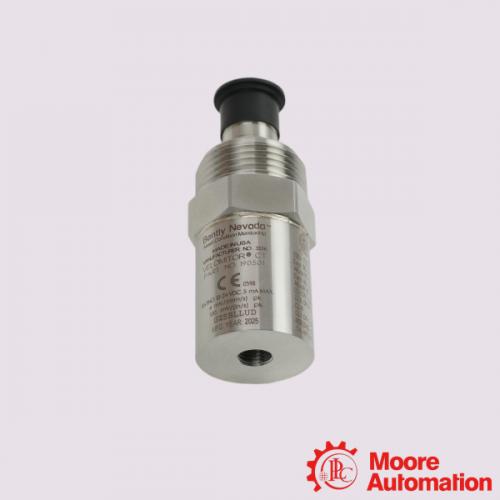

Bently Nevada 190501-06-00-04 Velomitor CT Velocity Transducer
| Mfr. Part Number: |
190501-06-00-04 |
| Manufacturer: |
Bently Nevada |
| Description: | Bently Nevada 190501-06-00-04 Velomitor CT Velocity Transducer |
| Full Description: | The Velomitor CT Velocity Transducer is a low-frequency version of our standard Velomitor Piezo-velocity Sensor. |
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:
The Bently Nevada 190501-06-00-04 is a Velomitor CT (cooling tower) velocity sensor primarily used in industrial cooling towers and air-cooled heat exchanger fan assemblies, which typically operate at low structural speeds. The Velomitor CT velocity sensor is a low-frequency version of the standard Velomitor piezoelectric velocity sensor, specifically designed to measure the casing vibration velocity of cooling towers and air-cooled heat exchanger fan assemblies (typically operating at 100 to 300 rpm, minimum 90 rpm). This sensor measures the vibration amplitude at these frequencies, as well as the vibration frequency generated by the fan motor and reducer.
Application:
Power Generation Facilities: Continuous monitoring of large cooling tower induction fans and structural supports in nuclear, coal, and combined-cycle gas plants.
Oil & Gas Processing: Critical machinery health tracking for massive air-cooled heat exchangers (fin-fans) used in upstream production and downstream refining.
Pulp, Paper, & Sugar Production: Casing-mounted tracking for raw material wash towers and large-scale plant fluid coolers.
Heavy Manufacturing: Structural predictive maintenance for metal, steel mill, and mining ventilation systems.
Frequently Asked Questions (FAQ)
Q:Can this sensor be mounted at any angle?
A:Yes. The solid-state internal piezo-velocity design allows the transducer to be mounted in any physical orientation (vertical, horizontal, or inverted) without degrading sensor performance.
Q:What is the proper installation torque?
A:The sensor casing must be tightened to a specific mounting torque of 4.5 N-m ± 0.6 N-m (40 in-lbf ± 5 in-lbf). Under-torquing can cause signal loss at low frequencies, while over-torquing can warp the internal crystalline structure.
Q:How should this low-frequency loop be calibrated?
A:Standard high-frequency shakers cannot accurately test the 3.0 Hz limit. Maintenance teams utilize specialized portable low-frequency calibrators (like the Model 9210D) to perform full NIST-traceable loop checks directly at the machine running speed.
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：190501-06-00-04 |
|
Mounting Hardware Option |
Stud 3/8-in 24 to 1/4-in 28 |
|
Connection Option |
MIL-C-5015 connection interface |
|
Sensitivity |
3.94 mV/mm/s (100 mV/in/s) ±5% |
|
Temperature Sensitivity |
-8% to +5% typical over the operating temperature range |
|
Transverse Response |
Less than 5% of the axial sensitivity |
|
Output Bias Voltage |
10.1 Vdc ± 1.0 Vdc |
|
Dynamic Output Impedance |
<400 Ω typical |
|
Operating Temperature |
-40°C to +85°C (-40°F to +185°F) |
|
Storage Temperature |
-40°C to +100°C (-40°F to +212°F) |
|
