190501-03-00-CN | Bently Nevada Velomitor CT Velocity Transducer

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
8.3x3.5x3.2cm
Weight:
0.3kg
Country of Origin: :
USA
Description:

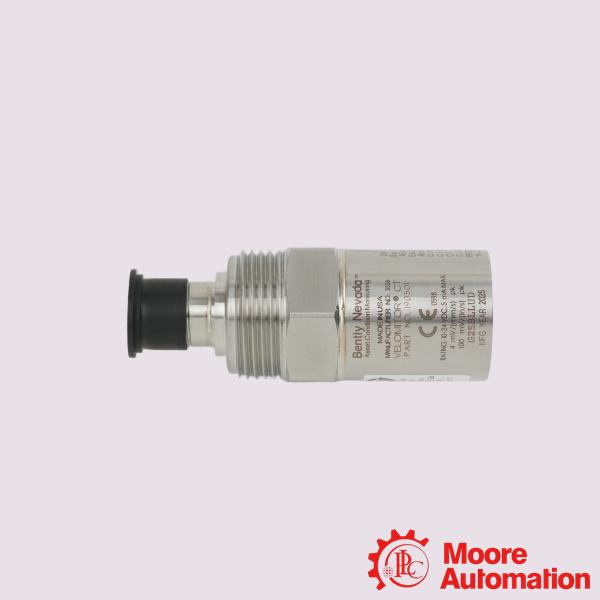

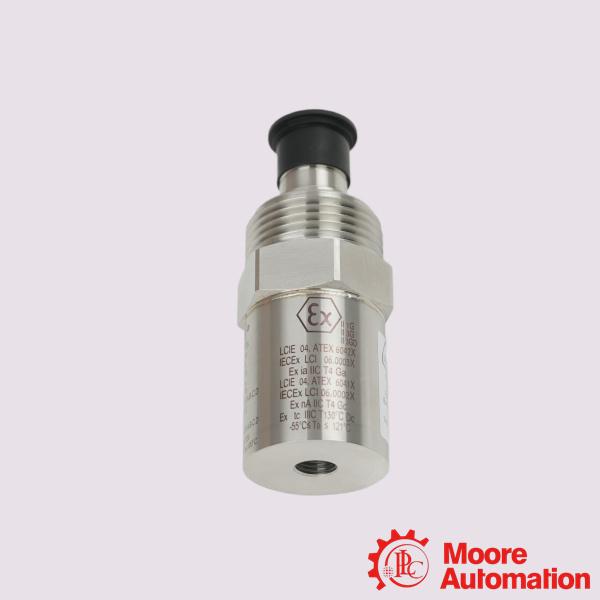

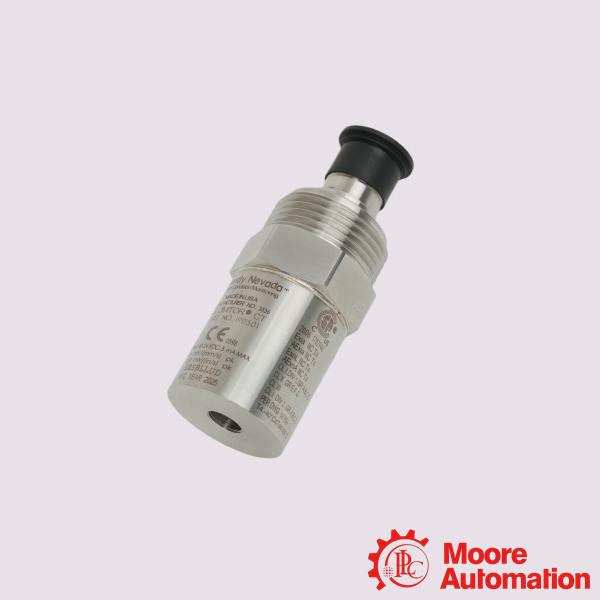

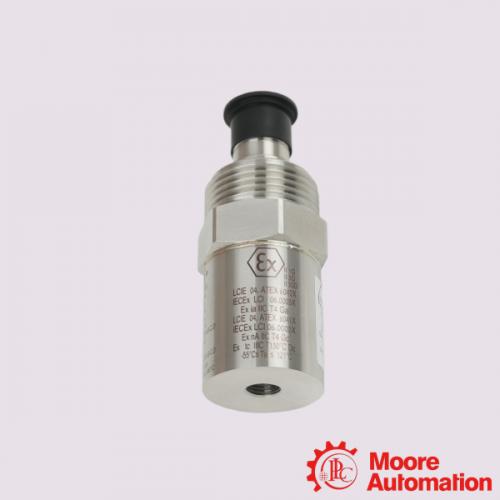

Bently Nevada 190501-03-00-CN Velomitor CT Velocity Transducer

Inquiry now

Mfr. Part Number:	190501-03-00-CN

Manufacturer:	Bently Nevada

Description:	Bently Nevada 190501-03-00-CN Velomitor CT Velocity Transducer

Full Description:	The Velomitor CT Velocity Transducer is a low-frequency version of our standard Velomitor Piezo-velocity Sensor.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The Bently Nevada 190501-03-00-CN is a Velomitor CT (Cooling Tower) Velocity Transducer, a specialized casing-mounted vibration sensor designed specifically to measure low-frequency vibrations in harsh industrial environments.The Velomitor CT Velocity Transducer is a low-frequency version of our standard Velomitor Piezo-velocity Sensor. Its design specifically measures casing vibration velocity on cooling tower and air-cooled heat-exchanger fan assemblies that operate at or above 90 rpm (100 to 300 rpm typical). The Velomitor CT Transducer can measure vibration amplitudes at these frequencies as well as the vibration frequencies generated by the fan motor and speed reducer.

Application:

Oil & Gas Refining and Pipelines: Used for machinery monitoring, pipeline protection, and extraction process control where hazardous area certifications (via the -CN specific agency approvals) are mandatory.
Power Generation Plants: Monitors slow-moving components in hydroelectric plants, wind turbines, and standard fossil fuel power facility machinery to ensure continuous grid uptime.
Petrochemical Processing: Implemented on low-RPM machinery housings, pumps, and mixers prone to shifting frequencies or heavy process stress.
Pulp & Paper Mills: Tracks large, low-speed rotating drums, rollers, and exhaust fans that operate in high-humidity and corrosive environments.

Frequently Asked Questions (FAQ)

Q:What is the primary purpose of the Velomitor CT?
A:It is designed to continuously monitor casing vibration velocity on low-speed rotating machinery, explicitly targeting cooling towers and air-cooled heat exchangers. It tracks structural health across fan blades, gearboxes, and low-speed drive motors.
Q:What machinery speeds can it monitor?
A:Unlike standard velocity sensors, the CT (Cooling Tower) variant is specially tuned to handle machinery moving as slow as 90 RPM (typically operating between 100 to 300 RPM).

Q:What are its construction and physical properties?
A:The sensor housing is built from rugged 316L stainless steel for superior corrosion protection against industrial water treatment chemicals. It features a mounting surface diameter of 33 mm (1.3 in) and stands roughly 82 mm (3.2 in) tall.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number：190501-03-00-CN
Mounting Hardware Option	Adhesive Stud 3/8-in 24
Connection Option	MIL-C-5015 connection interface
Sensitivity	3.94 mV/mm/s (100 mV/in/s) ±5%
Temperature Sensitivity	-8% to +5% typical over the operating temperature range
Transverse Response	Less than 5% of the axial sensitivity
Dynamic Output Impedance	<400 Ω typical
Operating Temperature	-40°C to +85°C (-40°F to +185°F)
Storage Temperature	-40°C to +100°C (-40°F to +212°F)
