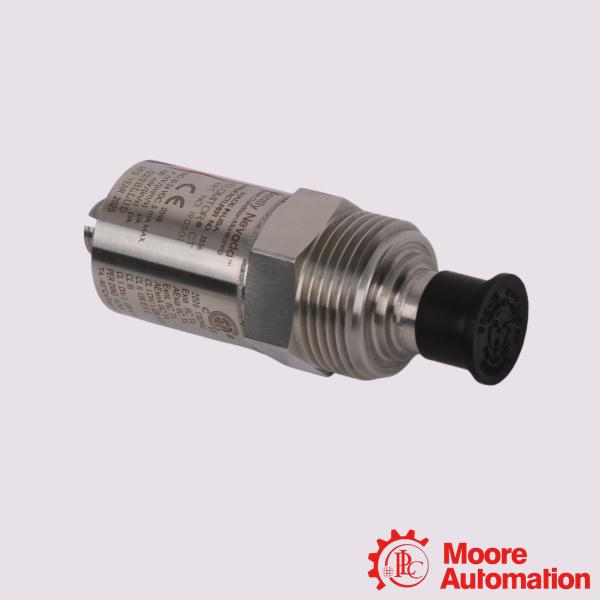

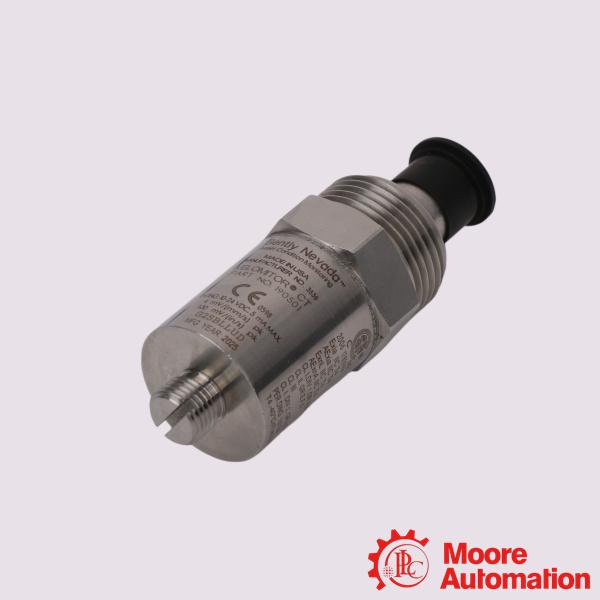

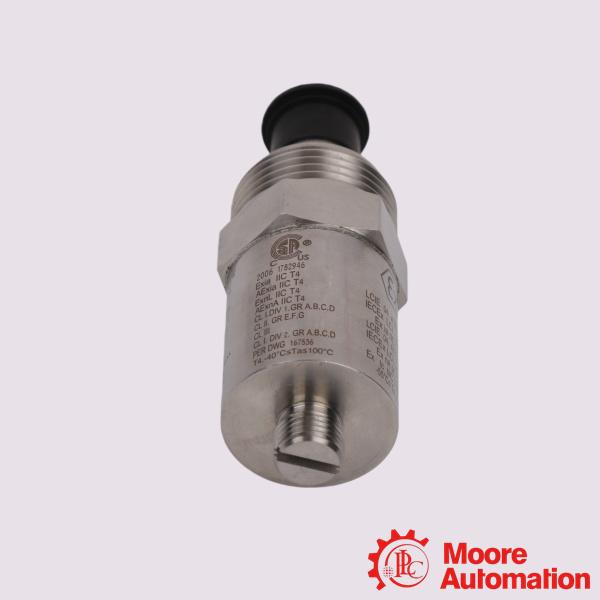

190501-02-00-04 | Bently Nevada Velomitor CT Velocity Transducer

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
9.2x3.6x3cm
Weight:
0.3kg
Country of Origin: :
USA
Description:
Bently Nevada 190501-02-00-04 Velomitor CT Velocity Transducer

Inquiry now

Mfr. Part Number:	190501-02-00-04

Manufacturer:	Bently Nevada

Description:	Bently Nevada 190501-02-00-04 Velomitor CT Velocity Transducer

Full Description:	The Velomitor CT Velocity Transducer is a low-frequency version of our standard Velomitor Piezo-velocity Sensor.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The Bently Nevada 190501-02-00-04 is a Velomitor CT (cooling tower) velocity sensor manufactured by Baker Hughes. This sensor is specifically designed to measure the low-frequency casing vibration velocity of low-speed equipment such as cooling towers and air-cooled heat exchanger fans.The Velomitor CT velocity sensor is a low-frequency version of the standard Velomitor piezoelectric velocity sensor, specifically optimized for measuring the casing vibration velocity of cooling tower and air-cooled heat exchanger fan assemblies. It is suitable for equipment with speeds not lower than 90 rpm (typically 100–300 rpm). This sensor can not only measure the vibration amplitude within this speed range but also effectively capture the vibration frequency generated by the fan motor and reducer.

Application:

Power Generation Stations: Installed on slow-speed rotating cooling systems for steam condensers and large machinery support circuits.
Petrochemical & Refining Facilities: Tracks the health of critical heat-rejection machinery operating in highly explosive or hazardous zones.
Industrial Water Treatment Plants: Applied to massive water-circulation and heat-rejection infrastructure that operates at low rotational speeds.
Cooling Tower Fan Assemblies: Measures structural casing vibration on large, low-speed fans used to dissipate heat in industrial processes.

Frequently Asked Questions (FAQ)

Q:What is the proper installation torque?
A:The recommended mounting torque is 4.5 N-m ± 0.6 N-m (40 in-lbf ± 5 in-lbf) onto a smooth, flat mounting surface with a minimum diameter of 33 mm (1.3 in).
Q:What type of cabling and connector does it require?
A:It features a 2-pin MIL-C-5015 top connector interface. It connects using a twisted, shielded two-wire cable (such as 20 AWG with a splash-proof locking ring). Pin A serves as the positive terminal and Pin B as the negative terminal.

Q:How does the "CT" version differ from a standard Velomitor?
A:The CT version is a low-frequency optimized sensor. A standard 330500 Velomitor filters out very low speeds, whereas the 190501 tracks lower frequencies down to 1.5 Hz or 3.0 Hz to detect imbalances in massive, slow-moving fan blades.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number：190501-02-00-04
Mounting Hardware Option	Stud 3/8-in 24 to 1/2-in 20
Connection Option	MIL-C-5015 connection interface
Sensitivity	3.94 mV/mm/s (100 mV/in/s) ±5%
Temperature Sensitivity	-8% to +5% typical over the operating temperature range
Transverse Response	Less than 5% of the axial sensitivity
Output Bias Voltage	10.1 Vdc ± 1.0 Vdc, Pin A referenced to Pin B
Dynamic Output Impedance	<400 Ω typical
Operating Temperature	-40°C to +85°C (-40°F to +185°F)
Storage Temperature	-40°C to +100°C (-40°F to +212°F)
