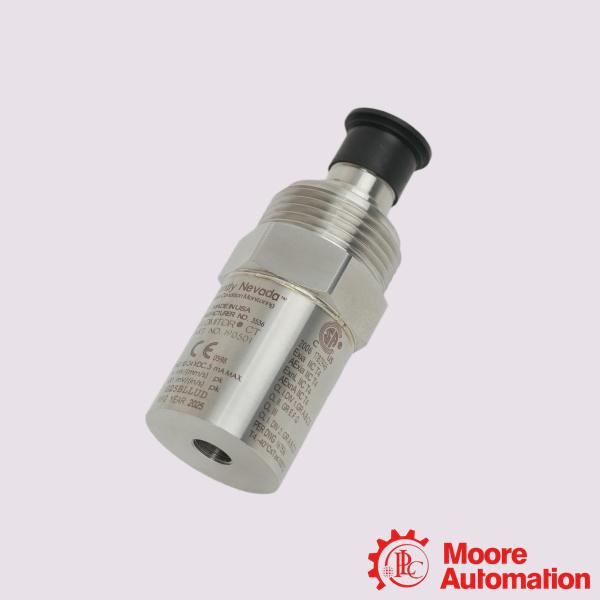

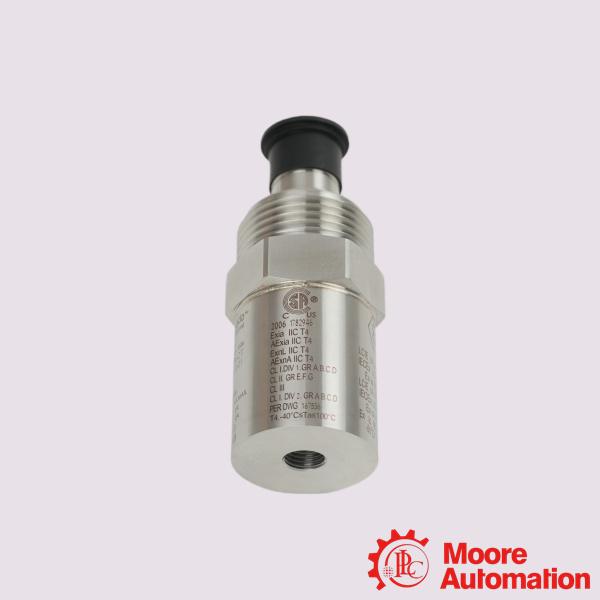

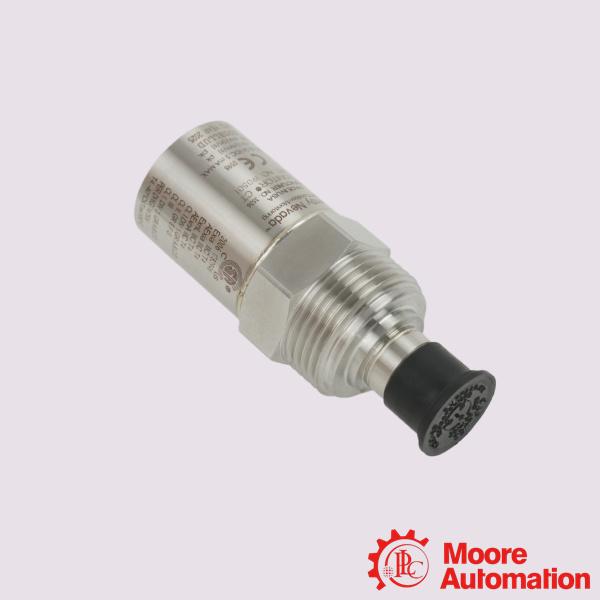

190501-00-99-01 | Bently Nevada Velomitor CT Velocity Transducer

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
8.3x3.5x3.2cm
Weight:
0.3kg
Country of Origin: :
USA
Description:
Bently Nevada 190501-00-99-01 Velomitor CT Velocity Transducer

Inquiry now

Mfr. Part Number:	190501-00-99-01

Manufacturer:	Bently Nevada

Description:	Bently Nevada 190501-00-99-01 Velomitor CT Velocity Transducer

Full Description:	The Velomitor CT Velocity Transducer is a low-frequency version of our standard Velomitor Piezo-velocity Sensor.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The 190501-00-99-01 is a specific configuration of the Bently Nevada Velomitor CT (cooling tower) velocity sensor. This is a low-frequency vibration sensor primarily used to monitor the casing vibration of cooling tower fans and air-cooled heat exchangers. The Velomitor CT velocity sensor is a low-frequency version of the standard Velomitor piezoelectric velocity sensor. It is specifically designed to measure the casing vibration velocity of cooling tower and air-cooled heat exchanger fan assemblies, which typically operate at 90 rpm and above (typical speeds are 100 to 300 rpm). The Velomitor CT sensor can measure not only the vibration amplitude within this speed range but also the vibration frequency generated by the fan motor and reducer.

Application:

Cooling Towers: Primarily utilized across heavy industries to monitor structural and casing vibrations on large, slow-moving cooling tower fan blades and drive systems
Industrial Wastewater Treatment: Used on low-speed aerators, large mixing fans, and secondary cooling equipment.
Petrochemical and Refining: Protecting critical heat rejection systems and cooling loops where explosive or hazardous environment certifications are mandatory.
Power Generation Facilities: Employed in standard plant cooling water systems, including coal-fired and combined-cycle thermal utilities.

Frequently Asked Questions (FAQ)

Q:What is the maximum velocity range?
A:63.5 mm/s peak (2.5 in/s peak). Note that high-frequency vibration components exceeding 10g peak above 1 kHz can reduce this operational limit.
Q:Can the Velomitor CT be mounted in any orientation?
A:Yes. It functions reliably when installed vertically, horizontally, or at an angle.

Q:Is the sensor casing electrically isolated?
A:Yes. The internal electronics are completely isolated from the 316L stainless steel case housing to prevent ground loops.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number：190501-00-99-01
Mounting Hardware Option	No stud
Connection Option	Unit with included 32-foot cable
Sensitivity	3.94 mV/mm/s (100 mV/in/s) ±5%
Temperature Sensitivity	-8% to +5% typical over the operating temperature range
Transverse Response	Less than 5% of the axial sensitivity
Dynamic Output Impedance	<400 Ω typical
Base Strain Sensitivity	0.43 mm/s/μstrain (0.017 in/s/μstrain)
Operating Temperature	-40°C to +85°C (-40°F to +185°F)
Storage Temperature	-40°C to +100°C (-40°F to +212°F)
