in stock#
Brand/ Manufacturer:
Bently NevadaDimensions:
34x32x3cmWeight:
0.8kgCountry of Origin: :
USADescription:
Bently Nevada 16710-34 177230-02-01-05 Seismic Transmitter
| Mfr. Part Number: |
16710-34 177230-02-01-05 |
| Manufacturer: |
Bently Nevada |
| Description: |
|
| Full Description: |
The 177230 Seismic Transmitter is a simple, loop-powered device that can be quickly and easily installed. |
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:

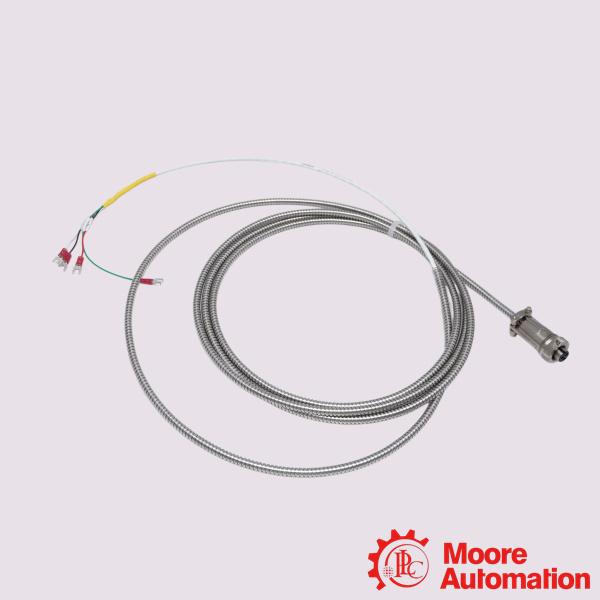

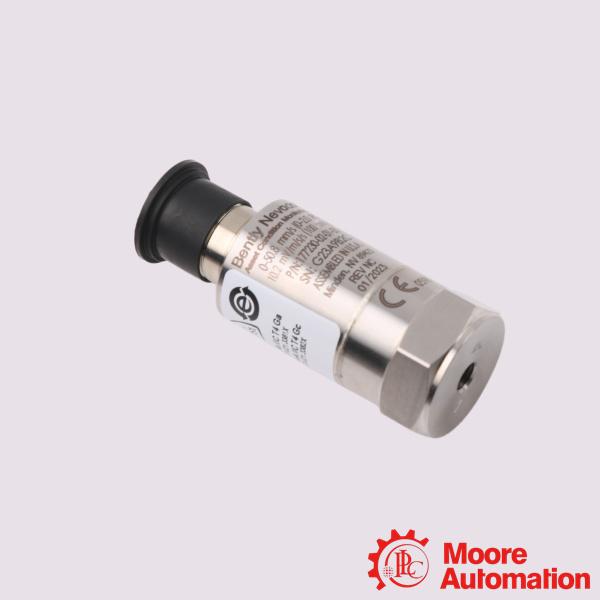

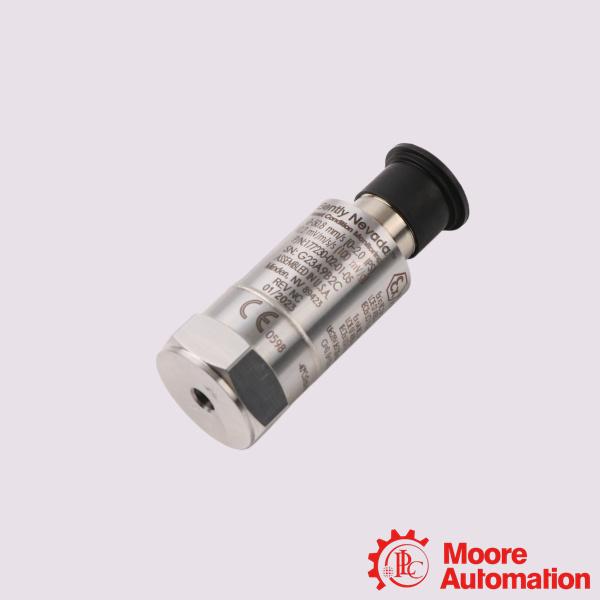

The Bently Nevada 177230-02-01-05 is a loop-powered seismic transmitter to monitor vibration on non-critical rotating machinery, paired with the 16710-34 armored interconnect cable. This hardware combination converts case velocity vibration into an industry-standard 4–20 mA analog signal, allowing direct integration into PLCs, DCSs, or SCADA control systems without requiring a dedicated rack system.The 177230 Seismic Transmitter is a simple, loop-powered device that can be quickly and easily installed. It can be
integrated into your programmable logic controller (PLC) or controls system linked to a plant asset condition monitoring solution. Its simple design reduces training, maintenance, and service costs.
Application:
Oil & Gas / Petrochemical: Installed on secondary assets like transfer pumps, lubrication skid motors, and auxiliary gas compressors in refineries and processing plants.
Power Generation: Used for general vibration telemetry on balance-of-plant machinery, including draft fans, water distribution pumps, and coal mill secondary gear setups.
Water & Wastewater: Safeguards heavy-duty raw water intake pumps, high-pressure distribution pumps, and large aeration tanks.
Pulp, Paper, & Steel Mills: Monitors critical conveyor drive motors, exhaust fans, and secondary rollers where sudden mechanical damage could halt assembly line operations.
Frequently Asked Questions (FAQ)
Q:What happens if the current drops below 4 mA?
A:A reading below 4 mA (such as 0 mA or 2 mA) typically indicates a broken wire, loose terminal link, a cut in the 16710-34 cable, or complete loss of loop power.
Q:Why does the sensor show a massive vibration spike at motor startup?
A:This is normal behavior caused by high electrical inrush current and sudden structural deflection as the asset spins up. If the signal drops to normal levels once the machine reaches its steady operational speed, the transmitter is functioning properly.
Q:How can I prevent electrical noise in the data?
A:Use the 16710 armored shielded cable and route it away from high-voltage power lines or large electric motors. Apply dielectric grease to the connectors to keep out moisture.
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：16710-34 177230-02-01-05 |
|
Measurement Range |
0 – 50.8 mm/s (0 – 2.0 in/s) |
|
Frequency |
10 Hz to 1 kHz (600 to 60 kcps) RMS (Root Mean Square) |
|
Length in feet |
34 feet |
|
Excitation Voltage |
12 to 30 Vdc (Current limited to 40 mA) |
|
Settling Time |
Less than 15 seconds within 2% of final value |
|
Output Signal |
4 to 20 mA Current Loop from Pin A to Pin B |
|
Full Scale Range |
147 m/s2 ( 15 g) peak |
|
Operating Temperature |
-40°C to +85°C (-40°F to +185°F) |
|
Approvals |
Multiple Approvals (CSA/NRTL/C, ATEX/IECEx) |
|
