in stock#
Brand/ Manufacturer:
Bently NevadaDimensions:
27x27x3cmWeight:
0.62kgCountry of Origin: :
USADescription:
Bently Nevada 16710-25 177230-02-01-05 Seismic Transmitter
| Mfr. Part Number: |
16710-25 177230-02-01-05 |
| Manufacturer: |
Bently Nevada |
| Description: |
|
| Full Description: |
The 177230 Seismic Transmitter is a simple, loop-powered device that can be quickly and easily installed. |
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:

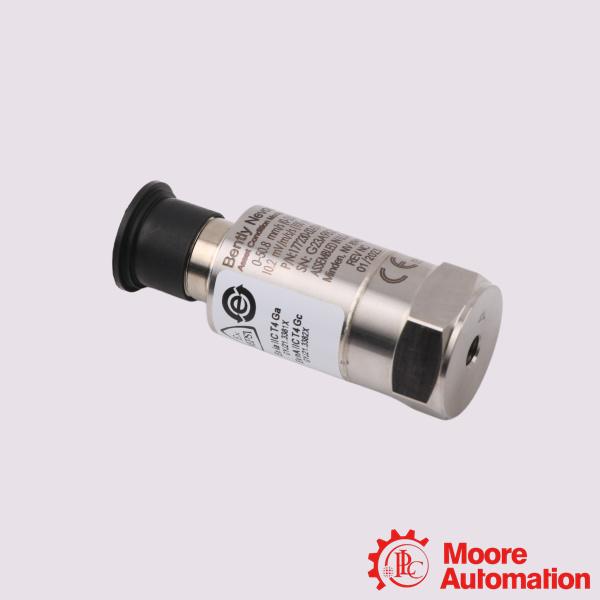

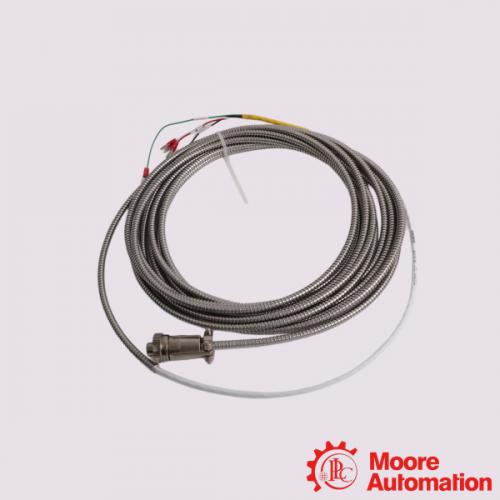

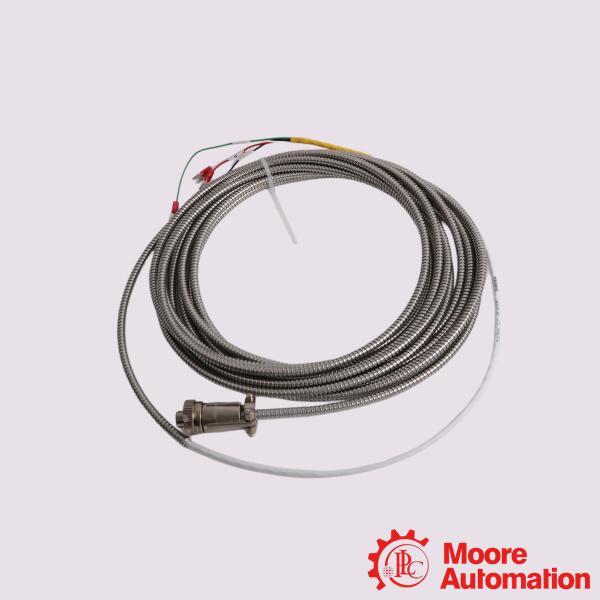

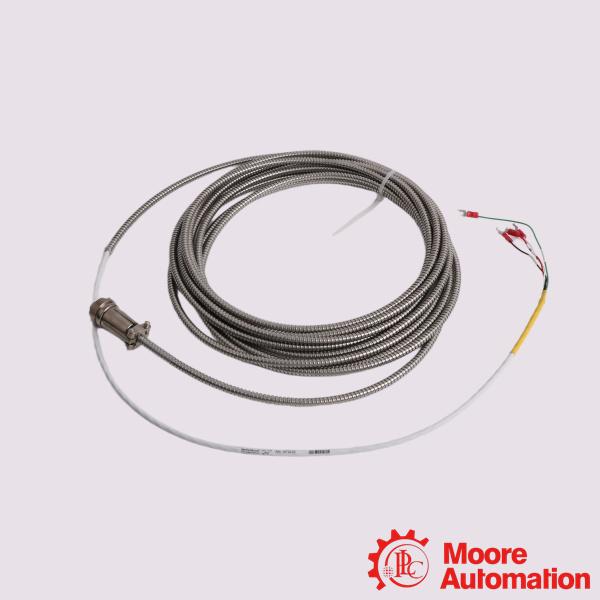

The Bently Nevada 177230-02-01-05 is a loop-powered seismic vibration transmitter, while the 16710-25 is a 25-foot armored interconnect cable. They work together to monitor the vibration of non-critical industrial machinery like motors, pumps, and fans.The 177230 Seismic Transmitter is a simple, loop-powered device that can be quickly and easily installed. It can be integrated into your programmable logic controller (PLC) or controls system linked to a plant asset condition monitoring solution. Its simple design reduces training, maintenance, and service costs. The transducer helps you better manage downtime, optimize maintenance planning, and avoid unforeseen catastrophic failures of machinery assets.
Application:
Water and Wastewater Treatment: Safeguards high-duty water distribution pumps, intake pumps, wastewater treatment agitators, and large aeration fans by detecting casing vibration, structural looseness, and rolling-element bearing degradation.
Power Generation Facilities: Monitors balance-of-plant (BOP) auxiliary systems, including mid-sized cooling water pumps, draft fans (FD/ID), ventilation blowers, and lubrication skid motors.
Oil & Gas and Petrochemical Plants: Tracks mechanical imbalances, unbalance, and initial faults on secondary electric motors, transfer pumps handling fluids/chemical feeds, and auxiliary utility units.
Pulp, Paper, and Steel Mills: Oversees heavy-duty exhaust fans, process pumps, conveyor drive motors, and secondary rollers where sudden bearing failure can halt entire assembly lines.
Frequently Asked Questions (FAQ)
Q:What signal format does this transmitter output?
A:It outputs a standard 4–20 mA current loop signal through its primary loop. The 4 mA signal represents 0 mm/s (no vibration), and the maximum 20 mA signal represents the full scale of 50.8 mm/s.
Q:Does it provide a raw, real-time vibration waveform?
A:Yes. The transmitter features an unbuffered dynamic signal output on Pin C. This outputs a raw voltage signal rated at 100 mV/g, allowing diagnostics teams to hook up portable data collectors for detailed spectral analys
Q:What are the power requirements?
A:The module is loop-powered and requires an excitation voltage between 12 to 30 VDC. The connected PLC, DCS, or SCADA input channel must be current-limited to a range of 30 mA to 40 mA.
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：16710-25 177230-02-01-05 |
|
Measurement Range |
0 – 50.8 mm/s (0 – 2.0 in/s) |
|
Frequency |
10 Hz to 1 kHz (600 to 60 kcps) RMS (Root Mean Square) |
|
Length in feet |
25 feet |
|
Excitation Voltage |
12 to 30 Vdc (Current limited to 40 mA) |
|
Settling Time |
Less than 15 seconds within 2% of final value |
|
Output Signal |
4 to 20 mA Current Loop from Pin A to Pin B |
|
Full Scale Range |
147 m/s2 ( 15 g) peak |
|
Operating Temperature |
-40°C to +85°C (-40°F to +185°F) |
|
Approvals |
Multiple Approvals (CSA/NRTL/C, ATEX/IECEx) |
|
