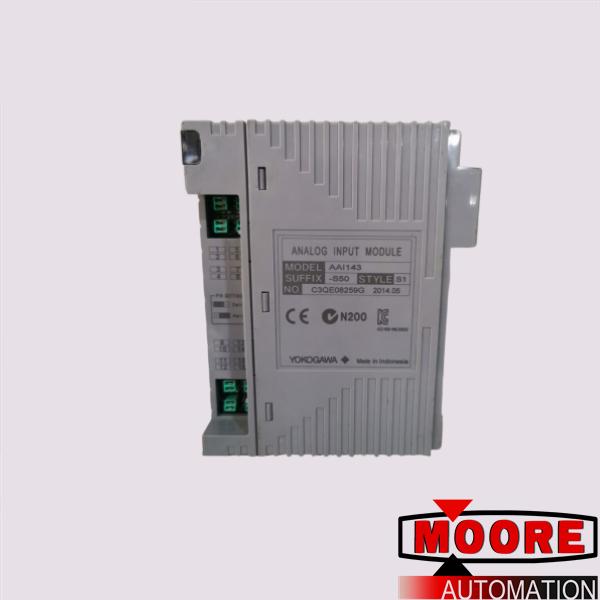

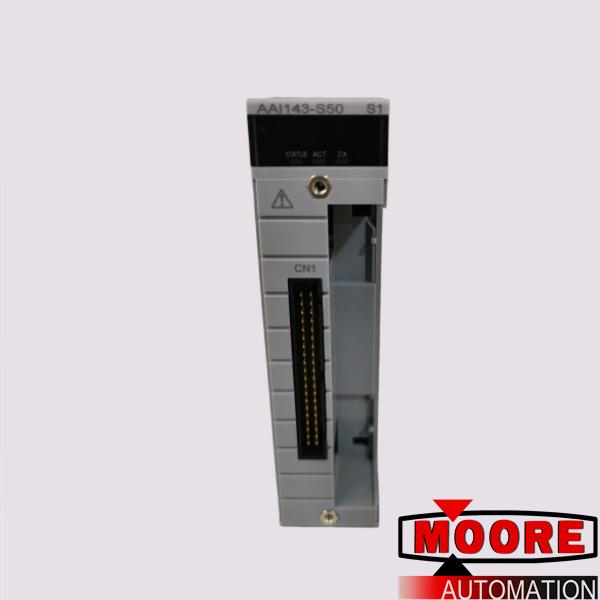

YOKOGAWA AAI143-S50 S1

Brand/ Manufacturer:
YOKOGAWA
Dimensions:
3.2cm*10.7cm*13cm
Weight:
0.32kg
Country of Origin: :
United States
Description:
Analog output module

Inquiry now

Mfr. Part Number:	AAI143-S50 S1

Manufacturer:	YOKOGAWA

Description:	These modules provide 16 inputs of mainly 4 to 20 mA DC or 1 to 5 V DC standardized signals from 2-wire/4-wire transmitters

Full Description:	AAI143 Analog Input Module (4 to 20 mA, 16-Channel, Isolated)

Sales manager: Tiffany Guan plcsale@mooreplc.com + 86 18030235313 dddemi33 2851195473

Product:

Yokogawa | AAI143-H00 | 16 Point Analog Input Module - HART | Basic Type with HART Communication. Photo is representative and not actual product.

Items	Specifications
Model	AAI143 (*1)
Number of input channels	16, isolated
Input signal	4 to 20 mA
Allowable input current	24 mA
Input resistance	Power ON 270 Ω (20 mA) to 350 Ω (4 mA) (*2)
Input resistance	Power OFF 500 kΩ or larger
Accuracy	±16 μA
Data update period	10 ms
Transmitter power supply	19.0 V or higher (at 20 mA) 25.5 V or less (at 0 mA) (output current limit: 25 mA) (*5)
Setting of 2-wire or 4-wire transmitter	For each channel by setting pin
Drift due to ambient temperature change	±16 μA/10 C
Maximum current consumption	230 mA (5 V DC), 540 mA (24 V DC)
Weight	0.3 kg
External communication	Pressure clamp terminal, MIL connector cable, dedicated cable (KS1)
