VM600 CMC16 200-530-025-014 | VIBRO METER Condition Monitoring Card

in stock#

Brand/ Manufacturer:
VIBRO METER
Dimensions:
2x18.5x26.1cm
Weight:
0.32 kg
Country of Origin: :
Switzerland
Description:

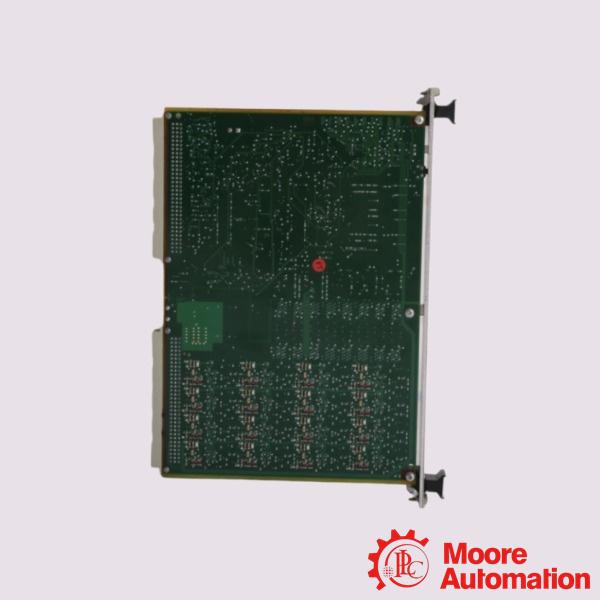

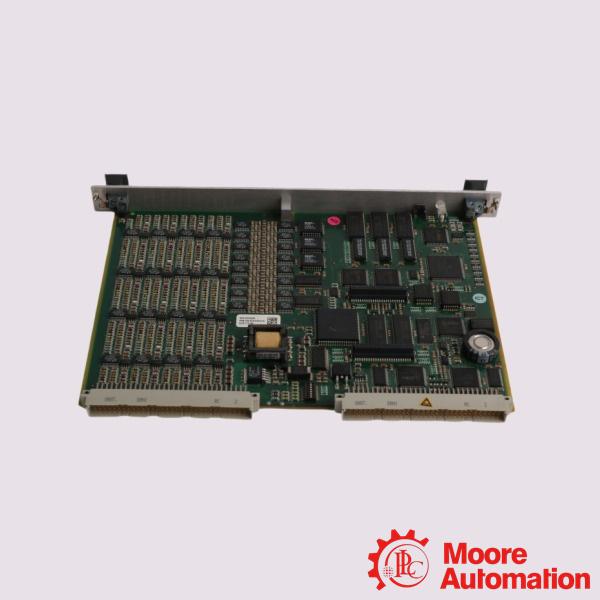

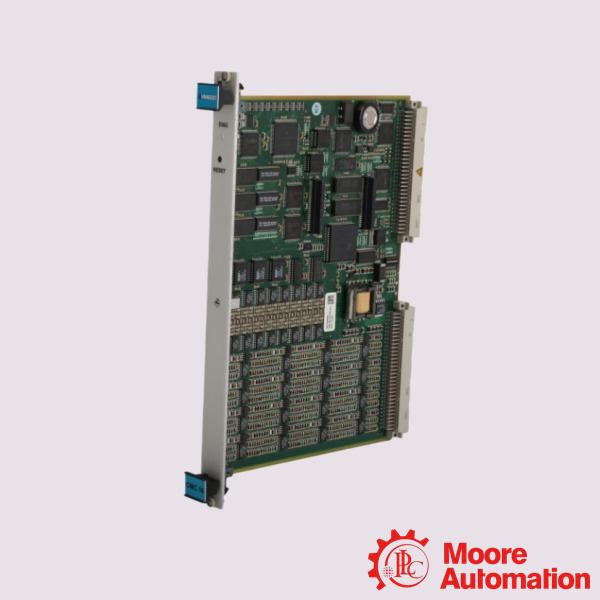

VIBRO METER VM600 CMC16 200-530-025-014 Condition Monitoring Card

Inquiry now

Mfr. Part Number:	VM600 CMC16 200-530-025-014

Manufacturer:	VIBRO METER

Description:	VIBRO METER VM600 CMC16 200-530-025-014 Condition Monitoring Card

Full Description:	The VIBRO METER VM600 CMC16 200-530-025-014 Condition Monitoring Card features 4 independent channels

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for VIBRO METER. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:
The VIBRO METER VM600 CMC16 200-530-025-014 Condition Monitoring Card are for operation with the VM600Mk2/VM600 rack-based machinery monitoring systems from Meggitt’s vibro-meter® product line. An XMx16 + XIO16T module consists of a processing module and an input/output (interface) module that provide 16 dynamic and 4 tachometer channels of machinery condition monitoring.

The VM600 CMC16 200-530-025-014 offers an excellent speed measurement resolution of 5 ns, enabling accurate detection and analysis of rotating machinery behavior under demanding operating conditions.It is equipped with a 200 Ω current measuring resistor and supports a tachometer voltage range from −20 to +20 VDC, allowing flexible integration with a wide variety of tachometer and sensor signal types.

Application:

Electricity and power generation industry: Traditional thermal power plants, combined cycle power plants, and nuclear power plants.
Oil and gas: Upstream oil production platforms, LNG transfer stations, and gas compressors and catalytic cracking units in downstream refineries.
Heavy industry and metallurgy: Steel mills, large blast furnaces in mining sites, rolling mills, crushers, and large fans.
Marine and rail transportation power: Heavy-duty diesel propulsion systems and key auxiliary machinery for ships, turbochargers.

Frequently Asked Questions (FAQ)

Q:What is the speed measurement range of the VIBRO METER VM600 CMC16 200-530-025-014?
A:The speed measurement range of the VIBRO METER VM600 CMC16 200-530-025-014 is 1 to 100000 RPM (0.017 Hz to 1.667 kHz).

Q:What is the input impedance of the VIBRO METER VM600 CMC16 200-530-025-014?
A:The VIBRO METER VM600 CMC16 200-530-025-014 features an input impedance of ≥100 kΩ for stable signal acquisition.

Q:What is the crosstalk attenuation of the VIBRO METER VM600 CMC16 200-530-025-014?
A:The VIBRO METER VM600 CMC16 200-530-025-014 provides typical crosstalk attenuation of 80 dB.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number: VM600 CMC16 200-530-025-014
Number of independent channels	4
Speed measurement	1 to 100000 RPM (0.017 Hz to 1.667 kHz)
Speed measurement resolution	5 ns
Current measuring resistor	200 Ω
Tachometer voltage range	−20 to +20 VDC
Tachometer current range	−30 to +30 mA
Input impedance	≥100 kΩ
Range of DC component	−20 to +20 V
Maximum common mode voltage	±50 V
A/D converter	24 bit
Maximum sampling rate	98 kHz
Crosstalk attenuation	Typically 80 dB
Operating Temperature	0 to 65°C (32 to 149°F)
Storage Temperature	−40 to 85°C (−40 to 185°F)
Operating Humidity	0 to 90% relative humidity
