Product Description:

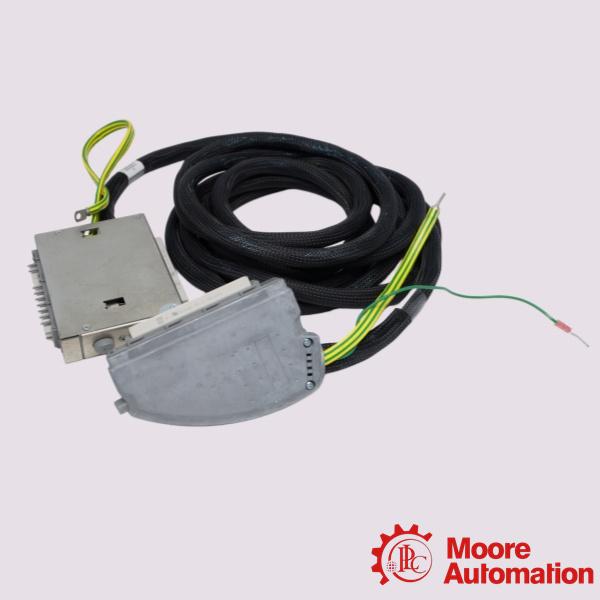

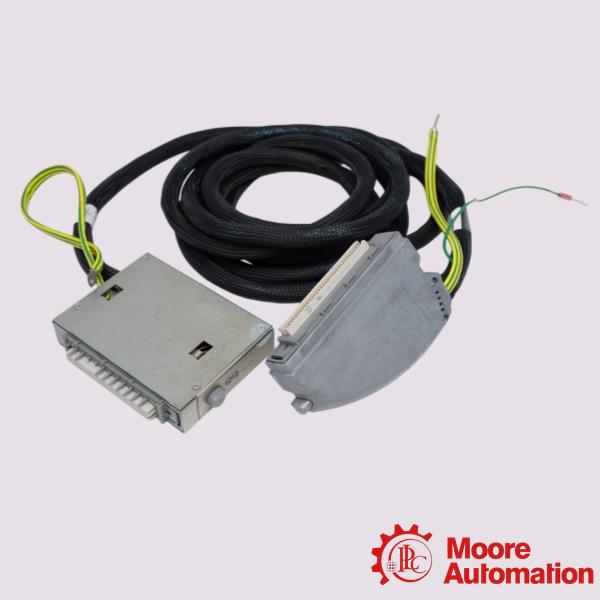

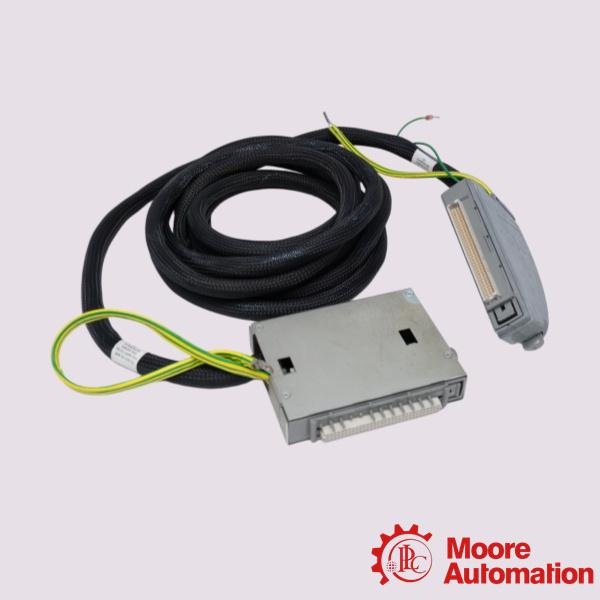

The TC-801-02-4M5 Trusted I/O Companion Slot Cable is designed for use with the T8442 Speed Monitor module and is required for connections to a T8846 Speed Input FTA and up to three T8891 Speed Output FTAs. Both the -02 and -03 versions of this cable are internal, low smoke zero halogen types, and there is no SmartSlot version available. The chassis end of the multi-core cable is fitted with a 96-way type ‘C’ connector housed in a double-width hood. The opposite ends of the cable are fitted with six 20-way screw-fit 3.5 mm pitch female header connectors; three connectors interface with the T8846, while one connector is assigned to each T8891. The cable is only available with three T8891 tails in the arrangement shown in the figure above.

The TC-801-02-4M5 cables are assembled from individual cores and screened twisted pairs, shrouded in nylon Megamide sheathing. The ends of the sheathing are fitted with heat-shrink sleeving to help prevent fraying. At the chassis end, a sheathed braid allows the connector hood to be wired to safety earth.

Application:

Gas Turbine Monitoring Systems: Used for connecting speed monitoring modules to field termination assemblies in turbine protection and overspeed monitoring systems within power generation facilities.
Steam Turbine Control Cabinets: Applied in rotating machinery control panels for transmitting speed input and output signals between monitoring equipment and FTAs.
Compressor Protection Systems: Utilized in industrial compressor monitoring systems for reliable signal routing in critical process environments.
Petrochemical Processing Plants: Installed in high-availability process control systems requiring screened twisted-pair signal connections for machinery safety monitoring.

Frequently Asked Questions (FAQ)

Q: Does TC-801-02-4M5 support shielded signal transmission for noise-sensitive environments?
A: Yes, the cable incorporates screened twisted pairs to help reduce electromagnetic interference in industrial applications.

Q: What type of field connections are provided on the remote end of TC-801-02-4M5?
A: The cable is equipped with six 20-way screw-fit female header connectors with a 3.5 mm pitch configuration.

Q: Can TC-801-02-4M5 be used in machinery monitoring systems with multiple output interfaces?
A: Yes, the cable configuration supports connections for multiple speed output interfaces within a single assembly layout.
