TC-301-02-2M5 | ICS TRIPLEX Local Expansion Cable

Description

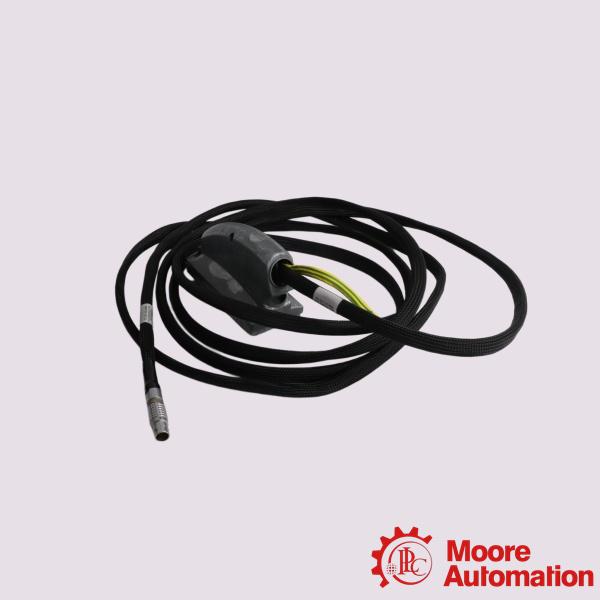

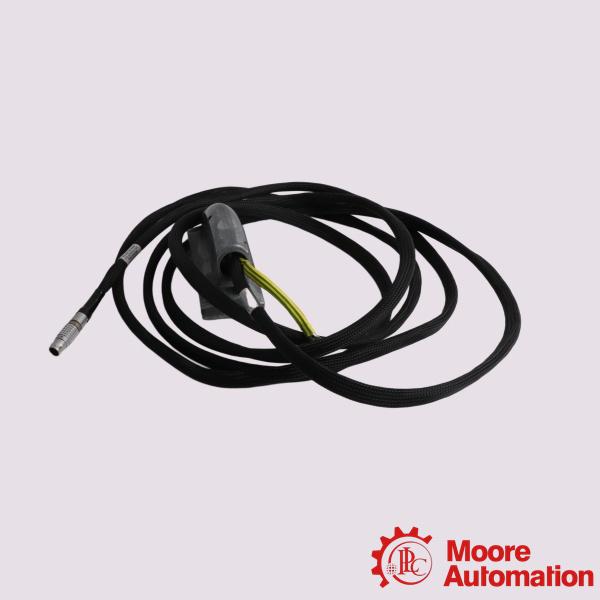

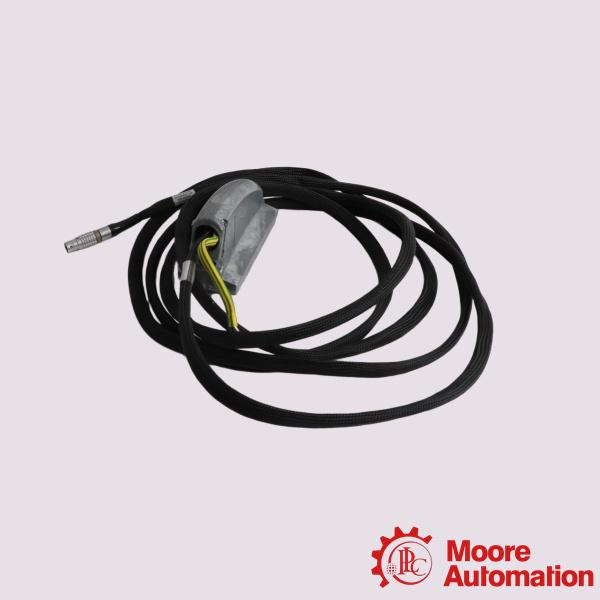

The ICS Triplex TC-301-02-2M5 Local Expansion Cable is a Trusted® system communication cable designed for use within the ICS Triplex Trusted™ Triple Modular Redundant (TMR) safety platform. It is specifically engineered to provide reliable local expansion communication between the Trusted TMR Expander Processor T8310 and the Expander Interface Adapter T8312. The cable ensures deterministic, high-integrity signal transmission in safety-critical industrial automation applications where redundancy, fault tolerance, and continuous operation are essential.The cable assembly uses industrial-grade screened Cat 6 Plus cable construction with a low-smoke zero-halogen (LSZH) sheath to improve electromagnetic compatibility and fire safety performance in hazardous environments. The Expander Processor side is equipped with a 96-way Type-C connector housed in a double-width hood with integrated earth braid shielding, while the adapter side uses a precision 12-way LEMO connector for secure and vibration-resistant operation.

Parameter

Cable Length: 2.5 meters
Flame Retardancy: IEC 60332-3 Category A
Connector at Adapter End: 12-way LEMO plug
Bend Radius: Minimum 4 × cable diameter
Maximum Supported Expansion Distance: 30 meters
Connector at Processor End: 96-way Type ‘C’ connector

Application areas:
Power Generation: Supports turbine control, boiler protection, and distributed control system (DCS) expansion in power plants.

Oil & Gas: Used in safety instrumented systems (SIS) and emergency shutdown systems to ensure reliable communication between redundant control modules.

Chemical & Petrochemical Plants: Provides stable and fault-tolerant data transmission for hazardous process automation environments.

Industrial Automation: Enables local expansion connectivity between Trusted™ TMR processors and interface adapters in large-scale automation systems.

Frequently asked questions

What is the cable length of the ICS Triplex TC-301-02-2M5 Local Expansion Cable?
The ICS Triplex TC-301-02-2M5 Local Expansion Cable has a total cable length of 2.5 meters.

What fire safety cable sheath is included with the ICS Triplex TC-301-02-2M5 Local Expansion Cable?
The ICS Triplex TC-301-02-2M5 Local Expansion Cable includes a low-smoke zero-halogen sheath.

Does the ICS Triplex TC-301-02-2M5 Local Expansion Cable use screened wiring construction?
Yes, the ICS Triplex TC-301-02-2M5 Local Expansion Cable uses screened wiring construction for signal transmission.
