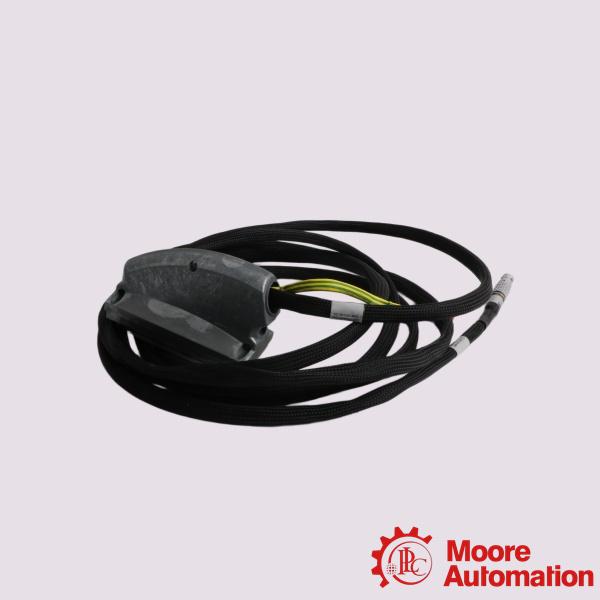

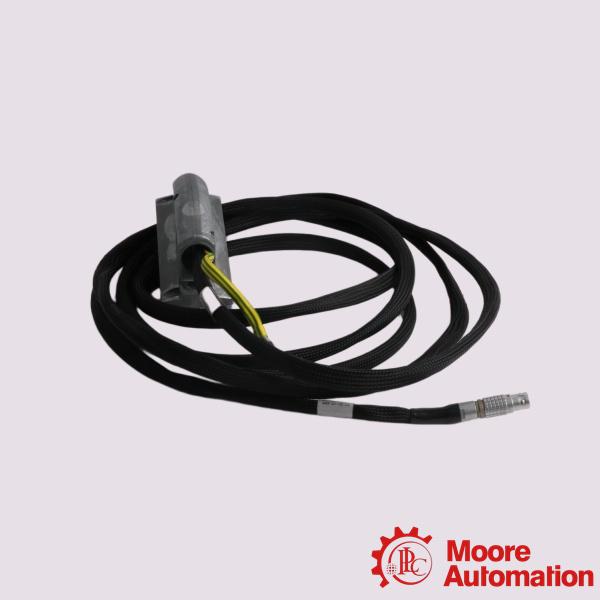

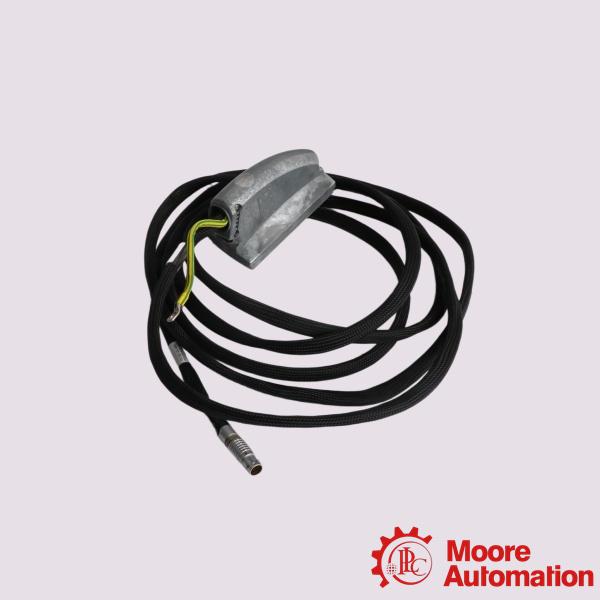

TC-301-02-15M0 | ICS TRIPLEX Local Expansion Cable

Description

The ICS Triplex TC-301-02-15M0 Local Expansion Cable is a high-integrity communication cable specifically designed for use within the Trusted™ Triple Modular Redundant (TMR) safety system developed by ICS Triplex / Rockwell Automation. The cable is used to establish reliable local expansion bus communication between the Trusted Expander Interface Adapter T8312 and the Trusted TMR Expander Processor T8310, enabling deterministic and fault-tolerant data transmission for safety-critical industrial control applications.The “15M0” designation indicates a cable length of 15.0 meters, making the cable suitable for extended cabinet-to-cabinet or chassis-to-chassis local expansion connections within large-scale industrial automation systems. The TC-301-02 series uses Low Smoke Zero Halogen (LSZH) flame-retardant cable construction compliant with IEC 60332-3 Category A requirements for enhanced safety in hazardous and mission-critical environments.

Parameter

Cable Length: 15.0 meters
Flame Retardancy: IEC 60332-3 Category A
Maximum Supported Cable Length: 30 m
Minimum Bend Radius: 4 × cable diameter
Connector Type (Adapter End): 12-way LEMO connector
Connector Type (Processor End): 96-way Type-C connector

Application areas:
Refining Facilities: Used to maintain secure and uninterrupted communication for refinery process automation and plant protection systems.

Oil & Gas: Used in safety-critical process control systems to ensure reliable communication between redundant control chassis in upstream, midstream, and downstream operations.

Industrial Automation: Supports high-availability control architectures in mission-critical manufacturing and heavy industrial operations.

Water & Wastewater Treatment: Facilitates reliable safety and monitoring system expansion in large-scale municipal and industrial treatment plants.

Frequently asked questions

What is the cable length of the ICS Triplex TC-301-02-15M0 Local Expansion Cable?
The ICS Triplex TC-301-02-15M0 Local Expansion Cable has a total cable length of 15.0 meters.

What connector is used on the adapter side of the ICS Triplex TC-301-02-15M0 Local Expansion Cable?
The adapter side of the ICS Triplex TC-301-02-15M0 Local Expansion Cable uses a 12-way LEMO connector.

Does the ICS Triplex TC-301-02-15M0 Local Expansion Cable support local expansion bus communication?
Yes, the ICS Triplex TC-301-02-15M0 Local Expansion Cable supports local expansion bus communication within the Trusted™ platform.
