TC-215-02-8M5 | ICS TRIPLEX I/O Companion Slot Cable

Description

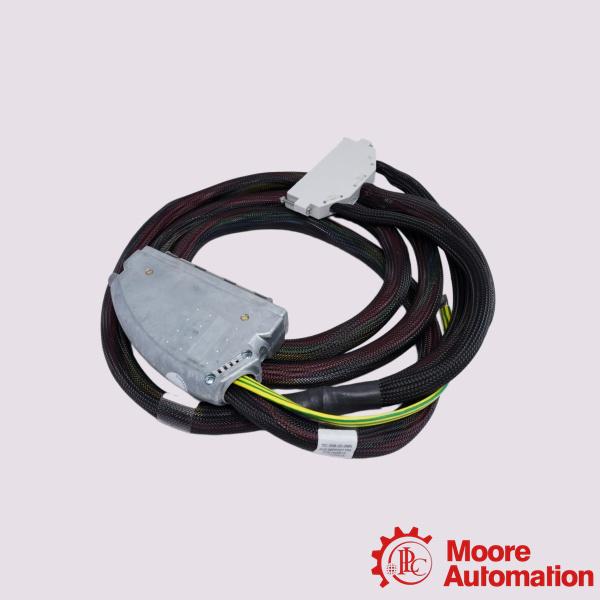

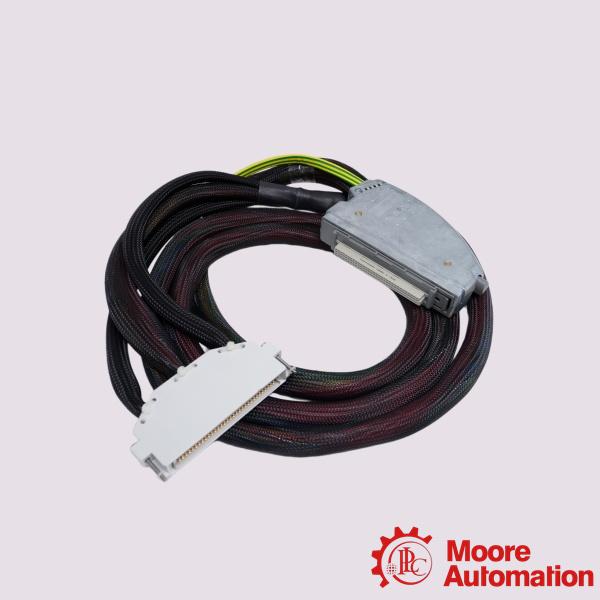

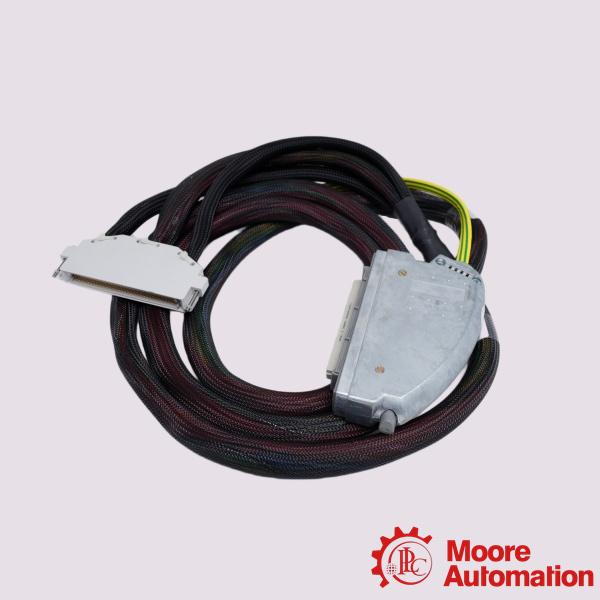

The TC-215-02-8M5 features an internal companion slot configuration optimized for adjacent cabinet installations using double-width chassis sockets. Its integral power distribution architecture simplifies field wiring by combining signal transmission and field power routing into a single cable assembly. The design incorporates three dedicated multi-core cable groups for output signals, field power supply, and return power connections, significantly reducing installation complexity while improving system reliability and maintenance efficiency.At the chassis end, the cable assembly utilizes dual 96-way Type-C connectors housed within a double-width hood, while the FTA side employs a 96-way Type-R connector for secure interface connection. Additional integrated connectors include a 5-way BLZF 3.5 connector for field power return termination and a 6-way AMP plug for power distribution from T8290 or T8297 Output Power Distribution Units. The cable also incorporates 2.5 mm² power conductors to support stable power transmission in demanding industrial environments.

Parameter

Cable Function: 40-Channel Output to FTA
Connector Type (Chassis End): Dual 96-way Type-C connectors in double-width hood
Multi-core Cable Quantity: 3 Multi-core Cables
Field Power Return Connector: 5-way BLZF 3.5 connector
Flame Retardancy: IEC 60332-3 Category A

Application areas:
Power Generation: Supports high-availability turbine control, boiler protection, and plant automation systems in thermal and nuclear power facilities.

Oil & Gas: Used in safety instrumented systems (SIS) and emergency shutdown (ESD) applications for reliable signal transmission between control modules and field devices.

Petrochemical  Plants: Provides high-integrity output channel connectivity for hazardous-area process monitoring and control systems.

Refinery Automation: Widely applied in distributed control and shutdown systems where stable 40-channel output transmission is essential.

Frequently asked questions

Which connector type is used at the chassis end of the ICS TRIPLEX TC-215-02-8M5?
The ICS TRIPLEX TC-215-02-8M5 uses dual 96-way Type-C connectors mounted in a double-width hood.

Does the ICS TRIPLEX TC-215-02-8M5 include integral power distribution?
Yes, the ICS TRIPLEX TC-215-02-8M5 integrates signal transmission and field power distribution within one cable assembly.

What connector is used for field power return on the ICS TRIPLEX TC-215-02-8M5?
The ICS TRIPLEX TC-215-02-8M5 uses a 5-way BLZF 3.5 connector for field power return termination.
