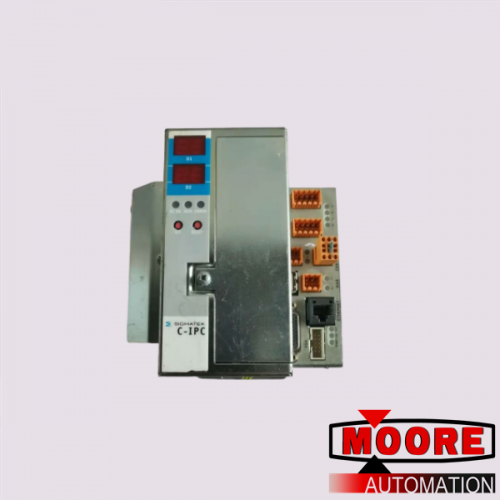

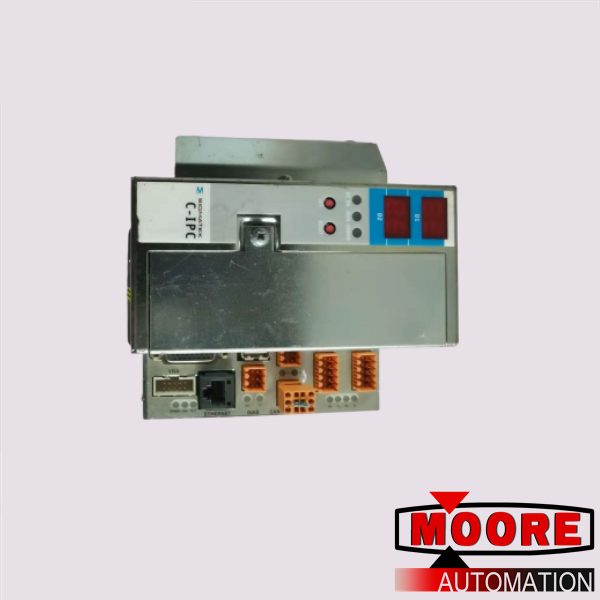

SIGMATEK C-IPC 152 1GB Celeron M440 01-450-152-D

Brand/ Manufacturer:
SIGMATEK
Dimensions:
12.5cm*10.4cm*7.5cm
Weight:
0.3kg
Country of Origin: :
USA
Description:
INTEL Celeron M processor

Inquiry now

Mfr. Part Number:	C-IPC M440 01-450-152-D

Manufacturer:	SIGMATEK

Description:	The C-IPC is a C-DIAS industry PC with an INTEL Celeron M processor. A 7-segment display and three Status-LEDs provide information on the current status of the CPU
Full Description:	Two compact Flash cards can be used as program memory. The C-IPC also has an VGA interface for a display and an USB1.1 interface. In addition, an expansion card with further interface connections is available.

Status:	In stock ready to ship

Sales manager: Tiffany Guan plcsale@mooreplc.com + 86 18030235313 dddemi33 2851195473

Processor	INTEL Celeron M
Internal program memory (Compact Flash)	2x Compact Flash Type I or II
Internal program memory (SRAM)	256 Kbytes (battery powered)
Internal program memory (SDRAM)	1-Gbyte DDR2 RAM
Interfaces	1x Ethernet 10/100 Mbit
Optional interfaces on the expansion cards:	1x VARAN bus, 1x Ethernet, 1x TTY 20 mA interface
Data buffer	lithium battery
Status display	yes
Status LEDs	yes
Real-time clock	yes
Supply voltage	24 - 30 V DC
Supply voltage Current consumption	up to 5 A (depending on the external devices)
Starting current at +24 V	for a very short time (~5 ms) : 35 A
Available current for DIAS (+5 V)	maximum 1 A
Available current for C-DIAS (+5 V)	maximum 1.2 A
Storage temperature	-20 – +85 °C
Operating temperature	+5 - +50 °C
Max. Process temperature	+125 °C (automatic cut-off)
Humidity	0 - 95 %, non-condensing
EMC stability	According to EN 50082 section 2 (industry area)
