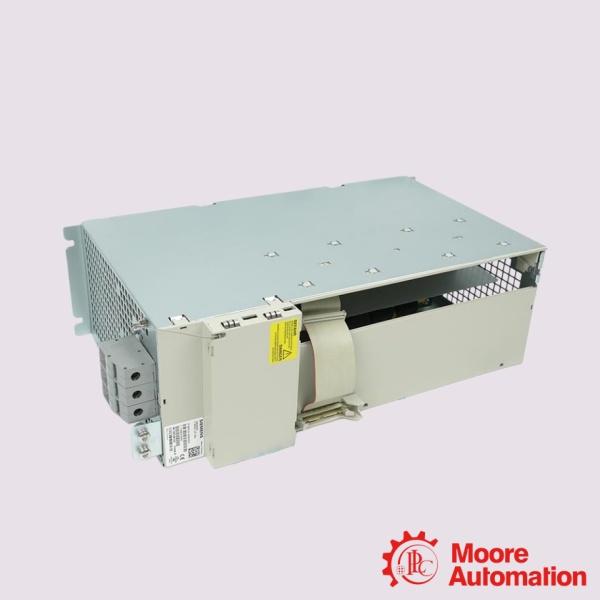

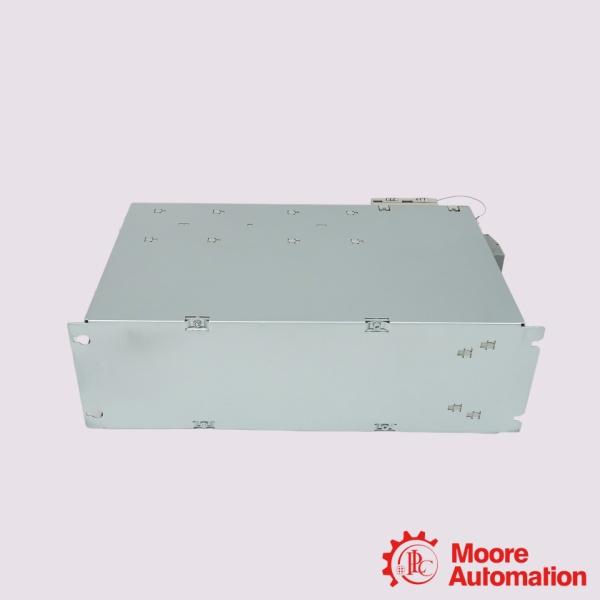

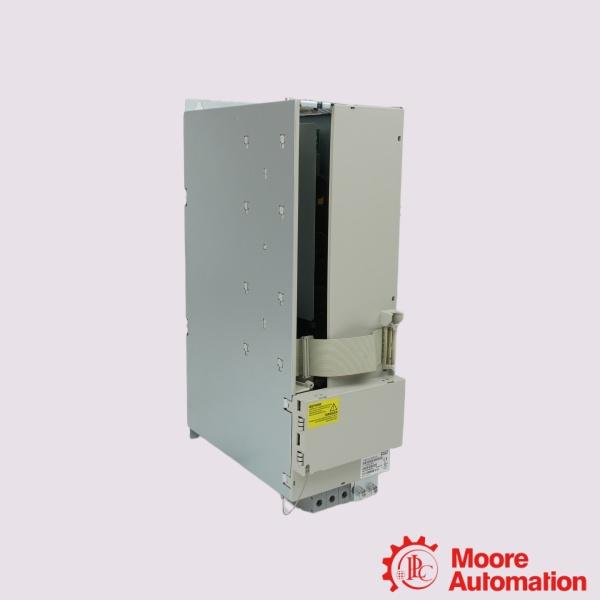

Siemens 6SN1123-1AA00-0JA1 SIMODRIVE 611 single-axis power module

Parameter
Model: 6SN1123-1AA00-0JA1 SIMODRIVE 611 single-axis power module
Module Current Frame Rating: 300 A (Designation index)
Main Spindle Rated Current: 120 A (For asynchronous/spindle motors)
Feed Drive Rated Current: 100 A (For synchronous servo motors)
DC Link Bus Voltage: 600 V DC (Nominal system bus voltage)
Operating Temperature: 0 °C to +40 °C (32 °F to 104 °F)
Module Width: 150 mm (Heavy-duty frame width)

Description

The Siemens 6SN1123-1AA00-0JA1 is a SIMODRIVE 611 single-axis Power Module designed for compatible SIMODRIVE 611 drive systems. It features a 300 A power module rating with internal cooling and requires an additional fan or hose cooling for operation. The module provides rated motor currents of 100 A for feed drives and 120 A for main spindle drives. Supplied as an original Siemens spare part, it is intended for use in SIMODRIVE 611 systems and for replacing compatible existing Power Modules.

Frequently asked questions

Q:What is the Siemens 6SN1123-1AA00-0JA1?
A:The 6SN1123-1AA00-0JA1 is a SIMODRIVE 611 single-axis Power Module supplied as a spare part. It features a 300 A power module rating, internal cooling, and is designed for compatible SIMODRIVE 611 drive systems.

Q:What are the rated motor currents of the 6SN1123-1AA00-0JA1?
A:The module provides a 100 A rated motor current for feed drives and a 120 A rated motor current for main spindle drives.

Q:What is the power module rating of the 6SN1123-1AA00-0JA1?

A:The module has a 300 A power module rating for use in compatible SIMODRIVE 611 systems.

Application areas

The Siemens 6SN1123-1AA00-0JA1 is specifically designed for heavy-duty cutting scenarios in heavy CNC machine tools, high-power cutting spindles, heavy-duty servo axes, and primary industrial machining centers. Its primary application areas include:

• Large CNC Vertical & Horizontal Lathes: Drives the main spindles of large-scale turning centers. It reliably supplies up to 120 A of current when rough-turning heavy castings and forgings (e.g., train wheels, massive industrial flanges) with deep cutting depths.
• Wind Turbine & Steam Turbine Rotor Machining: Acts as the primary drive force in specialized heavy CNC machine tools dedicated to processing wind generator main shafts and heavy steam turbine rotors.
• Large Gantry Double-Drive Axes: Synchronistically drives the multi-ton crossbeams or heavy gantry columns along their guide rails with highly dynamic position loop responses.
