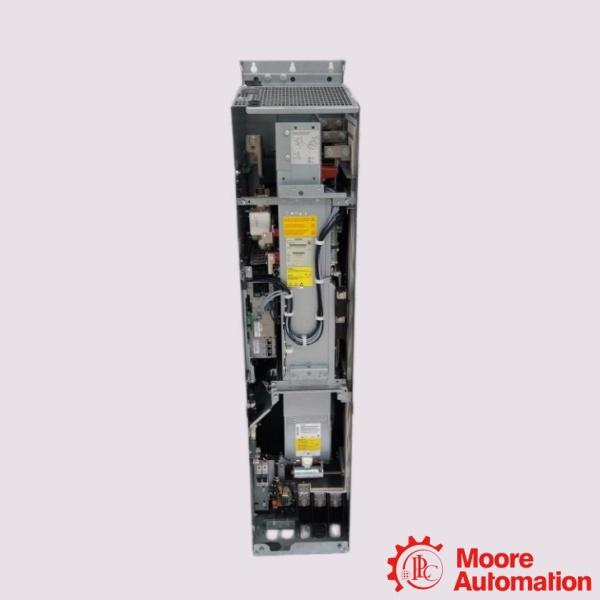

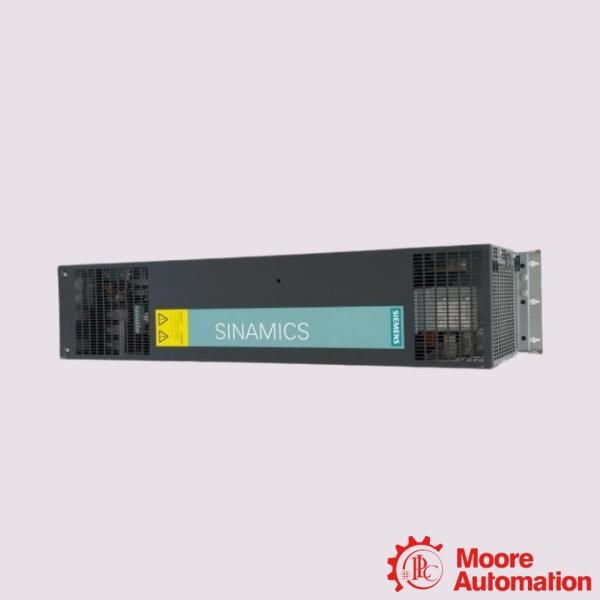

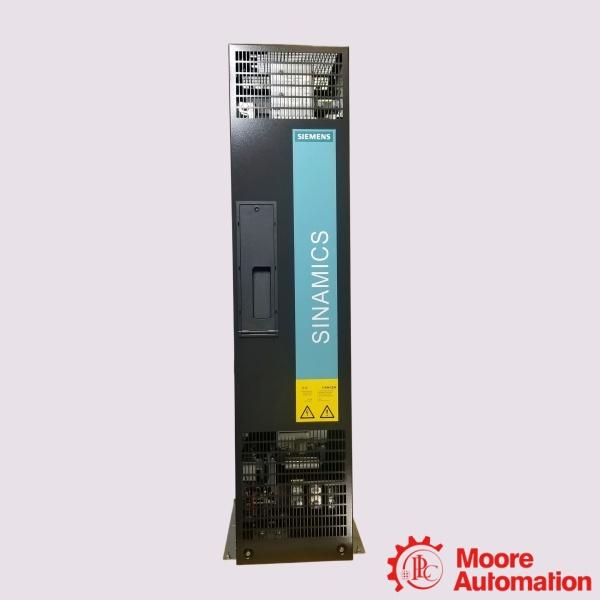

Siemens 6SL3310-1GE35-0AA3 SINAMICS G130 Power Module

Parameter

Model: 6SL3310-1GE35-0AA3 SINAMICS G130 Power Module
Line Voltage Supply: 3-phase AC 380 V-480 V (Standard)
Line Voltage Tolerance: -10% to +10%
Network Frequency: 47 Hz-63 Hz (50/60 Hz nominal)
Power Rating / Type Rating: 250 kW
Rated Output Current: 490 A
Pulse Frequency (Nominal/Filter): 4 kHz (supported with approved filter)
Ambient Operating Temperature: 0 °C to +40 °C (32 °F to 104 °F)
Standards Compliance: UL, CE

Description

The Siemens 6SL3310-1GE35-0AA3 is designed for use in SINAMICS G130 drive systems with a 380–480 V, three-phase AC supply. It provides a 490 A rated current and a 250 kW power rating in a 6-pulse configuration without power recovery. The power module features an IP20 enclosure, includes a Drive-CLiQ cable, and is intended for operation with a compatible SINAMICS control unit. When used with an approved SINAMICS G130 sine-wave filter, it supports an output current of 382 A at a 4 kHz pulse frequency, making it suitable for high-power industrial drive applications.

Frequently asked questions

What is the Siemens 6SL3310-1GE35-0AA3?
The 6SL3310-1GE35-0AA3 is a SINAMICS G130 Power Module designed for use in G130 drive systems. It operates on a 380–480 V AC, three-phase, 50/60 Hz supply and has a 250 kW type rating with a 490 A rated output current.

Does the 6SL3310-1GE35-0AA3 include a Control Unit?
No. This Power Module is supplied without a Control Unit and must be used with a compatible SINAMICS control unit.

What type of power supply does the module use?
The module is designed for a 380–480 V, three-phase AC, 50/60 Hz input supply and uses a 6-pulse rectifier configuration.

Application areas:
Boiler Feed Pumps: Meets the demanding requirements of continuous high-load operations, providing efficient boiler level regulation and significant energy savings.

Industrial ID / FD Fans: Controls Induced Draft (ID) and Forced Draft (FD) fans in cement kilns, steel blast furnaces, and power plant boilers, offering robust heavy-duty starting capabilities.

Heavy Hoists & Bucket Elevators: Delivers high dynamic torque at low speeds to reliably handle the vertical or inclined transport of bulk raw materials.
