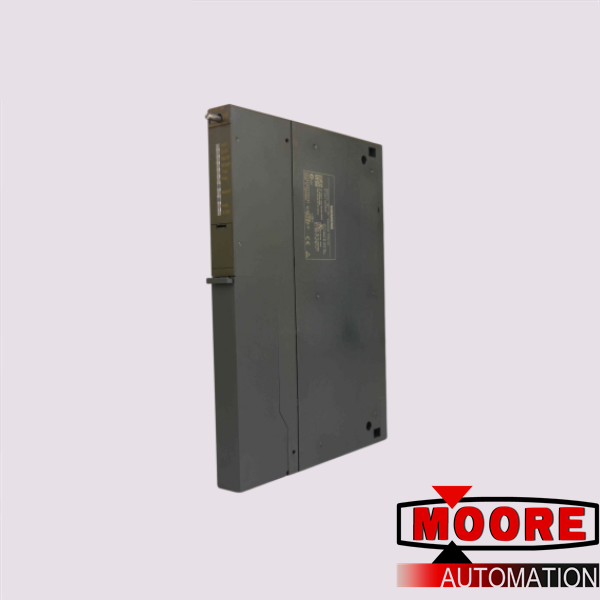

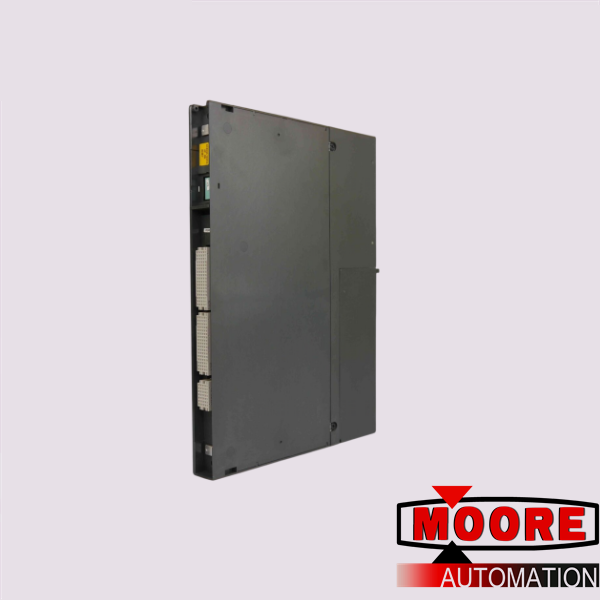

SIEMENS 6GK7443-1GX20-0XE0 Communication Processor Module

Brand/ Manufacturer:
Siemens
Dimensions:
12cm*11.3cm*8.2cm
Weight:
0.3kg
Country of Origin: :
Germany
Description:
Communication Processor Module

Inquiry now

Mfr. Part Number:	6GK7443-1GX20-0XE0

Manufacturer:	SIEMENS

Description:	Communications processor CP 443-1 Advanced for connection from SIMATIC S7-400 CPU to Industrial Ethernet: PROFINET IO Controller with RT and IRT MRP, PROFINET CBA, TCP/IP, ISO, UDP, S7 comm.

Full Description:	S5-compat. comm. (send/receive) fetch/write, with and without RFC1006, multicast, diagnostics extension, SNMP, DHCP, FTP client/server, email, data storage on C-plug, PROFINET interface 4x RJ45 (10/100 Mbit), Gigabit interface 1x RJ45 (10/100/1000 Mbit).


Status:	In stock ready to ship

plcsale@mooreplc.com +8618030235313 dddemi33 2851195473

transfer rate/at the 1st interface	10 ... 100 Mbit/s
number of interfaces	2
number of electrical connections	2
type of electrical connection	RJ45 port
design of the removable storage	No
type of voltage	DC
supply voltage	5 V
relative symmetrical tolerance	5 %
consumed current	1.4 A
power loss [W]	7.25 W
ambient temperature/during operation	0 ... 60 °C
ambient temperature/during storage	-40 ... +70 °C
ambient temperature/during transport	-40 ... +70 °C
protection class IP	IP20
module format	Compact module S7-400 single width
number of possible connections	64
number of PN IO devices	128
number of PN IO IRT devices	64
number of external PN IO lines	4
