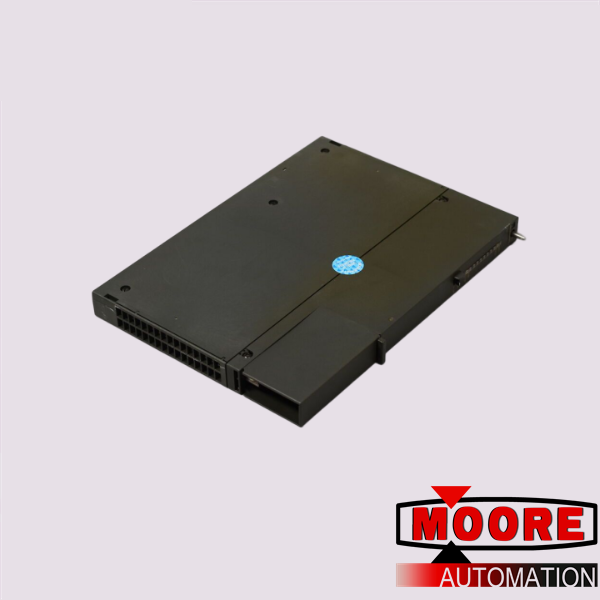

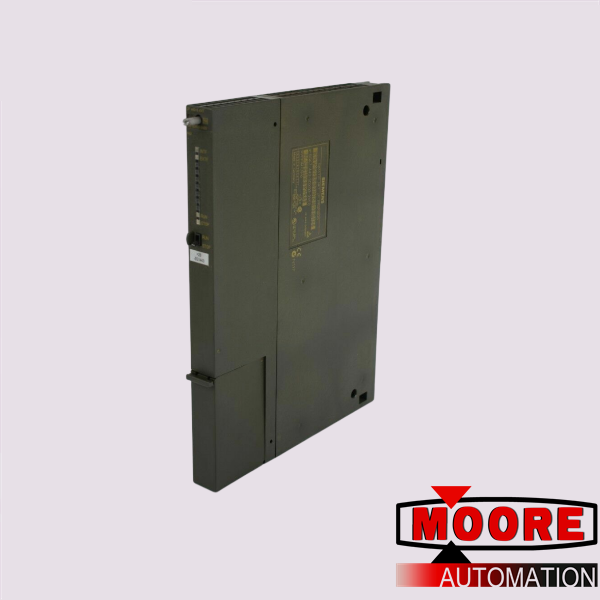

SIEMENS 6GK7443-1EX20-0XE0 Communications Module

Product datails:

Communications processor CP 443-1 for connection of SIMATIC S7-400 to industrial Ethernet over ISO, TCP/IP and UDP, S7 communication, fetch/write, SEND/RECEIVE with and without RFC1006 multicast, PROFINET IO controller, DHCP, SNMP V2, web, diagnostics Initialization via LAN, access protection via IP access list integrated real-time switch ERTEC 400, 2xRJ45 connection for LAN with 10/100 Mbit/s

• Manufacturer : Siemens
• Product No. : 6GK7443-1EX20-0XE0
• Product type : Communications Processor CP 443-1
• Type of voltage / of supply voltage :DC
• Supply voltage / 1 / from backplane bus :5 V
• Relative symmetrical tolerance / at 5 V / with DC: 5 %
• Consumed current / from backplane bus / at 5 V / for DC / Typical :1.4 A
• Resistive loss :8.6 W
• Transfer rate at the 1st interface : 10 ... 100 Mbit/s
• Number of interfaces / acc. to Industrial Ethernet : 2
• Number of active connections / with multi-protocol mode : 128
• Number of units per CPU / maximum : 14
• Dimensions (LxWxH), approx : 21cm x 2.5cm x 29cm
• Weight : 0.7 Kg
• Shipping weight : 2 Kg
