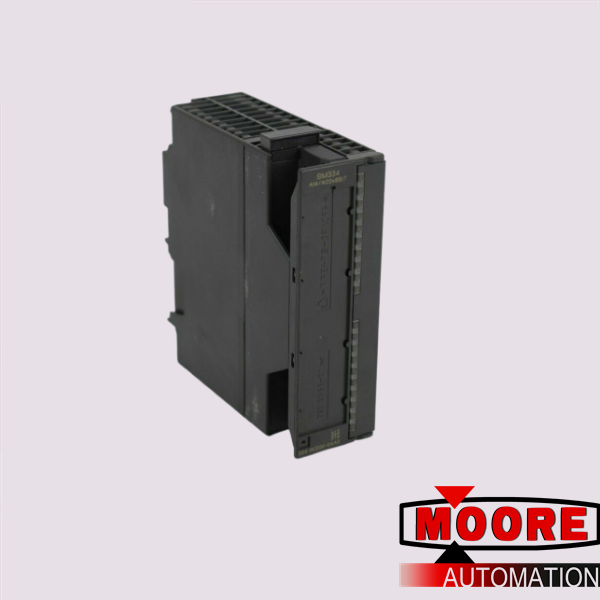

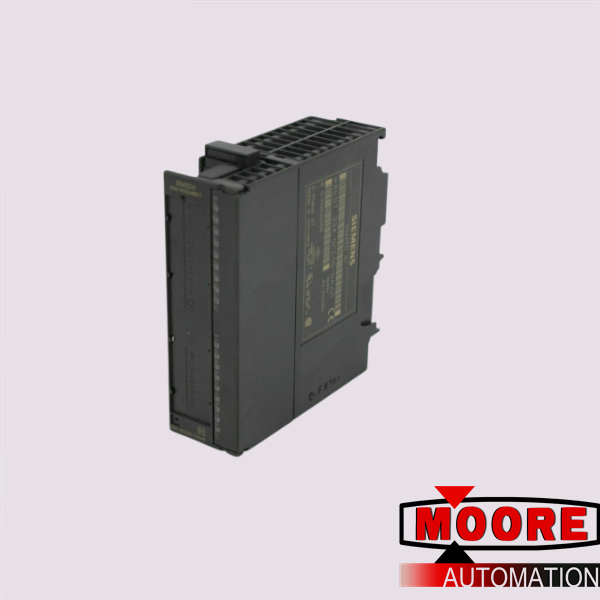

SIEMENS 6ES7334-0KE00-0AB0 Analog module SM 334

Brand/ Manufacturer:
Siemens
Dimensions:
10.2cm*7.4cm*6cm
Weight:
0.5kg
Country of Origin: :
Germany
Description:
Analog module SM 334

Inquiry now

Mfr. Part Number:	6ES7334-0KE00-0AB0

Manufacturer:	SIEMENS

Description:	SIMATIC S7-300, Analog module SM 334, isolated, 4 AI/2 AO, 12 bit, 0-10 V f. Pt100 (climatic range -120-155 degrees) and 10 kOhm measuring range, 1x 20-pole
Full Description:	Number of analog inputs： 4 Number of analog inputs for voltage measurement： 2
Status:	In stock ready to ship

plcsale@mooreplc.com +8618030235313 dddemi33 2851195473

Load voltage L+ Rated value (DC)	24 V
Input current from load voltage L+ (without load), max.	80 mA
from backplane bus 5 V DC, max.	60 mA
Power losses Power loss, typ.	2 W
Number of analog inputs	4
Number of analog inputs for voltage measurement	2
Number of analog inputs for resistance measurement	4
permissible input voltage for voltage input (destruction limit), max.	20 V ; continuous; 75 V for max. 1 s
Cycle time (all channels) max.	85 ms
Input resistance (0 to 10 V)	100 kΩ
Number of analog outputs	2
Voltage output, short-circuit protection	Yes
Voltage output, short-circuit current, max	10 mA
Load impedance (in rated range of output) with voltage outputs, min.	12 bit
Integration time, ms	16.67/20 ms
Settling time for resistive load	0.8 ms
Settling time for capacitive load	0.8 ms
Voltage, relative to input area	+/- 0,7 % ; 0 to 10 V
Impedance, relative to input area	+/- 3,5 % ; 10 kOhm
Resistance-type thermometer, relative to input area	+/- 1 %
Voltage, relative to output area	+/- 1 %
