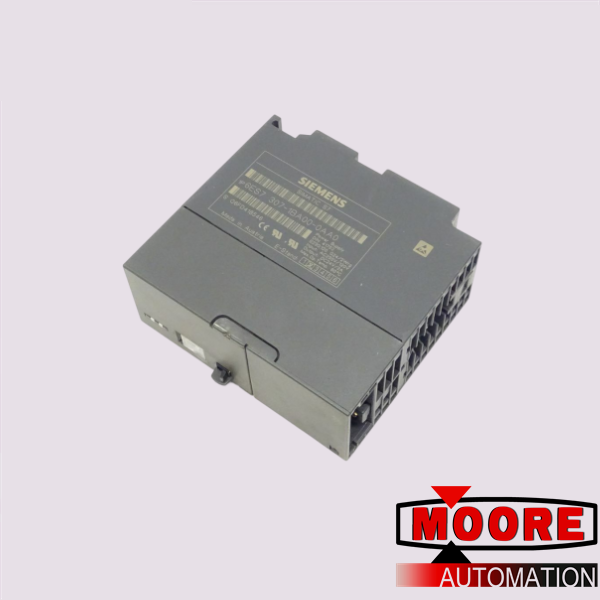

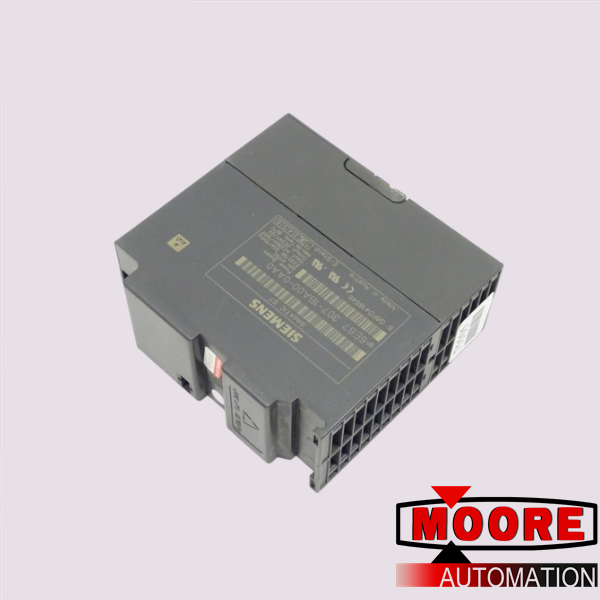

SIEMENS 6ES7307-1BA00-0AA0 power supply

Brand/ Manufacturer:
Siemens
Dimensions:
12cm*4cm*12.5cm
Weight:
0.26kg
Country of Origin: :
Germany
Description:
power supply

Inquiry now

Mfr. Part Number:	6ES7307-1BA00-0AA0

Manufacturer:	SIEMENS

Description:	SIMATIC S7-300 Regulated power supply PS307 input: 120/230 V AC, output: 24 V DC/2 A
Full Description:	supply voltage ● 1 at AC rated value 120 V ● 2 at AC rated value 230 V

Status:	In stock ready to ship

plcsale@mooreplc.com +8618030235313 dddemi33 2851195473

Input	1-phase AC
Overvoltage resistance	2.3 × Vin rated, 1.3 ms
Mains buffering	at Vin = 93/187 V
Mains buffering at Iout rated, min.	20 ms; at Vin = 93/187 V
Rated line frequency 1	50 Hz
Rated line frequency 2	60 Hz
Rated line range	47 ... 63 Hz
input current ● at rated input voltage 120 V	2.3 A
● at rated input voltage 230 V	1.2 A
Switch-on current limiting (+25 °C), max	20 A
duration of inrush current limiting at 25 °C ● maximum	3 ms
Built-in incoming fuse	T 3,15 A/250 V (not accessible)
Output	Controlled, isolated DC voltage
Rated voltage Vout DC	24 V
Total tolerance, static ±	3 %
Static mains compensation, approx	0.1 %
Static load balancing, approx	0.5 %
Residual ripple peak-peak, max	50 mV
Status display	Green LED for 24 V OK
Startup delay, max.	2 s
Voltage rise, typ	10 ms
Rated current value Iout rated	5 A
Current range	0 ... 5 A
supplied active power typical	120 W
Efficiency at Vout rated, Iout rated, approx	87 %
Power loss at Vout rated, Iout rated, approx	18 W
Dynamic mains compensation (Vin rated ±15 %), max	0.1 %
Dynamic load smoothing (Iout: 50/100/50 %), Uout ± typ	1 %
