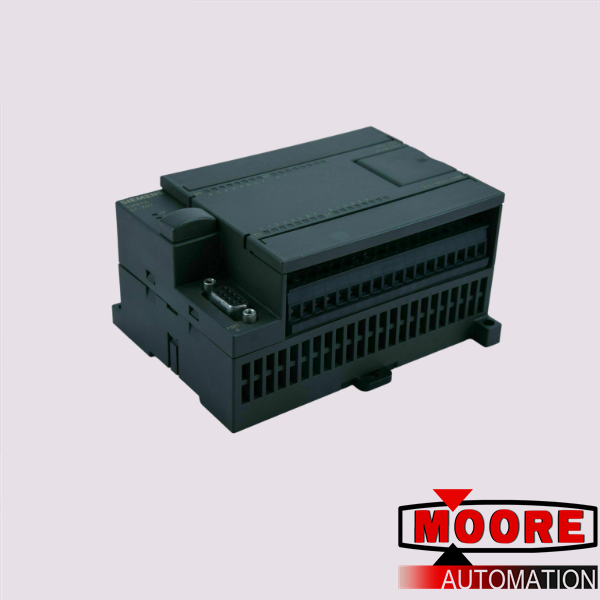

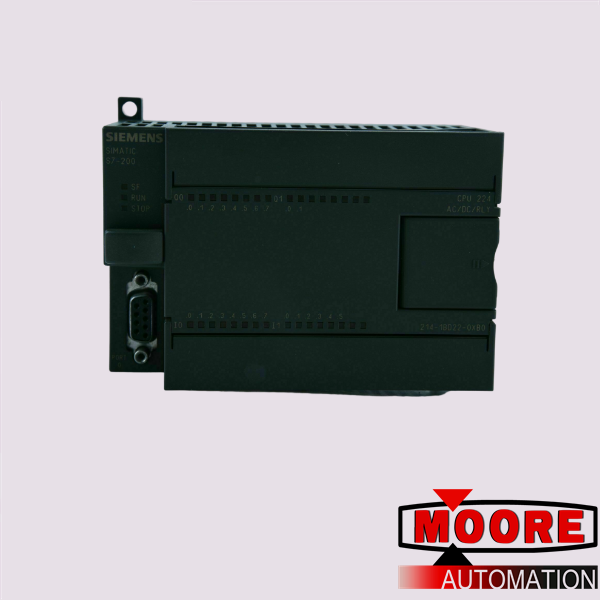

SIEMENS 6ES7214-1BD22-0XB0 CPU 224 Compact Controller

Brand/ Manufacturer:
Siemens
Dimensions:
10.2cm*3.6cm*10cm
Weight:
0.3kg
Country of Origin: :
Germany
Description:
CPU 224 Compact Controller

Inquiry now

Mfr. Part Number:	6ES7214-1BD22-0XB0

Manufacturer:	SIEMENS

Description:	Siemens 6ES7 214-1BD22-0XB0 SIMATIC S7-200 CPU 224 Compact Controller AC/DC/RLY, with 1 x RS-485 Interface (MPI/PPI/Freeport), 8 Kbytes User Program Memory and 5 Kbytes Data Memory
Full Description:	24V DC Digital Inputs, Sink/Source, Relay Contact Digital Outputs, 30V DC or 250V AC 2A/each, Analog Potentiometers, Integrated 85-264V AC Power Supply, expandable with up to 7 expansion modules
Status:	In stock ready to ship

plcsale@mooreplc.com +8618030235313 dddemi33 2851195473

Rated value (AC)	120 V AC
Load voltage L+ Rated value (DC)	24 V
permissible range, lower limit (DC)	5 V
permissible range, upper limit (DC)	30 V
Load voltage L1 Rated value (AC)	100 V; 100 V AC to 230 V AC
permissible range, lower limit (AC)	5 V
permissible range, upper limit (AC)	250 V
permissible frequency range, lower limit	47 Hz
permissible frequency range, upper limit	63 Hz
Inrush current, max.	20 A; at 264 V
from supply voltage L1, max	200 mA; 30 to 100 mA (240 V)
Encoder supply Output current, max	280 mA
Power loss, typ.	10 W
Number of memory modules (optional)	1; pluggable memory module
Work memory integrated (for program)	8 kbyte
integrated (for data)	5 kbyte
Backup battery Backup time, max.	190 h; (min. 120 h at 40 °C)
CPU processing times for bit operations, max.	0.37 µs
S7 counter Number	256
Expansion modules Analog inputs/outputs, max.	35; max. 28 inputs and 7 outputs (EM)
Digital inputs/outputs, max	168; max. 94 inputs and 74 outputs (CPU + EM)
AS-Interface inputs/outputs, max.	31; AS-Interface slaves (CP 243-2)
Digital inputs Number of digital inputs	14
Source/sink input	Yes; optionally, per group
Input voltage Rated value (DC)	24 V
for signal "0"	0 to 5 V
for signal "1"	min. 15 V
