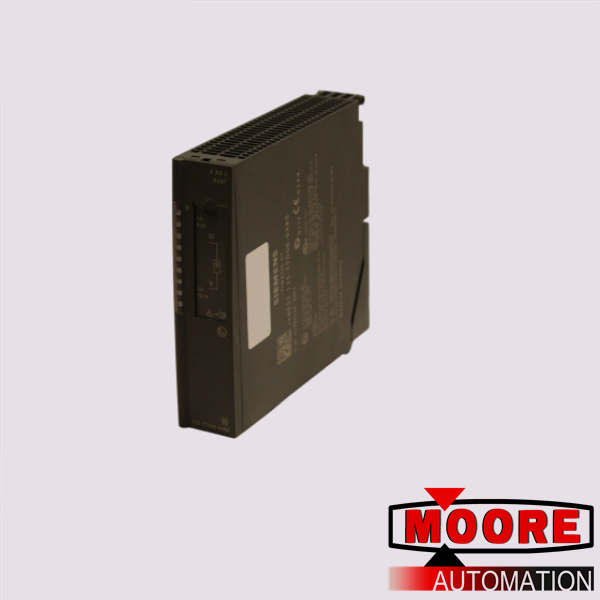

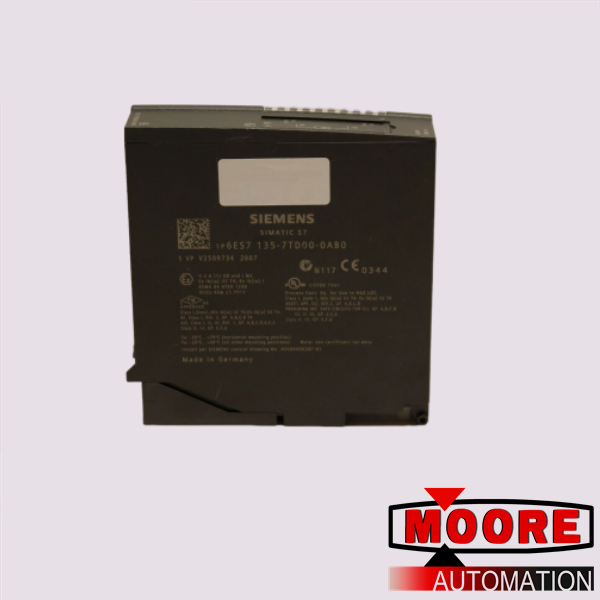

SIEMENS 6ES7135-7TD00-0AB0 Electronic Block

Brand/ Manufacturer:
Siemens
Dimensions:
7.6cm*5.2cm*6.3cm
Weight:
0.2kg
Country of Origin: :
Germany
Description:
Electronic Block

Inquiry now

Mfr. Part Number:	6ES7135-7TD00-0AB0

Manufacturer:	SIEMENS

Description:	Siemens 6ES7135-7TD00-0AB0 SIMATIC DP, Elect. Submodule

Full Description:	Siemens 6ES7135-7TD00-0AB0 simatic dp, elect. submodule for et200isp, 4 ao hart, 4 - 20ma, for connection of hart field devices

Status:	In stock ready to ship

plcsale@mooreplc.com +8618030235313 dddemi33 2851195473

Current consumption, typ	295 mA
from load voltage L+ (without load), max	330 mA
Power loss, typ.	2.7 W
Number of analog outputs	4
Cycle time (all channels) max.	3.6 ms
Output ranges, current● 0 to 20 mA	Yes
Output ranges, current● 4 mA to 20 mA	Yes
for current output two-wire connection	Yes
Load impedance (in rated range of output)	750 Ω
Cable length	500 m
Resolution with overrange (bit including sign), max.	14 bit
Settling time ● for resistive load	4 ms
for capacitive load	40 ms
for inductive load	40 ms
Linearity error (relative to output range), (+/-)	0.015 %
Temperature error (relative to output range), (+/-)	0.005 %/K
Crosstalk between the outputs, min.	-50 dB
Repeat accuracy in steady state at 25 °C (relative to output range), (+/-)	0.01 %
Current, relative to output range, (+/-)	0.15 %
