1 Year Warranty
The quality of the goods supplied by Moore is guaranteed!
Brand/ Manufacturer:
SiemensDimensions:
6.4cm*5.2cm*5.1cmWeight:
0.2kgCountry of Origin: :
GermanyDescription:

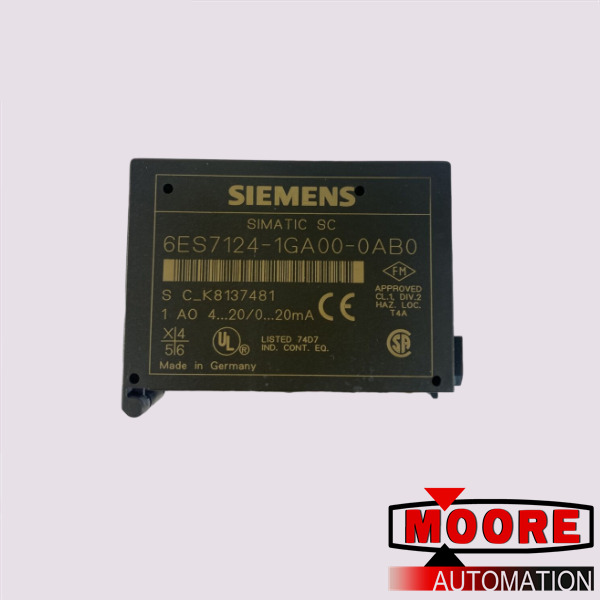

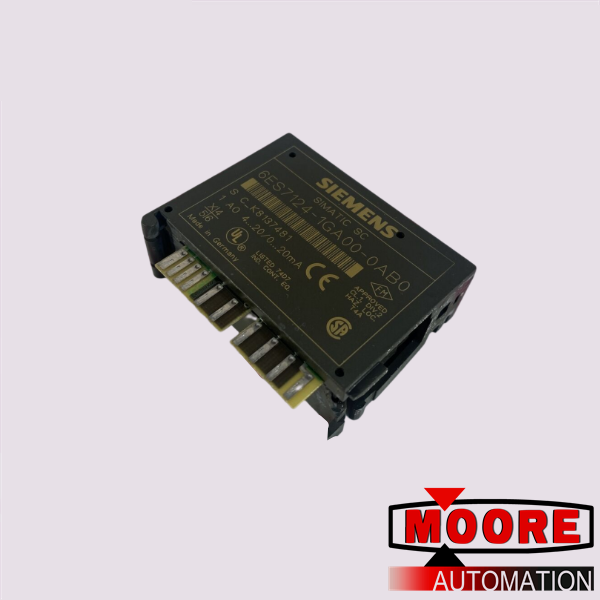

Output Module
|
Mfr. Part Number: |
6ES7124-1GA00-0AB0 |
|
|
|
|
Manufacturer: |
SIEMENS |
|
|
|
|
Description: |
SIMATIC SC,ELECTRONIC SUBMODULE 1 AO, 4..20MA, +/-20MA
|
|
|
|
|
Full Description: |
Product type : Siemens PLC S7 Series |
|
|
|
|
Status: |
plcsale@mooreplc.com
+8618030235313
dddemi33
2851195473
|
Usable terminal block |
TB 16SC |
|
Rated value (DC) |
24 V |
|
Reverse polarity protection |
Yes |
|
from supply voltage L+, max. |
50 mA |
|
Power loss, max. |
1 W |
|
required slots |
2; from 8 |
|
Number of analog outputs |
1 |
|
Current output, no-load voltage, max |
16 V |
|
Output ranges, current ● 0 to 20 mA |
Yes |
|
for current output two-wire connection |
Yes |
|
Load impedance (in rated range of output)● with current outputs, max. |
600 Ω; at common-mode voltage 2 V, max. 500 ohms; at |
|
with current outputs, inductive load, max |
1 mH |
|
Voltages at the outputs towards MANA |
15 V; max. 15 V continuous; 75 V for max. 1 s |
|
Current, max |
50 mA; DC |
|
shielded, max. |
200 m |
|
Resolution (incl. overrange) |
S7 representation: 0 mA to 20 mA, 4 mA to 20 mA |
|
Resolution with overrange (bit including sign),
max |
12 bit |
|
Conversion time (per channel) |
5 ms |
|
for resistive load |
0.1 ms |
|
for inductive load |
0.5 ms |
|
Linearity error (relative to output range), (+/-) |
0.06 % |
|
Temperature error (relative to output range), (+/-) |
0.01 %/K |
|
Repeat accuracy in steady state at 25 °C |
0.1 % |
|
Current, relative to output range, (+/-) |
1 % |
|
Current, relative to output range, (+/-) |
0.7 % |
|
