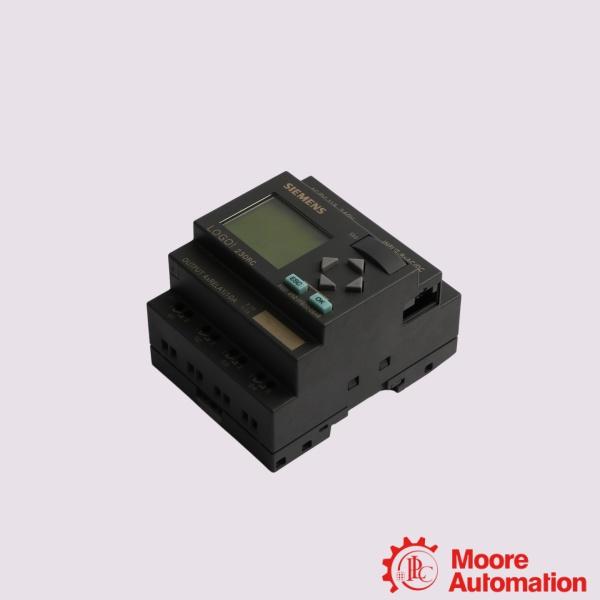

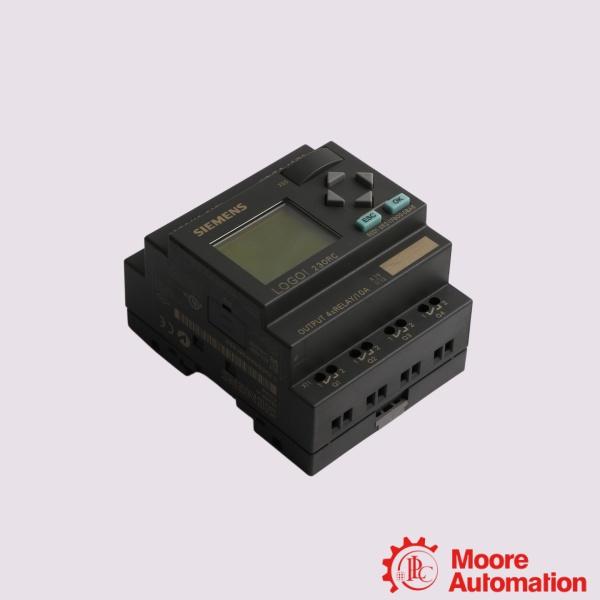

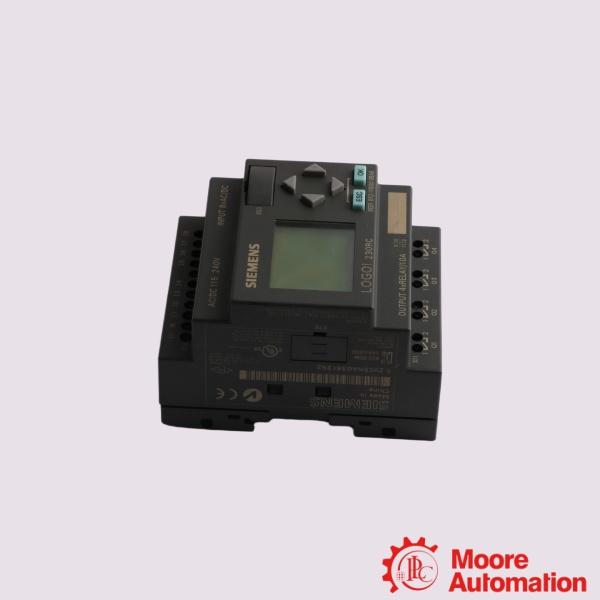

Siemens 6ED1052-1FB00-0BA6 LOGO! 230RC Logic Module

Description

The Siemens 6ED1052-1FB00-0BA6 is a LOGO! 230RC logic module designed for compact automation and control applications. It features an integrated display, operates with 115/230 V AC/DC power supply, and provides 8 digital inputs and 4 relay outputs for flexible control of industrial equipment and building automation systems. The module supports programs of up to 200 function blocks and can be expanded with compatible LOGO! expansion modules to accommodate additional input and output requirements. The module is designed for installation on a 35 mm DIN rail and occupies 4 modular widths. It incorporates 8 time switching clocks with an 80-hour power reserve, allowing clock functions to be maintained during power interruptions. The relay outputs are rated for switching loads up to 10 A (resistive) or 3 A (inductive), while the supply voltage operates within a 100 to 253 V DC range or with 115/230 V AC input. The unit also complies with IEC 61131 and carries UL, CSA, FM, and Marine approvals, making it suitable for a wide range of industrial control environments.

Parameter

Model: 6ED1052-1FB00-0BA6 LOGO! 230RC Logic Module
Mounting: 35 mm DIN rail, 4 spacing units wide
Permissible range lower limit (DC): 100 V
Permissible range, upper limit (DC): 253 V
Operating temperature: 0 °C to 55 °C
Number of digital outputs: 4 Relays
Short-circuit protection: No external fusing necessary

Frequently asked questions

What is the Siemens 6ED1052-1FB00-0BA6?
The Siemens 6ED1052-1FB00-0BA6 is a LOGO! 230RC logic module with an integrated display. It operates on 115/230 V AC/DC, provides 8 digital inputs and 4 relay outputs, and supports programs of up to 200 function blocks. It can also be expanded with compatible LOGO! expansion modules.

What power supply does the 6ED1052-1FB00-0BA6 require?
The module supports 115 V AC, 230 V AC, 115 V DC, and 230 V DC power supplies. The permissible DC voltage range is 100 to 253 V.

Can the 6ED1052-1FB00-0BA6 be expanded?
Yes. The module is modularly expandable and can be connected to compatible LOGO! expansion modules to increase the number of available inputs and outputs.

Application areas:

Interlocking Circuits: Replacing clusters of conventional mechanical hardware timing relays, counters, and auxiliary logic contacts with a single unit.

Rainwater Harvesting & Drainage Pumps:Managing float switches to sequence rainwater replenishment or trigger sump pump drainage during high water states.

Conveyor & Feed Systems:Controlling small material handling lines, managing part-counting triggers, or sequencing sorting gates.
