in stock#
Brand/ Manufacturer:
Phoenix ContactDimensions:
24 x 13 x 12.8 cmWeight:
3.44 kgCountry of Origin: :
GERMANYDescription:

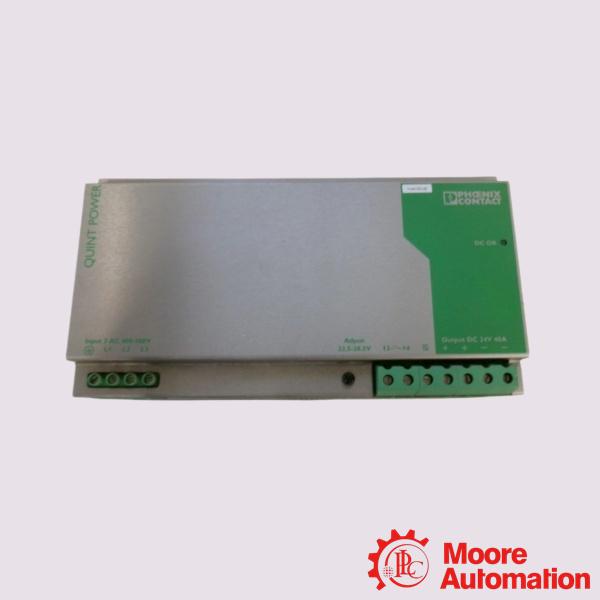

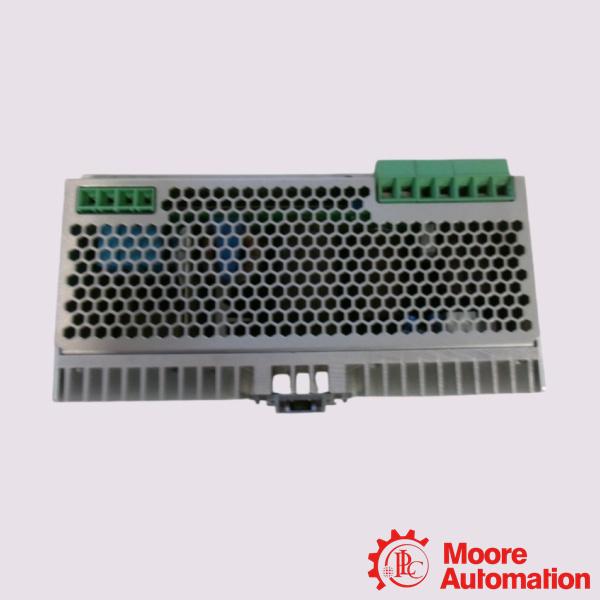

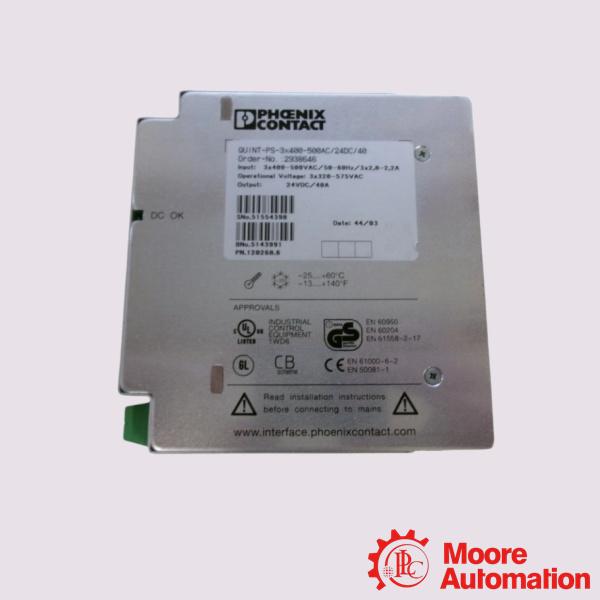

Phoenix Contact QUINT-PS-3X400-500AC/24DC/40 2938646 Power supply unit
| Mfr. Part Number: |
QUINT-PS-3X400-500AC/24DC/40 2938646 |
| Manufacturer: |
Phoenix Contact |
| Description: |
Phoenix Contact QUINT-PS-3X400-500AC/24DC/40 2938646 Power supply unit |
| Full Description: |
The QUINT-PS-3X400-500AC/24DC/40 2938646 is the powerful 60 - 960 W DC power supply unit for universal use |
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Phoenix Contact. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:
The QUINT-PS-3X400-500AC/24DC/40 2938646 is the powerful 60 - 960 W DC power supply unit for universal use. With its wide-range input, single and three-phase versions, and international approval package, this solution is unrivalled.
QUINT POWER provides reliable power supply: generously dimensioned capacitors ensure mains buffering of over 20 ms at full load. Full output power is provided by all three-phase devices, even in the event of a permanent phase failure.The Power Boost power reserve easily starts loads with high inrush currents and ensures that fuses are reliably tripped. Preventive function monitoring diagnoses impermissible operating states and minimizes downtimes in your system. Remote monitoring is provided by an active transistor switching output and a floating relay contact.
Application:
Automobile manufacturing plant: PLC control system for the assembly line, industrial robot controllers and large servo drive systems.
Semiconductor and electronics factory: Automated handling system for clean rooms and large lithography/inspection equipment.
Heavy industry and logistics: Palletizing machines for large automated warehouses and control cabinets for long-distance belt conveyors.
Water treatment and municipal facilities: Distributed control systems for large pumping stations and sewage treatment plants.
Frequently Asked Questions (FAQ)
Q:What is the inrush surge current of the Phoenix Contact QUINT-PS-3X400-500AC/24DC/40 2938646?
A:The inrush surge current of the Phoenix Contact QUINT-PS-3X400-500AC/24DC/40 2938646 is less than 15 A (typical).
Q:What is the maximum power dissipation of the Phoenix Contact QUINT-PS-3X400-500AC/24DC/40 2938646?
A:The maximum power dissipation of the Phoenix Contact QUINT-PS-3X400-500AC/24DC/40 2938646 with no load is less than 14 W.
Q:What is the maximum conductor cross-section of the Phoenix Contact QUINT-PS-3X400-500AC/24DC/40 2938646?
A:The maximum conductor cross-section of the Phoenix Contact QUINT-PS-3X400-500AC/24DC/40 2938646 is 4 mm² (stranded).
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：QUINT-PS-3X400-500AC/24DC/40 2938646 |
|
Degree of Protection |
IP20 |
|
Ambient Temperature (Operation) |
-25 °C ... 70 °C (> 60 °C derating) |
|
Ambient Temperature (Storage/Transport) |
-40 °C ... 85 °C |
|
AC Frequency Range |
45 Hz ... 65 Hz |
|
Nominal Power Consumption |
960 W |
|
Inrush Surge Current |
< 15 A (typical) |
|
Nominal Output Voltage |
24 V DC ±1 % |
|
Setting Range of the Output Voltage |
22.5 V ... 28.5 V |
|
Maximum Power Dissipation (No-Load) |
< 14 W |
|
Power Loss at Nominal Load Max. |
< 80 W |
|
MTBF (IEC 61709, SN 29500) |
> 500,000 hours |
|
Conductor Cross Section Stranded Max. |
4 mm² |
|
