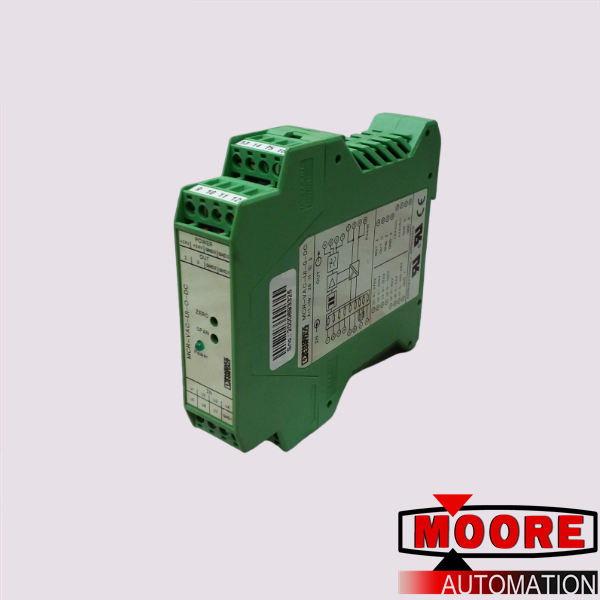

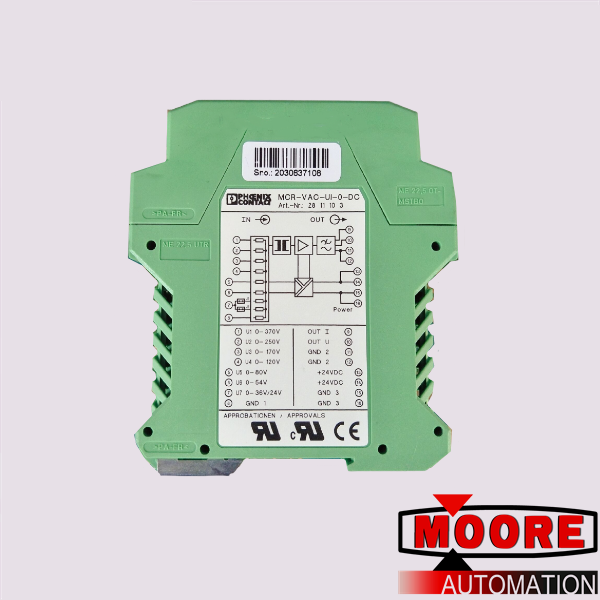

Phoenix MCR-VAC-UI-O-DC 2811103 Voltage transducers

Brand/ Manufacturer:
Phoenix Contact
Dimensions:
15cm*6cm*16cm
Weight:
0.4kg
Country of Origin: :
Germany
Description:
Voltage measuring transducers

Inquiry now

Mfr. Part Number:	MCR-VAC-UI-O-DC 2811103

Manufacturer:	Phoenix Contact

Description:	Phoenix Contact MCR-VAC-UI-O-DC 2811103 Voltage measuring transducers - MCR-VAC-UI-O-DC
Full Description:	MCR voltage measuring transducer, for alternating current voltages from 0..20 V AC to 0..440 V AC, output signal 0..10 V/0(4)..20 mA

Status:	In stock ready to ship

Sales manager: Tiffany Guan plcsale@mooreplc.com + 86 18030235313 dddemi33 2851195473

Alignment span	± 20 %
Alignment zero	± 20 %
Rated insulation voltage	300 V DC
Frequency measuring range	45 Hz ... 400 Hz
Maximum power dissipation for nominal condition	0.8 W
Test voltage output/power supply	1 kV (50 Hz, 1 min.)
Test voltage input/output	3.3 kV (50 Hz, 1 min.)
Test voltage input/power supply	3.3 kV (50 Hz, 1 min.)
Step response (10-90%)	250 ms
Temperature coefficient, typical	0.02 %/K (50/60 Hz)
Maximum transmission error	< 1.5 % (of final value)
