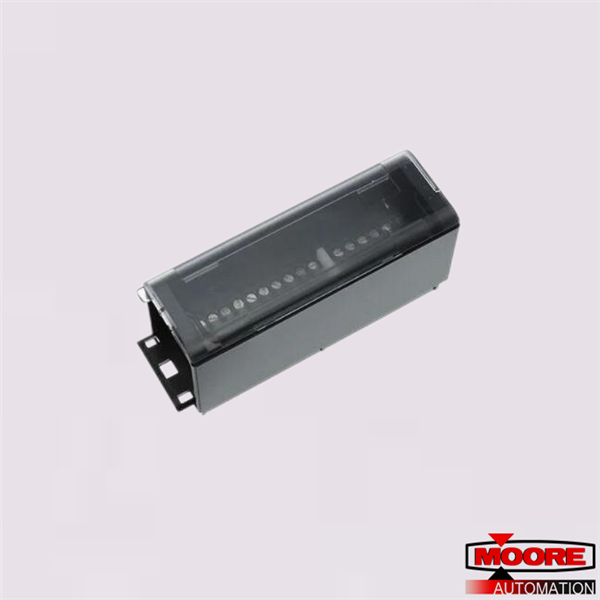

IC694TBB132 | GE Box-style terminal block

in stock#

Brand/ Manufacturer:
General Electric
Dimensions:
3.5 cm x 13 cm x 13.5 cm
Weight:
0.3 kg
Country of Origin: :
USA
Description:
GE IC694TBB132 Box-style terminal block

Inquiry now

Mfr. Part Number:	IC694TBB132

Manufacturer:	GE

Description:	GE IC694TBB132 Box-style terminal block

Full Description:	GE IC694TBB132 Box-style terminal block This terminal block requires tightening torque of 7 lb-in and is designed to accommodate a wire size range of #14-26 AWG solid or stranded wire.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786

: live:onlywnn_1 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for GENERAL ELECTRIC. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

The IC694TBB032 is a High-Density, extended box-style terminal block that is part of the PACSystem RX3i PAC series formerly by GE Intelligent Platforms, now under Emerson Automation. This terminal block requires tightening torque of 7 lb-in and is designed to accommodate a wire size range of #14-26 AWG solid or stranded wire.

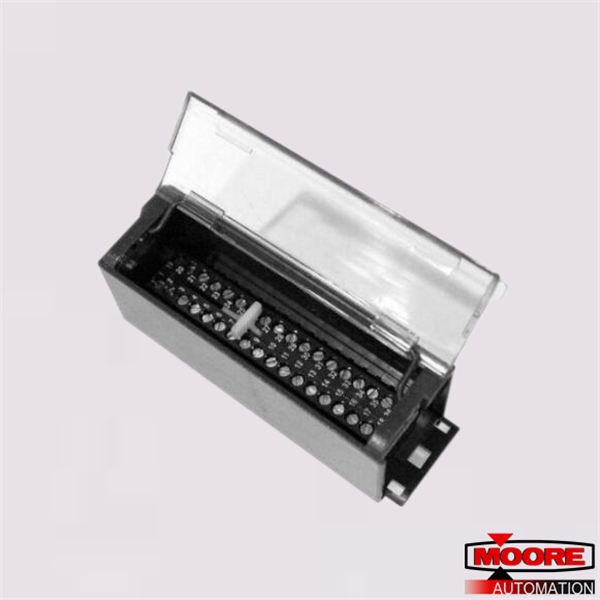

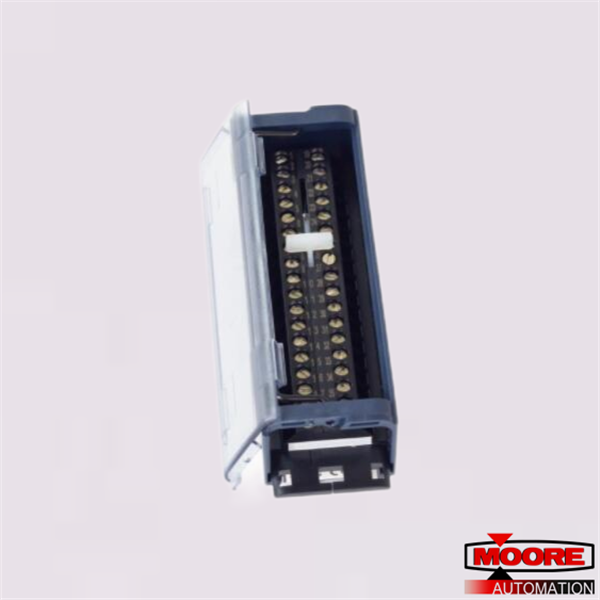

The IC694TBB132 terminal block is a boxed style terminal block manufactured by GE Fanuc. The block supports high-density IO modules. It has 36-pins designed for termination of conductor size between 14-26 AWG. The IC694TBB132 terminal block is accompanied by a screw that is used for a firm connection. The terminal block is compact in size and it has dimensions of 6 inches in length and 6 inches in width.

The IC694TBB132 terminal block has an outer cover that is 0.5 inches deeper than the inside. This design helps to accommodate wires with thicker insulation. The tightening torque of the terminal screw is 7 pounds on an inch. The IC694TBB132 terminal block uses the bottom section as a gauge for the wire strip. For isolation, the wire should be fully inserted into the terminal block. The terminal block is easy to install and replace when needed. The wire bundles in the module should be protected on the bottom section of the terminal block. When installing a new block, the top portion and the bottom of the cover should be aligned together, and the notches inside the block are exactly the same and provided with cover grooves. During the removal process, the latch should be pushed below until the block is released.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Brand	GE Fanuc
Series	PACSystem RX3i
Manufacturer	GE Fanuc
Manufacturer	GE Intelligent Platforms (GE IP); Emerson Automation (Current)
Part Number	IC694TBB132
Product Description	extended box style terminal block
Series	PACSystem RX3i
Description	Terminal block
No. of terminal	36 terminal
Part Number	IC694TBB132
Terminals	32
Terminal type	Screw type terminals
Product Description	Extended Box style terminal block
Torque	7 pounds on an inch
Compatible modules	RX3i and equivalent Series 90-30 High-density I/O modules; Individually isolated, 16-channel modules
