Product Description:

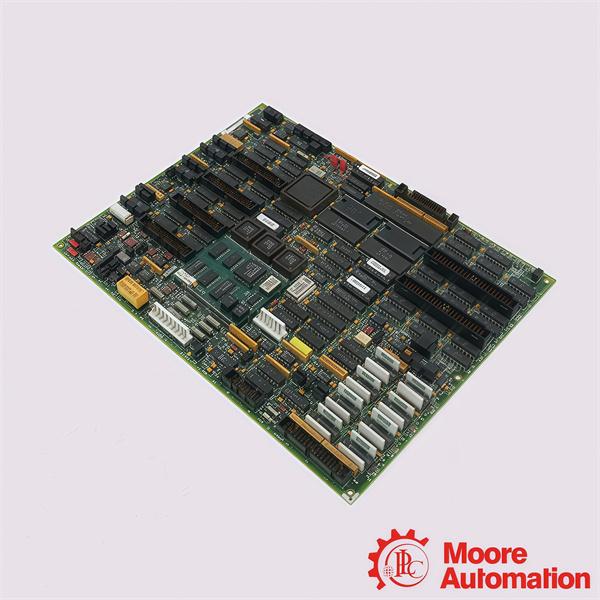

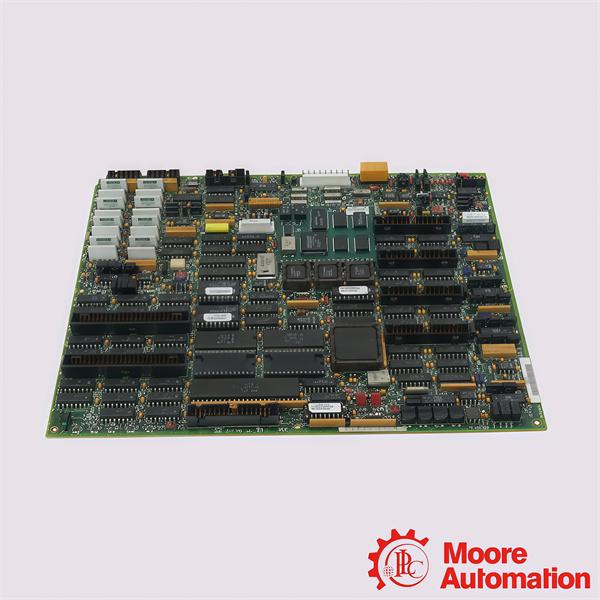

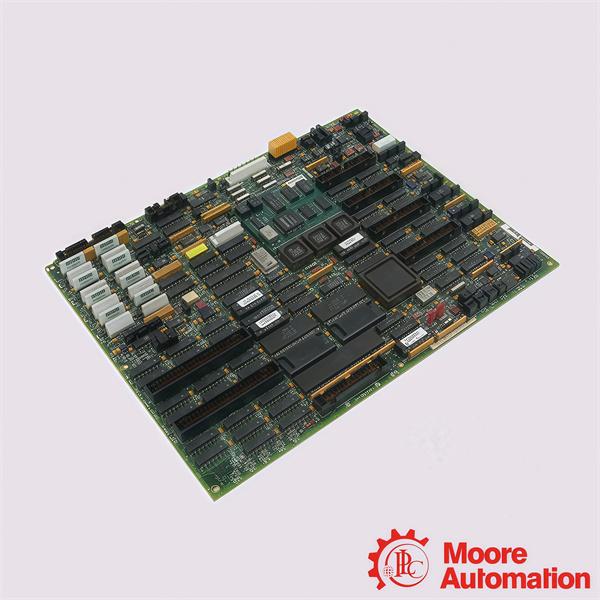

DS200TCCAG1AJB is a Common Analog I/O Board manufactured and designed by General Electric as part of the Mark V Series used in gas turbine control systems.The Common Analoe /o Board (TccA)is an inteeral component of the turbine control svstem.located within the core.Its primary function is to condition.scale.and interface various analog signals that originate from the terminal boards - namely, the CTBA, TBQA, and TBCA - all of which are also mounted inside the core. By performing essential signal conditioning tasks, the TCCA ensures that the incoming data is accurate, stable, and ready for further digital processing

Frequently Asked Questions (FAQ)

Q:Where is the DS200TCCAG1AJB  board installed in the control system?
A:The DS200TCCAG1AJB board is located inside the core of the turbine control cabinet. It works alongside terminal boards such as CTBA, TBQA, and TBCA, all of which are also housed in the core. Its strategic placement within this core allows it to effectively process various analog signals and serve as a central hub for analog input and output communications.
Q:What types of analog signals does the DS200TCCAG1AJB board support?
A:The DS200TCCAG1AJB board is capable of handling multiple types of analog signals. These include 4-20 mA inputs and outputs, which are commonly used for transmitting sensor data in industrial environments due to their resistance to electrical noise.

Q:How does the DS200TCCAG1AJB handle 4-20 mA signals?
A:The DS200TCCAG1AJB board reads 4-20 mA input signals through the JBB connector from the CTBA terminal board. The input current passes through a burden resistor on the board,creating a voltage drop, which is then measured and processed.This voltage is transmitted through the 3PL connector to the I/O engine.
