Product Description:

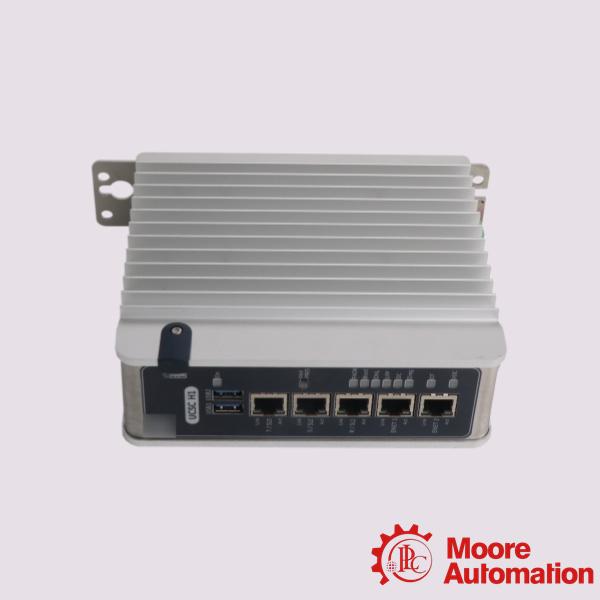

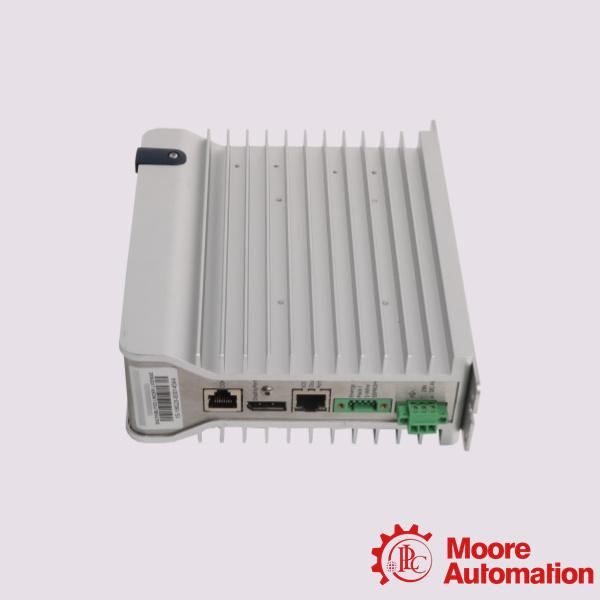

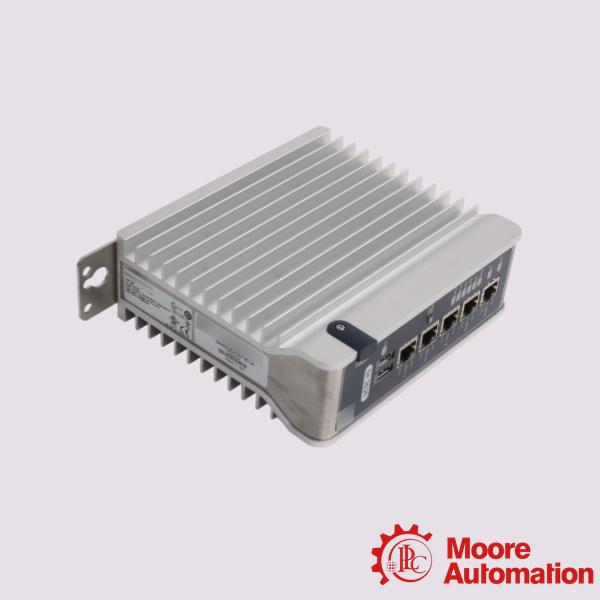

The IS420UCSCH1A-G-V0.1-A controller is designed for high-speed, high-reliability industrial applications and is loaded with software specific to its intended function. As a turbine or Balance of Plant controller, it operates using Mark VIe firmware and blockware applications while communicating through dedicated Mark VIe IONet interfaces. IONet is a private, special-purpose Ethernet network that exclusively supports Mark controls I/O packs and controllers. IEEE 1588 protocol is utilized over IONet to synchronize controller and I/O module clocks within ±100 microseconds.

External process data is transferred between the controller and I/O Packs through the IONet Ethernet interfaces, including all process inputs and outputs. Unlike traditional controllers that host I/O on a backplane, the UCSE controller does not contain application I/O locally. In redundant configurations, every controller is connected to all I/O networks, ensuring access to the complete set of input data. This architecture eliminates single points of application input failure, allowing uninterrupted operation even when a controller is taken offline for maintenance or repair.

Application:

Steam Turbine Power Generation Plants: Used for turbine speed control, generator synchronization, and auxiliary system monitoring in thermal power facilities.
Wind Power Infrastructure: Used for pitch control adjustment, grid synchronization stability, and turbine operational monitoring.
Nuclear and Hydroelectric Facilities: Used for safety interlocking control, water gate regulation, and turbine governor system management.
Gasification Processing & Chemical Refineries: Used for sequence-of-events processing and real-time distributed process control in complex chemical production systems.

Frequently Asked Questions (FAQ)

Q: Does the IS420UCSCH1A-G-V0.1-A require an external backup battery for memory retention?
A: No, it uses non-volatile storage instead of a backup battery.

Q: How is the IS420UCSCH1A-G-V0.1-A accessed for maintenance console functions?
A: Via an RJ-45 console port with an external adapter.

Q: Does the IS420UCSCH1A-G-V0.1-A support redundant power inputs?
A: No, it has a single non-redundant power input.
