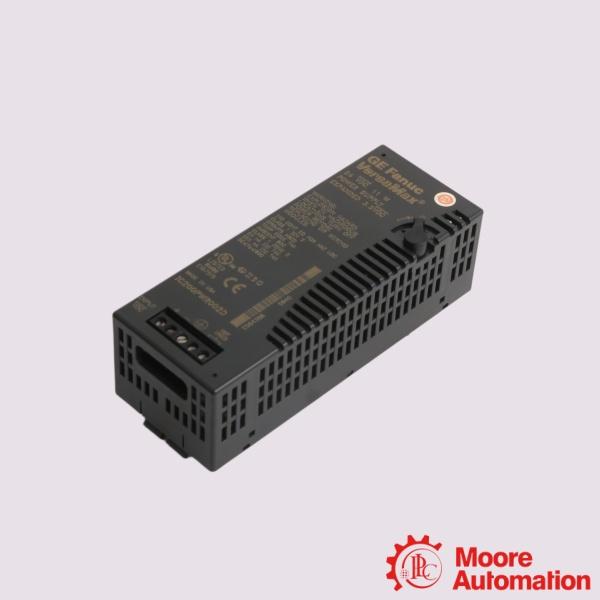

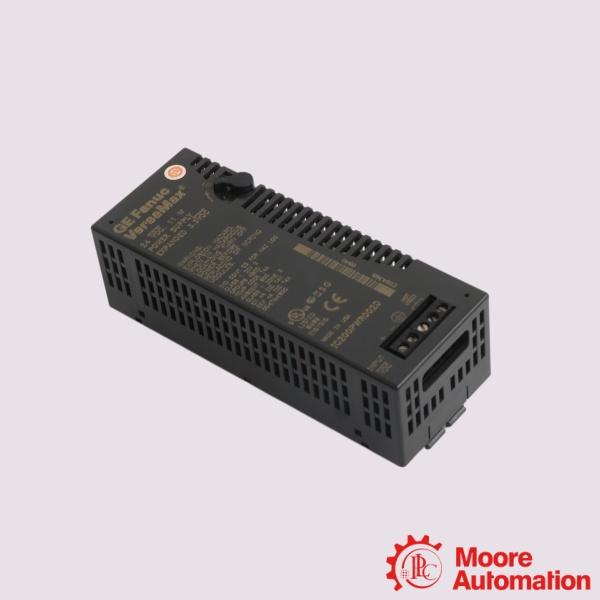

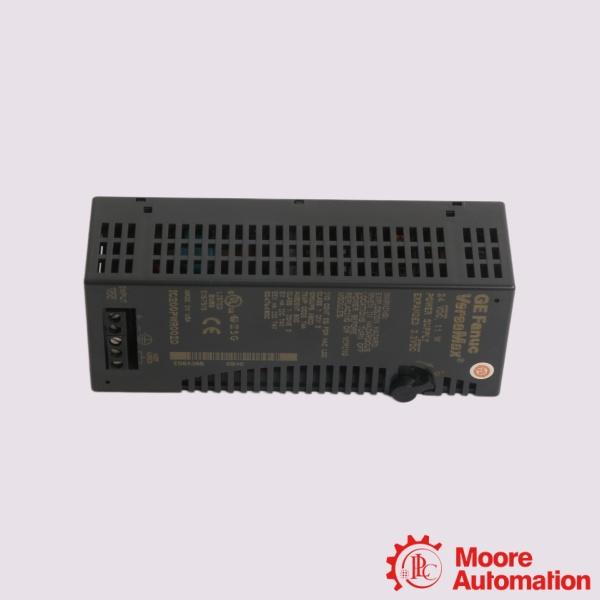

General Electric IC200PWR002G 24 VDC Expanded Power Supply Module

Description

The General Electric IC200PWR002G is a 24 VDC expanded power supply module for the VersaMax™ PLC platform. It converts an 18 to 30 VDC input into regulated 5 VDC and 3.3 VDC outputs to supply power for VersaMax CPUs, Network Interface Units (NIUs), and I/O modules through the backplane. The module is intended for applications that require additional 3.3 VDC capacity while maintaining reliable system operation.Designed as part of the VersaMax modular control system, the IC200PWR002G provides a maximum total output current of 1.5 A, including up to 1.0 A at 3.3 VDC, making it suitable for configurations with higher 3.3 VDC power demands than the standard power supply. It accepts a nominal 24 VDC input, consumes approximately 11 W, and offers a 10 ms hold-up time to help maintain stable operation during brief input power disturbances.To improve system reliability, the module incorporates short-circuit, overload, and reverse-polarity protection. Its compact design allows installation on VersaMax carriers and seamless integration with compatible PLC hardware, simplifying system expansion and maintenance.

Parameter

Model: IC200PWR002G 24 VDC Expanded Power Supply Module
Input Voltage: 18 to 30 VDC, 24VDC nominal
Input Power: 11W
Holdup Time: 10ms
Output Voltage: 5VDC, 3.3VDC
Total Output Current: 1.5 A (Maximum total)
3.3 VDC Output Current: Up to 1.0 A (Maximum)
Isolation: Non-isolated power

Frequently asked questions

What is the General Electric IC200PWR002G?
The IC200PWR002G is a 24 VDC Expanded Power Supply for the VersaMax™ PLC platform. It supplies regulated 5 VDC and 3.3 VDC backplane power to compatible VersaMax CPUs, Network Interface Units (NIUs), and I/O modules.

What input voltage does the IC200PWR002G require?
The module operates from an 18 to 30 VDC input, with 24 VDC as the nominal operating voltage. It has a typical input power consumption of 11 W.

What is the maximum output current of the IC200PWR002G?
The module supports a maximum combined output current of 1.5 A, including up to 1.0 A on the 3.3 VDC output. The remaining available current can be supplied through the 5 VDC output, provided the total does not exceed 1.5 A.

Application areas:
Assembly Lines: Supports multi-drop I/O configurations in automotive component assembly or electronics manufacturing lines.
Pumping Stations & Water Distribution: Provides stable control power for localized water booster pumps, flow monitoring networks, and valve control gates.
Bottling and Canning Lines: Supports fast-acting digital counters and sensors used to track and inspect high-volume beverage containers.
Renewable Energy Tracking: Powers small-scale solar panel tracking systems or localized wind turbine auxiliary controls.
