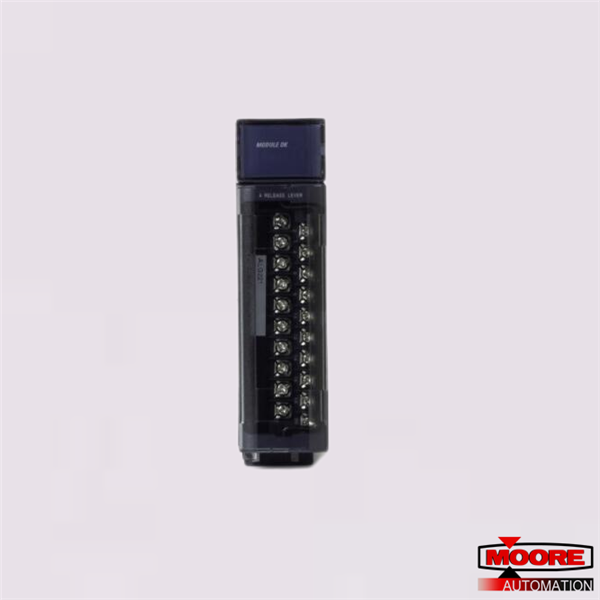

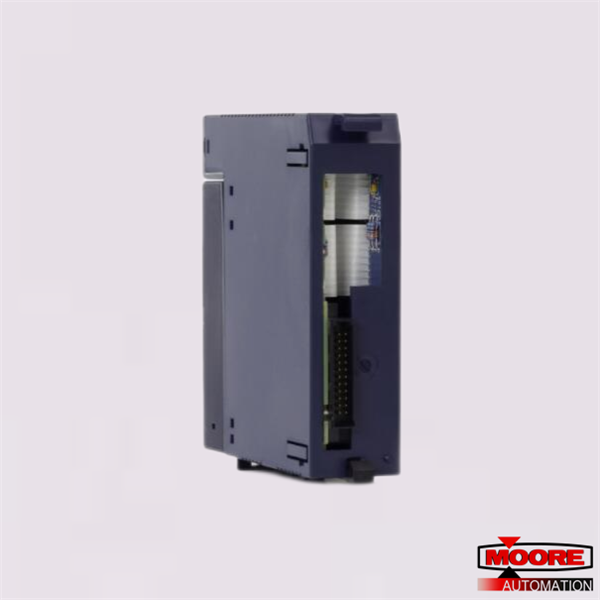

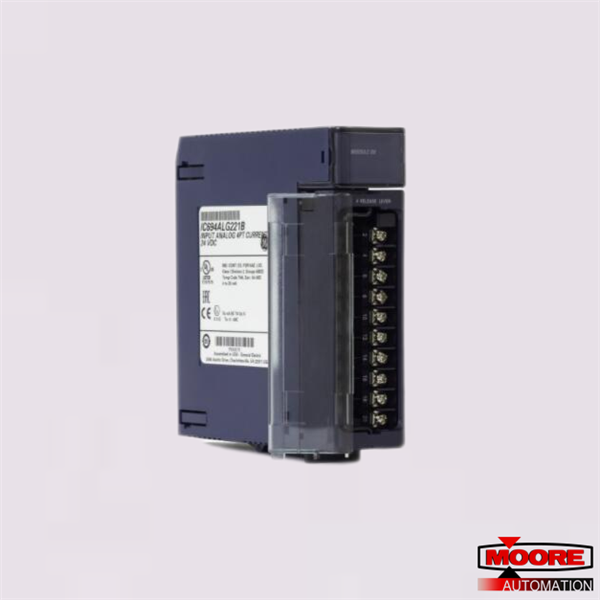

IC694ALG221 | GE Analog input module

in stock#

Brand/ Manufacturer:
General Electric
Dimensions:
3.5 cm x 13 cm x 13.5 cm
Weight:
0.3 kg
Country of Origin: :
USA
Description:
GE IC694ALG221 Analog input module

Inquiry now

Mfr. Part Number:	IC694ALG221

Manufacturer:	GE

Description:	GE IC694ALG221 Analog input module

Full Description:	GE IC694ALG221 Analog input module This module is formerly manufactured by GE Intelligent Platforms (GE IP), now under Emerson Automation. This module features Four (4) analog inputs individually configurable to receive current signals specifically, 0-20 mA and 4-20 mA with a resolution of 4 µA at 4-20mA and 5 µA at 0-20 mA.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786

: live:onlywnn_1 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for GENERAL ELECTRIC. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

The IC694ALG221 is a PACSYstem RX3i Programmable Automation Controller (PAC), analog input module. This module is formerly manufactured by GE Intelligent Platforms (GE IP), now under Emerson Automation. This module features Four (4) analog inputs individually configurable to receive current signals specifically, 0-20 mA and 4-20 mA with a resolution of 4 µA at 4-20mA and 5 µA at 0-20 mA.
The GE Fanuc IC694ALG221 input module is an analog current input module that has 4 input points. It is compatible with every CPU manufactured in the GE RX3i PacSystems product line. This module is hot-swappable, which means that it can be either inserted into or removed from a GE backplane that is powered on. Attempting to hot-swap the IC694ALG221 input module may result in component damage and user injury.
The GE Fanuc RX3i PacSystems IC694ALG221 4-point analog draw current from the backplane. At 5 Volts DC, this analog input module can support a load of 25 milliamps or 0.125 Watts. At 24 Volts DC isolated voltage, this input module can support a load of 100 milliamps or 2.4 Watts. The IC694ALG221 input module can also operate with 2 different input current ranges which are 4 to 20 milliamps and 0 to 20 milliamps. This module comes with a range jumper for input channels 1 and 2, and another range jumper for input channels 3 and 4. Every channel has a conversion speed of half a millisecond. There is 1 green LED on the module known as the Module OK LED that lights up when the module is powered on.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Manufacturer	Emerson Automation
Series	PACSystem RX3i
Product Description	Analog input module
Manufacturer	GE Intelligent Platform (GE IP); Emerson Automation (Current)
Part Number	IC694ALG221
No of Channels	Four (4) input channels
Series	PACSystem RX3i
Product Type	Input Module
Nominal Input signal	0-20 mA; 4-20 mA
Part Number	IC694ALG221
Module Type	Analog
Channel update rate	2 ms
Product Description	Analog input module
Number of inputs	4
Digital Resolution	12 bit
Analog input signal	0-20 mA; 4-20 mA
LED	1 Green "Module OK" LED
Analog resolution	5 µA/bit (0-20 mA); 4 µA/bit (4-20 mA)
Analog output resolution	4 µA at 4-20mA; 5 µA at 0-20 mA
Hot-Swapping	Not Supported
Accuracy:	0.1 % full scale
Response times	2 milliseconds (all four channels)
Compatible CPUs	All RX3i PacSystem CPUs
Input filter response	325 Hz
Calibration:	Factory calibrated to 4 µA per count
Input Current	0 to 20 milliamps or 4 to 20 milliamps
