Product Description:

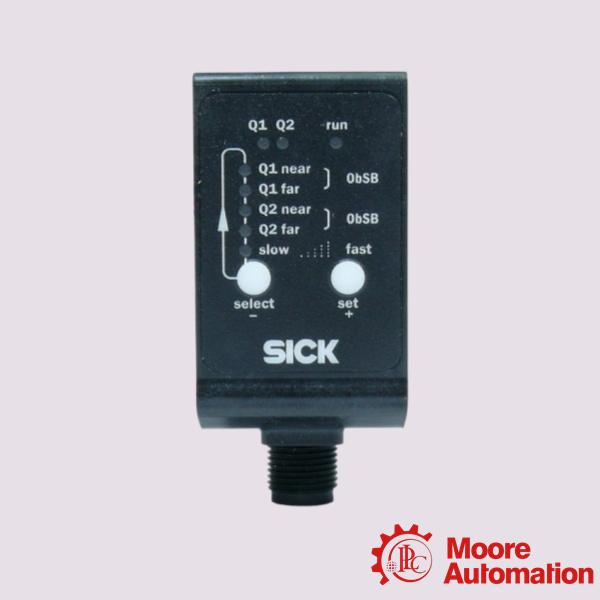

DL35-B15552 is a high-performance laser distance sensor manufactured by SICK AG. It belongs to the Dx35 series of Time-of-Flight (ToF) sensors and is designed for precise long-range distance measurement in industrial, material handling, logistics, and machine control applications.

The sensor uses visible red Class 1 laser technology and supports measurement distances from 200 mm up to 35,000 mm when used with “diamond grade” reflective tape. It provides high-resolution measurement performance, fast response times, IO-Link communication, configurable digital and analog outputs, and robust IP65/IP67 protection for harsh industrial environments.

Application:

Logistics and Warehousing: Used in Guided Vehicles for high-precision collision avoidance, accurate positioning of parking positions, and pallet detection.
Packaging and Food & Beverage: Used on packaging production lines for roll diameter detection, material level monitoring, and detection of the presence or absence of target objects.
Machine Tools and Automotive Manufacturing: Monitoring the safe displacement of stamping equipment and robotic arms, as well as measuring the thickness and distance of objects on conveyor belts.

Frequently Asked Questions (FAQ)

Q: Can I mount multiple DL35-B15552 sensors directly adjacent to each other without causing optical cross-talk?
A: Yes. The sensor uses pulsed time-of-flight technology with high immunity to ambient light and mutual interference, allowing close-proximity mounting as long as the laser beams do not directly cross paths at the lens.

Q: Does the DL35-B15552 require manual diagnostic tools to check the strength of the returning laser signal?
A: No. The device provides integrated alignment and signal quality indicators on its rear display, and signal attenuation data can also be monitored remotely via its IO-Link digital interface.

Q: What installation precaution should be taken when mounting the DL35-B15552 on high-vibration machinery?
A: Heavy-duty mounting brackets with rubber vibration-damping isolators should be used, as continuous severe mechanical shock may misalign the internal laser transmitter and receiver optics over time.
