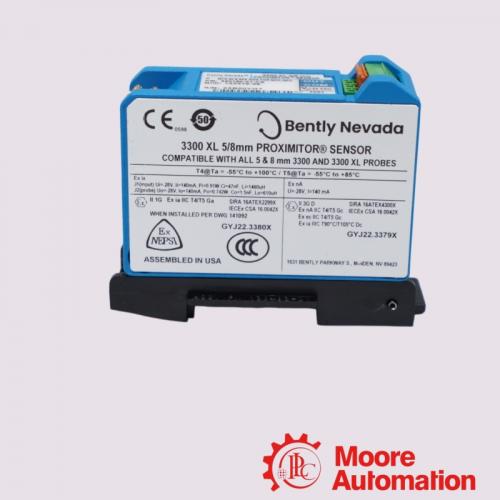

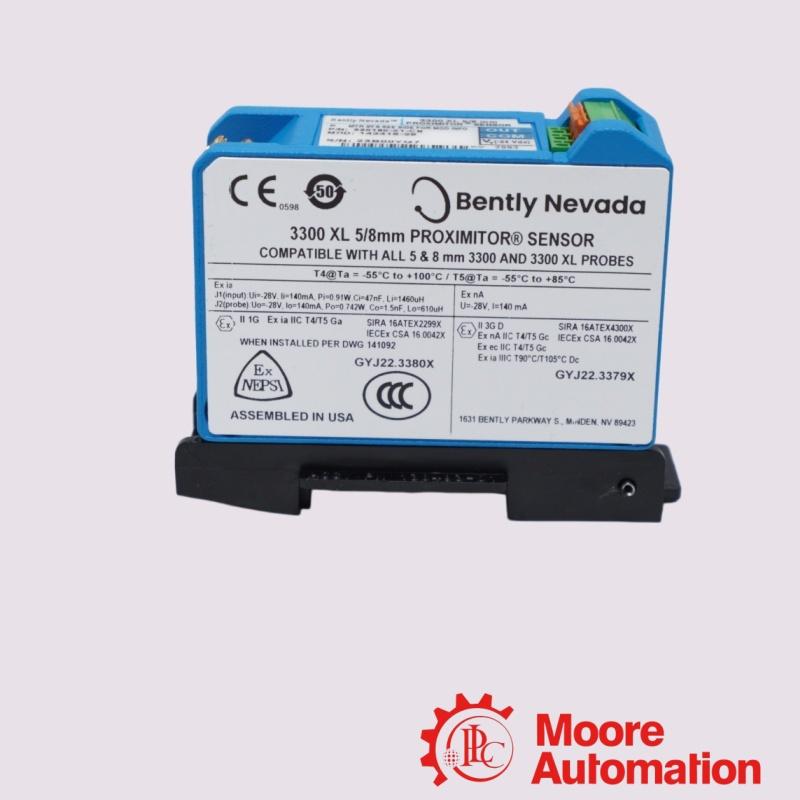

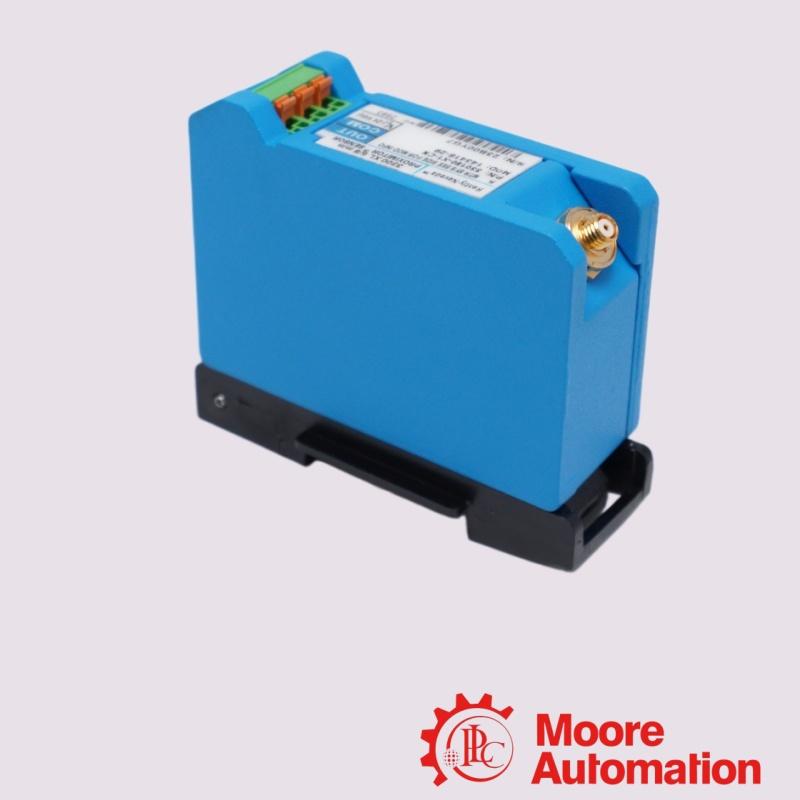

Bently Nevada 330380-90-00 3300 XL High Temperature Proximitor Sensor

Description

The Bently Nevada 330380-90-00 is a 3300 XL 16mm High-Temperature Proximitor Sensor designed for accurate static/dynamic displacement measurements in harsh environments.

Parameter

Total Length & Mounting Option : 9.0 metres (29.5 ft.) Panel Mount
Mounting Hardware : Not required
Proximitor Sensor Material : Aluminum with epoxy powder coat finish
Output signal: Standard 3.94 V/mm (100 mV/mil)
Power supply requirements: -19.6 Vdc to -26 Vdc
Linear range: The typical value is 4 mm (160 mils).
Power sensitivity: For every 1V change in input voltage
Output impedance: 50 Ω

Core Specifications and Features
Probe compatibility: Specifically designed for use with the 3300 XL 16mm high-temperature probe, primarily applicable to vibration and position measurement in extreme high-temperature environments such as turbomachinery.
System length: 9.0 meters (29.5 feet).
Installation method: Panel Mount configuration.
Interference Resistance: Features enhanced RFI/EMI immunity, complies with European CE certification standards, and can operate stably near radio frequency signals without requiring special shielded conduits.

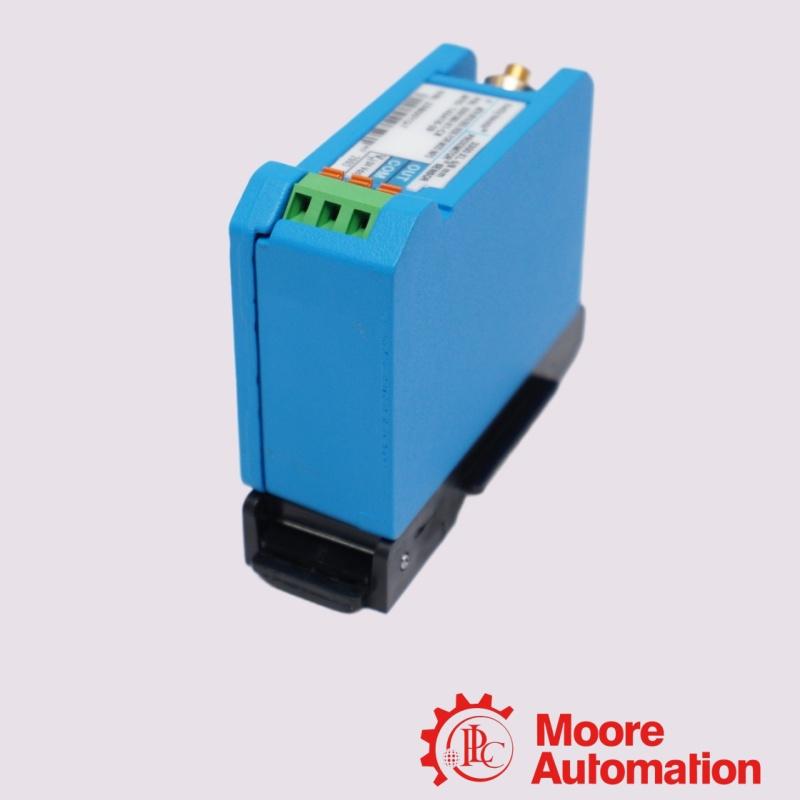

Wiring convenience: Equipped with SpringLoc terminal blocks, enabling quick and secure on-site wiring without the need for special installation tools.

Frequently asked questions

1.What is the function of the 330380-90-00?
It is part of the 3300 XL High-Temperature Proximity System, which uses eddy current technology to monitor rotor shaft position and vibration.

2.What does "90-00" signify in the part number?
It indicates a 9-meter system length with panel mount options (-90) and no additional agency approvals (-00), as shown in this documentation for Bently Nevada sensors.

3.Is this a direct replacement for other models?
Yes, it is commonly listed as a replacement for the discontinued 330300-90-00 3300 XL high-temperature sensor, as noted in this product description from NEX Instrument.

Application areas:
The Bently Nevada 330380-90-00 high-temperature proximity probe is primarily designed for monitoring rotating machinery in extreme high-temperature environments within the power, petrochemical, and heavy industries.
