Bently Nevada 31000-00-00-15-051-01-02 PPS probe housing

Frequently asked questions
Q:Does the 31000-00-00-15-051-01-02 comply with API 670 requirements?
A:Yes. The 31000/32000 Proximity Probe Housing Assemblies are designed to comply with the API 670 standard for externally mounted proximity probe housings used in machinery protection applications.

Q:What measurements can be supported when using this housing assembly?
A:The housing is typically used with radially mounted proximity transducers for shaft vibration monitoring and Keyphasor® reference measurements on rotating machinery.

Q:Does the 31000-00-00-15-051-01-02 include a proximity probe?
A:No. This model is supplied as a housing assembly only. The proximity probe, probe cable, and standoff adapter are not included and must be selected separately according to the monitoring application.

Description

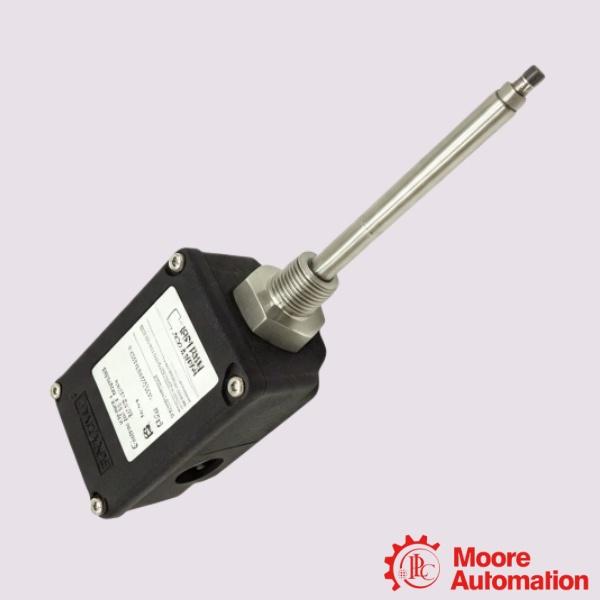

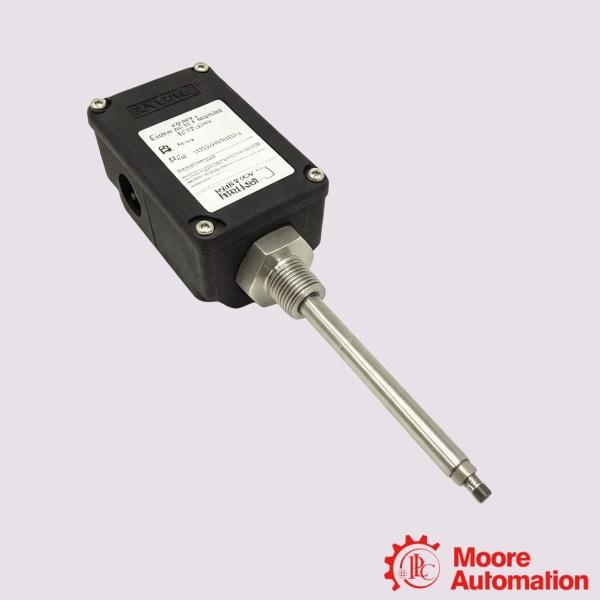

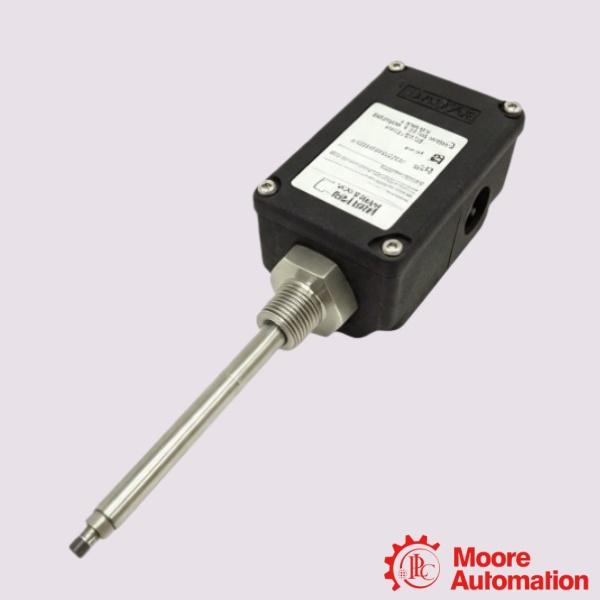

The Bently Nevada 31000-00-00-15-051-01-02 is a 31000 Proximity Probe Housing Assembly designed to provide secure mechanical mounting and environmental protection for proximity probes installed through rotating machinery casings. It is used when a proximity probe needs to be mounted externally through the machine case while maintaining easy access for probe adjustment, inspection, and replacement. The housing assembly allows technicians to adjust the probe gap or replace the probe and extension cable without requiring machine disassembly. This configuration is supplied as a housing assembly without a proximity probe, probe cable, or standoff adapter. The model 31000-00-00-15-051-01-02 features a 5.1-inch probe penetration option, one M25 conduit fitting with two sealing plugs, and an M24 × 3 mounting thread. The 31000-00-00-15-051-01-02 is typically used with radially mounted proximity transducers for shaft vibration monitoring and Keyphasor® reference measurements on critical rotating machinery. The assembly is designed to comply with API 670 requirements for externally mounted proximity probe housings and can be applied in intrinsically safe hazardous-area installations when used with an approved transducer system and suitable intrinsic safety barriers.

Parameter

Model: 31000-00-00-15-051-01-02 PPS probe housing
Probe with Connector: 00-Probe not required
Probe Cable Length: 00-Probe cable not required (Option A must also be 00)
Standoff Adapter Length (Option C Dimension): 15-Minimum length 1.5 in (38 mm)
Probe Penetration Option (Option D Dimension): 051-5.1 in
Fittings: 01-One 3/4-14 NPT fitting, two plugs.
Mounting Thread Option: 02-3/4-14 NPT (Required if ordering Standoff Adapter Option).

Application areas

• Power Generation – Applied to steam turbines, gas turbines, generators, and auxiliary rotating equipment. The housing supports reliable installation of proximity probes in machinery protection systems, helping monitor shaft movement, vibration behavior, and Keyphasor® signals during continuous operation.
• Petrochemical and Refining Plants – Installed on process compressors, hydrogen compressors, pumps, and motor-driven rotating equipment. The housing protects the probe assembly from external conditions and provides easier access for inspection and maintenance during scheduled shutdown periods.
• Chemical Processing Facilities – Used on reactors, agitators, compressors, and process pumps where accurate shaft displacement monitoring is required. The housing helps maintain stable probe positioning in environments with moisture, dust, and chemical contaminants.
