Bently Nevada 31000-00-00-15-023-01-02 PPS probe housing

Frequently asked questions
Q:What type of mounting connection does this housing provide?
A:The 31000-00-00-15-023-01-02 uses an M24 × 3 mounting thread and includes one M25 conduit fitting with two sealing plugs, providing a suitable connection arrangement for metric installations.

Q:Why use a 31000 proximity probe housing assembly?
A:The housing allows technicians to access the proximity probe and extension cable from outside the machine. This makes probe gap adjustment and probe replacement possible without disassembling the equipment.

Q:What does the “023” option represent in this model number?
A:The 023 option indicates a 2.3-inch probe penetration length, which defines the distance the probe extends through the machine casing to reach the measurement target.

Description

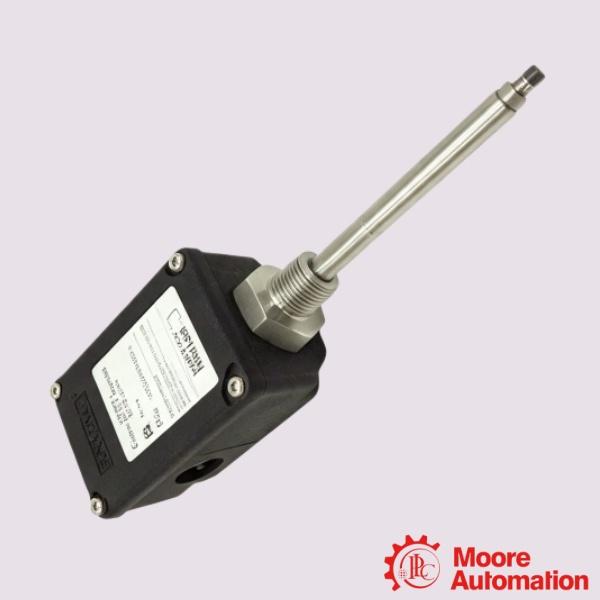

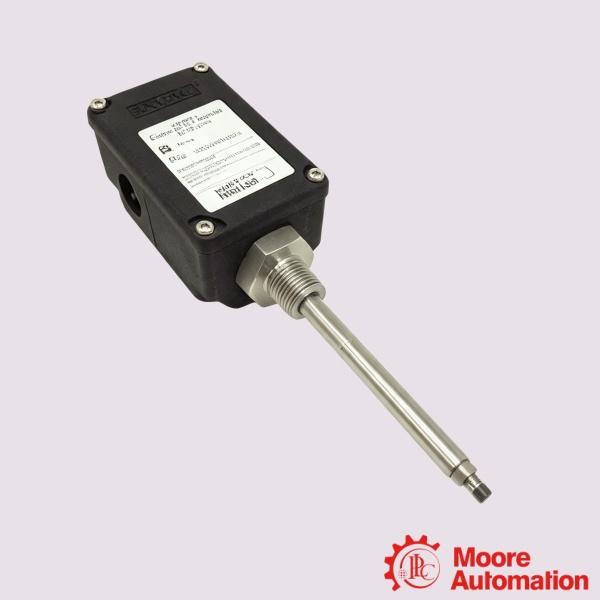

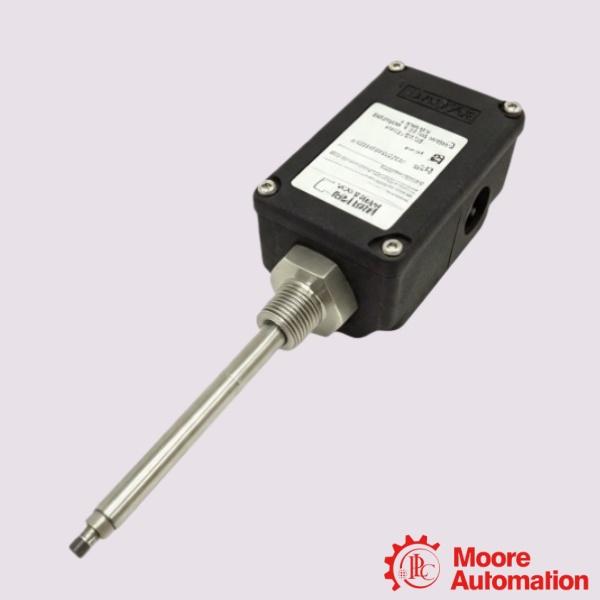

The Bently Nevada 31000-00-00-15-023-01-02 is a 31000 Proximity Probe Housing Assembly designed to provide a protected mounting arrangement for proximity probes installed through rotating machinery casings. This housing assembly is used to provide mechanical and environmental protection for the probe installation while allowing external access to the proximity probe and extension cable for probe gap adjustment or replacement without requiring machine disassembly. This configuration is supplied without a proximity probe, probe cable, or standoff adapter, and includes a 2.3-inch probe penetration option, one M25 conduit fitting with two sealing plugs, and an M24 × 3 mounting thread. The housing body is manufactured from glass-reinforced polyphenylene sulfide (PPS) thermoplastic, while other components are made from corrosion-resistant stainless steel to provide reliable performance in industrial environments. The 31000-00-00-15-023-01-02 is typically applied with radially mounted proximity transducers for shaft vibration monitoring and Keyphasor® reference measurement on critical rotating equipment. The assembly complies with API 670 requirements for externally mounted proximity probe housings and can be used in intrinsically safe hazardous-area applications when installed with an approved transducer system and suitable intrinsic safety barriers.

Parameter

MModel: 31000-00-00-15-023-01-02 PPS probe housing
Probe with Connector: 00-Probe not required
Probe Cable Length: 00-Probe cable not required (Option A must also be 00)
Standoff Adapter Length (Option C Dimension): 15-Minimum length 1.5 in (38 mm)
Probe Penetration Option (Option D Dimension): 023-2.3 in
Fittings: 01-One 3/4-14 NPT fitting, two plugs.
Mounting Thread Option: 02-3/4-14 NPT (Required if ordering Standoff Adapter Option).

Application areas

• Water and Wastewater Treatment – Installed on large pumps, motors, and rotating equipment where shaft vibration monitoring is required for preventive maintenance and equipment reliability.
• Industrial Manufacturing – Used in machinery protection systems for compressors, fans, blowers, and other high-value rotating assets. The housing provides a durable external mounting solution for proximity probes, supporting shaft vibration and Keyphasor® monitoring while following API 670 installation requirements.
• Pulp and Paper Industry – Applied to large motors, turbines, refiners, and paper processing equipment. The external housing design improves accessibility for inspection and maintenance of vibration monitoring components.
