Bently Nevada 24701-28-05-65-105-03-02 Proximity Probe Housing Assemblies

Brand/ Manufacturer:
Bently Nevada
Dimensions:
26x7.8x7.8cm
Weight:
2.14kg
Country of Origin: :
USA
Description:
Bently Nevada 24701-28-05-65-105-03-02 Proximity Probe Housing Assemblies

Inquiry now

Information

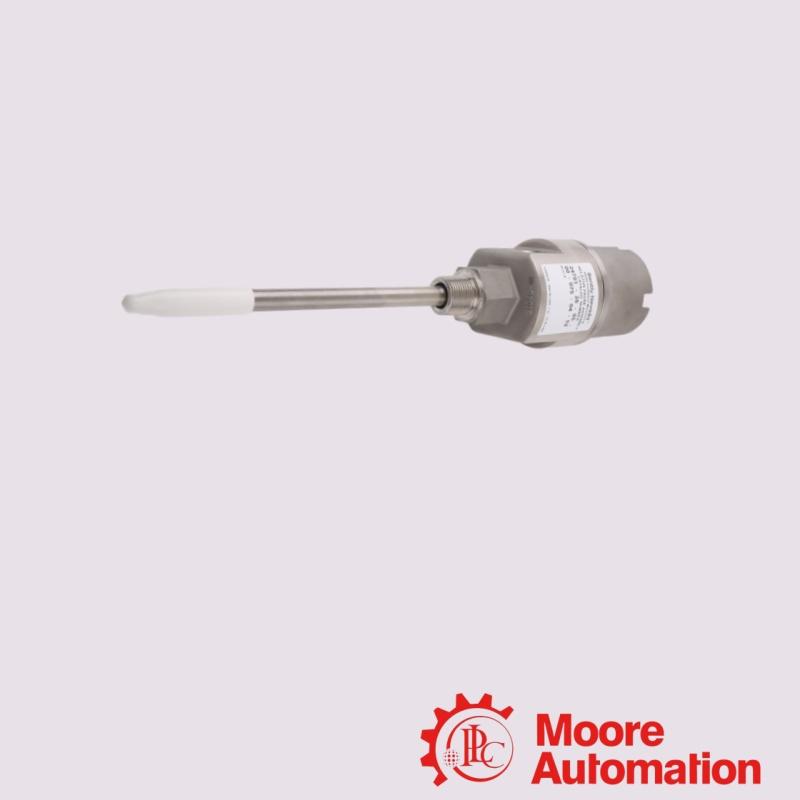

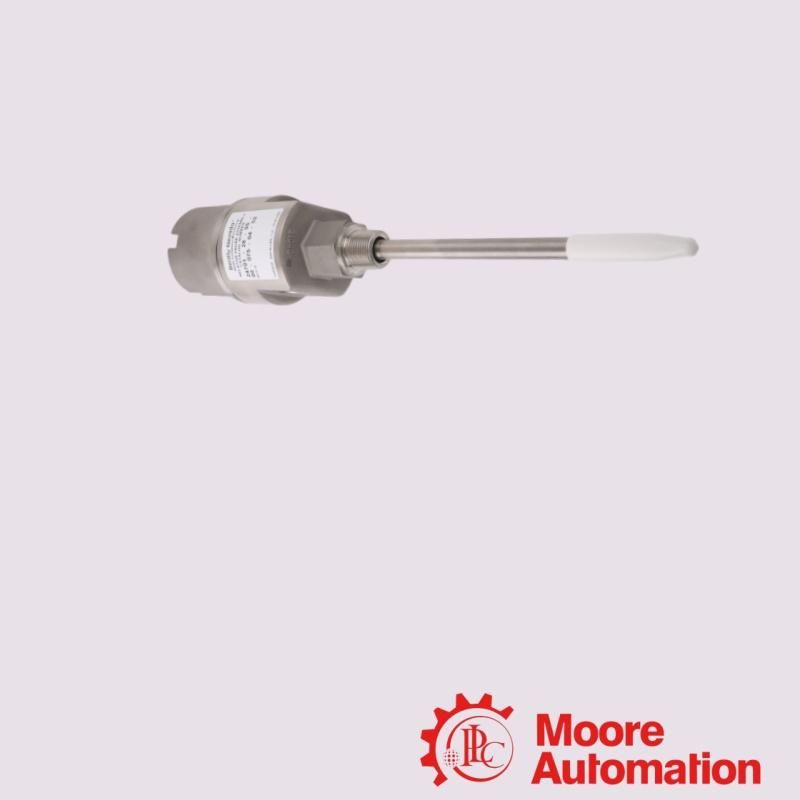

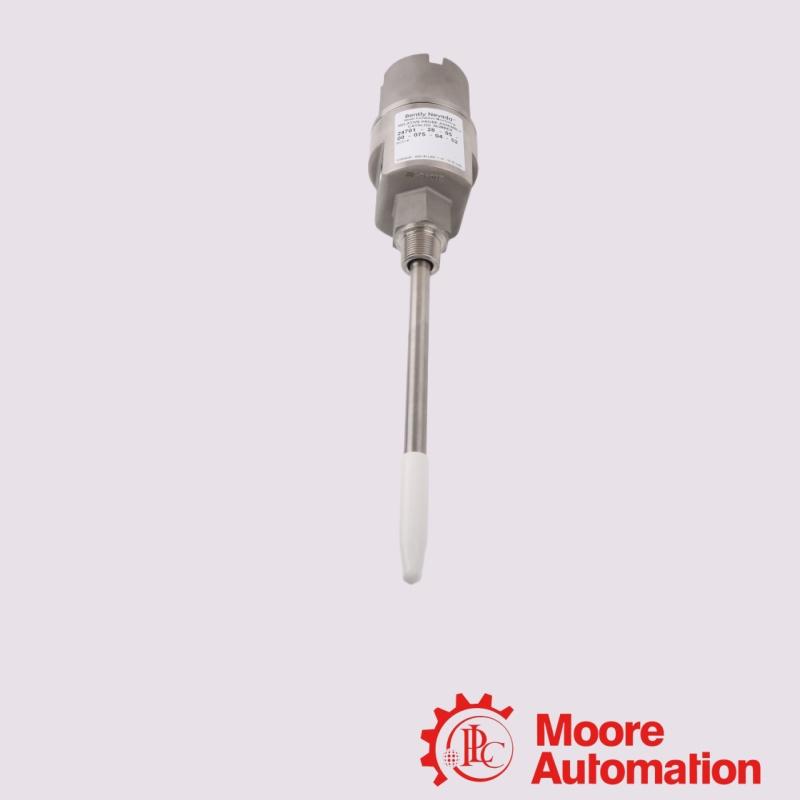

Bently Nevada 24701-28-05-65-105-03-02 is an all metal stainless steel eddy current probe housing assembly designed specifically for external probe installation. It simplifies the maintenance process of large rotating machinery by allowing for adjustment of probe clearance or replacement of probes without disassembling the machine.

Welcome to contact the sales manager：Tiffany

plcsale@mooreplc.com +86-18030235313

Item NO:	24701-28-05-65-105-03-02	Product Origin:	USA
Description:	Proximity Probe Housing Assemblies	Order Multiple:	1 piece
Package:	Original Package	Shipping Port:	XIAMEN
Condition:	100% Original	Lead Time:	IN STOCK
Payment:	T/T	Weight:	2.14kg
Warranty:	12 Months	Service:	One-stop Service
Total cable length:	1.0 meters	Installation Thread:	The installation thread specification is 3/4-14 NPT
05 (Cable Length):	0.5 meters (20 inches)	Main material:	303 Stainless Steel
65 (Bracket Length Option C):	6.5 inches	Sleeve material:	304 Stainless Steel
penetration depth Option D:	10.5 inches	Working temperature:	-51 ° C to+177 ° C
accessory options:	50 Ω	Pressure seal:	usually Viton fluororubber

Application field

Oil
Gas
Power Generation
Heavy Manufacturing

FAQ
How to achieve "non-stop probe replacement" through this component?
The casing is designed with an external rotating sleeve and an internal sealing ring. When the device is running, the probe can be retracted or inserted without touching the internal oil and gas of the machine by loosening the external locking nut and rotating the sleeve.

Do I need to replace the entire casing after the 24701-28-05-65-105-03-02 probe is damaged?
No need. 24701 is a modular design, only the corresponding 3300 XL 8mm reverse installation probe needs to be purchased.

Does this component support 24701-28-05-65-105-03-02 3300 XL 5mm or 11mm probes?
Direct replacement is not supported. This model (Option 28) is designed specifically for 8mm reverse installation probes. The physical dimensions and linear range of 5mm or 11mm probes are different, and the threads and support structures inside the housing cannot be completely matched. If it is necessary to change the probe specifications, the entire housing component usually needs to be replaced.
