Bently Nevada 21000-34-05-00-015-04-02 21000 Proximity Probe Housing Assembly

Frequently asked questions
Q:Can this model be used in hazardous-area applications?
A:Yes. The supplied 3300 XL 8 mm probe includes multiple hazardous-area approvals. When installed with matching approved extension cables and Proximitor® Sensors, the complete transducer system is suitable for approved hazardous-area installations.

Q:What measurements can this assembly support?
A:When used with compatible Bently Nevada extension cables and Proximitor® Sensors, it supports shaft vibration, shaft position, shaft displacement, and Keyphasor® reference measurements used in machinery protection and condition monitoring systems.

Q:What is the Bently Nevada 21000-34-05-00-015-04-02 used for?
A:The 21000-34-05-00-015-04-02 is an externally mounted proximity probe housing assembly designed to install and protect a reverse-mounted 3300 XL 8 mm proximity probe on rotating machinery. It provides convenient access for probe adjustment and replacement while supporting continuous machinery condition monitoring.

Description

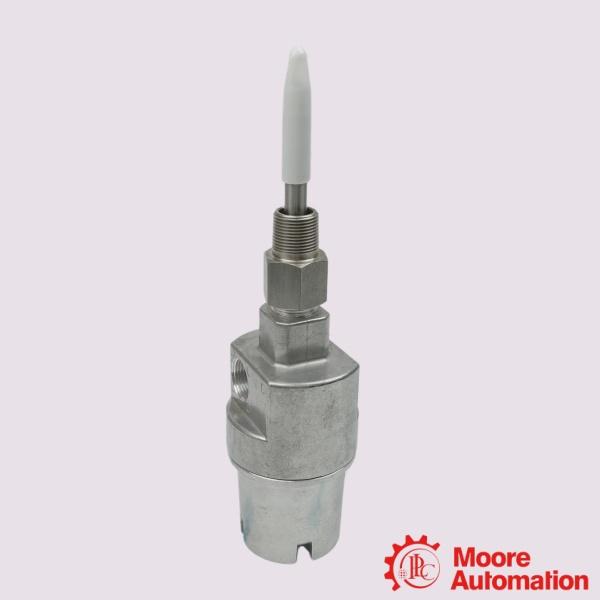

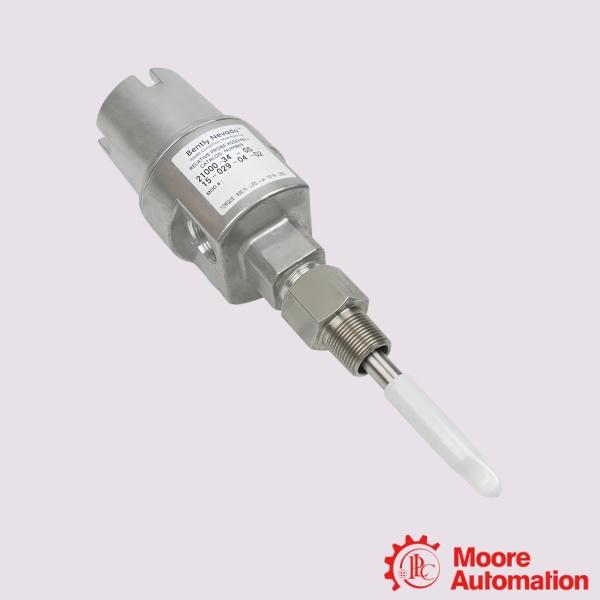

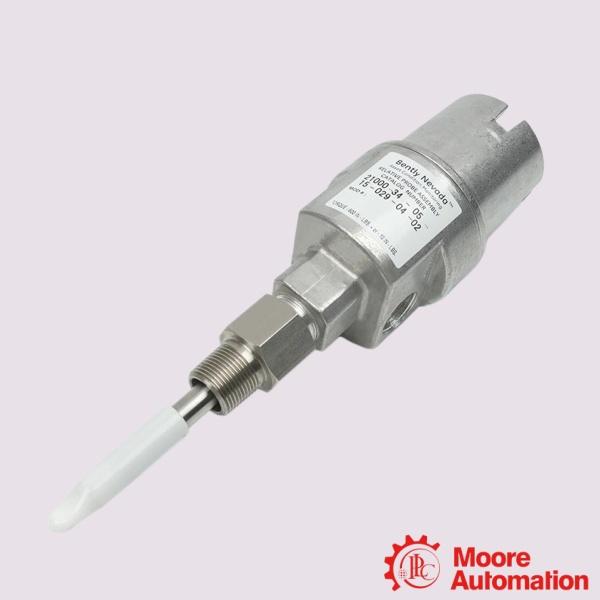

The Bently Nevada 21000-34-05-00-015-04-02 is a 21000 Proximity Probe Housing Assembly designed for the external installation of proximity probes on rotating machinery. The assembly provides a protected enclosure for the transducer while allowing convenient access to the probe and extension cable for gap adjustment or probe replacement without dismantling the machine. The housing consists of an aluminum body, a 304 stainless steel probe sleeve, a threaded dome cover, O-rings, thread seal, and conduit connection ports. It is designed to comply with the requirements of API 670 for externally mounted proximity probe housings. This configuration includes a 3300 XL 8 mm proximity probe with connector protector and selectable hazardous-area approvals (Option 34), a 0.5 m (20 in) probe cable (Option 05), no standoff adapter (Option 00), a 1.5 in probe penetration (Option 015), one 3/4-14 NPT plug only (Option 04), and a 3/4-14 NPT mounting thread (Option 02). The reverse-mounted probe design enables the sensing gap to be adjusted or the probe to be replaced from outside the machine, reducing maintenance time and improving service accessibility. For probe penetration lengths between 1.0 and 2.0 inches, the datasheet notes that counterboring the machine case may be required to reduce side-view or rear-view effects. When used with compatible 3300 XL extension cables and Proximitor® Sensors, it forms a complete proximity transducer system for machinery protection and condition monitoring in industrial applications.

Parameter

Model: 21000-34-05-00-015-04-02 21000 Proximity Probe Housing Assembly
Probe with Connector: 34-33300 XL 8mm probe with connector protector, selectable hazardous area approvals
Probe Cable Length: 05-0.5 m (20 in)
Standoff Adapter (Option C Dimension): 00-00 mm
Probe Penetration (Option D Dimension): 015-1.5 in
Fittings: 04-One 3/4-14 NPT plug only
Mounting Thread: 02-3/4-14 NPT

Application areas

• Power Generation Facilities – Installed on turbine generators, auxiliary turbines, and large rotating equipment used in power plants. It forms part of the machinery protection system by providing reliable probe installation for continuous shaft displacement monitoring.
• Petrochemical Processing Plants – Applied to process compressors, pumps, and motor-driven equipment operating under continuous production conditions. The housing protects the probe assembly from dirt, moisture, and mechanical damage while maintaining accurate measurement performance.
• Chemical Manufacturing – Used on high-speed pumps, compressors, and agitator drive systems where shaft movement must be monitored to support equipment reliability and predictive maintenance programs.
• Pipeline Compression Stations – Installed on gas transmission compressor units to provide stable mounting for proximity probes used in vibration monitoring and rotating equipment protection. The external housing design simplifies maintenance activities during routine inspections.
