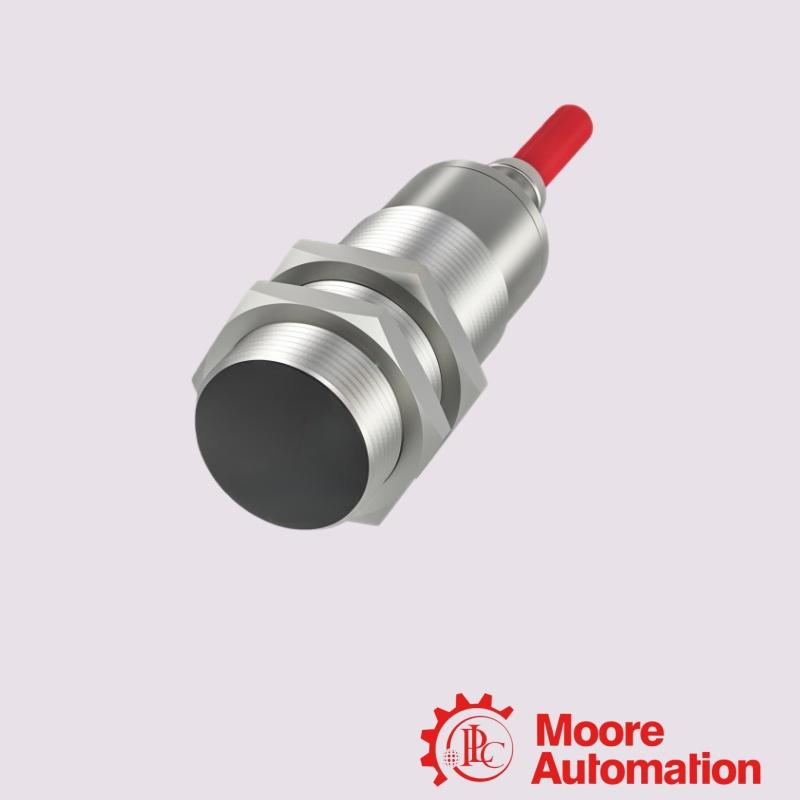

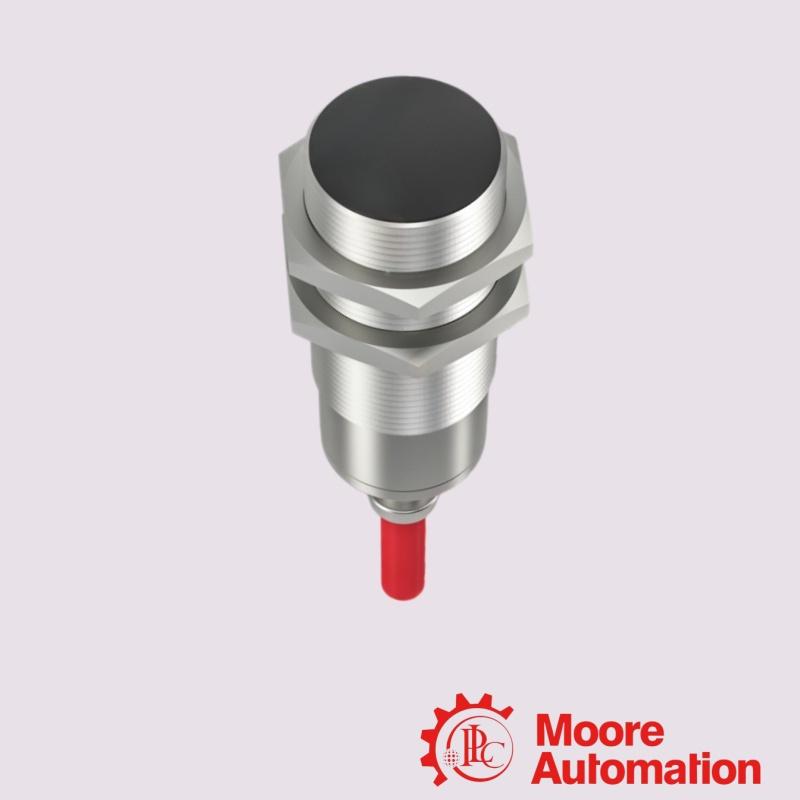

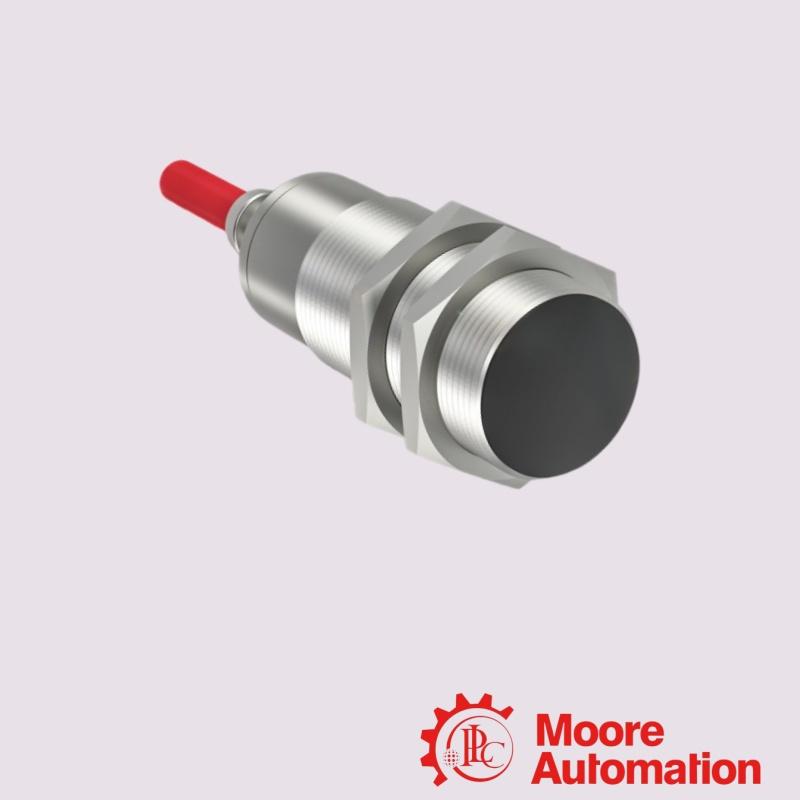

BALLUFF BES 516-114-SA1-05 Inductive Sensors

Parameter

Rated operating distance Sn: 10mm
Assured operating distance Sa: 0...8.0mm
Repeatability R: ≤ 5%
Hysteresis: ≤ 15%
Ambient temperature range: -25...+120°C
Pollution Degree: 3
Time delay before availability: ≤ 10ms
Particular characteristics: temperature rated
Measurements (DxT): M30x1.5 x 91.5mm
Housing material: Nickel plated brass
Material of sensing face: PBTP
Degree of protection: IP67
Connection: Cable
Cable type: SIHF
Current type: DC
Wiring: 4-Wire
Switching function: Complementary
Output signal: PNP
Rated operational voltage: 24 DCV
Rated operational current: 400mA
Supply voltage: 10...30 DCV
Ripple: ≤ 15%
Max. switching frequency: 300Hz
No-load supply current: ≤ 15mA
Off-state current: ≤ 80µA
Voltage drop: ≤ 1.5V

Frequently asked questions

1.What is  BES 516-114-SA1-05 ？
BES 516-114-SA1-05  is a Inductive Sensors

2.What materials can inductive sensors detect?
Inductive proximity sensors can only detect metal targets. They do not detect non-metal targets such as plastic, wood, paper, and ceramic. Unlike photoelectric sensors, this allows a inductive proximity sensor to detect a metal object through opaque plastic.

3.What is the difference between ultrasonic and inductive sensors?
They differ for technology, capability to detect different type of targets and working distance. All three, on the other hand, can detect object without any contact, in spite of surface color. Inductive sensors and capacitive sensors can operate at few millimiters, whilist ultrasonic sensors can reach several meters.

4.Do you offer global delivery services?
yes. We ship globally, and we are able to quickly deliver parts globally to any corner of the world. Unless otherwise specified, we will ship your order via (DHL). We can also ship through FedEx, UPS, and TNT. We can also use your account.

5.How many parts do you have in stock?
We have an extensive stock base consisting of ten thousands of new and discontinued automation parts including those from leading manufacturers such as:Control Systems (DCS, PLC, CNC) ,Panel Controllers,HMI and Display Panels,Drives,Encoders and Resolvers,Power Supplies.

Application field
Vibro Meter (now part of Parker Meggitt Group) focuses on high-precision vibration monitoring and sensor technology, widely used in aerospace, energy, and industrial manufacturing fields. Its core application lies in the protection, status monitoring, and diagnosis of key rotating machinery, providing vibration, dynamic pressure, speed, and icing detection, and improving the reliability of equipment such as aircraft, generators, and industrial pumps.
