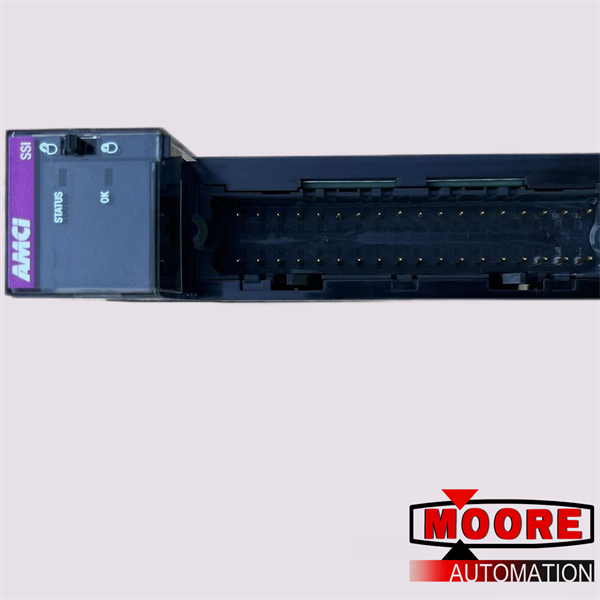

AMCI 7264 Interface Module

Brand/ Manufacturer:
AMCI
Dimensions:
6.5cm*7.6cm*10.2cm
Weight:
0.3kg
Country of Origin: :
USA
Description:
Interface Module

Inquiry now

Mfr. Part Number:	7264

Manufacturer:	AMCI

Description:	AMCI developed the 7260 series modules for applications requiring a direct interface to most sensors that output SSI data.

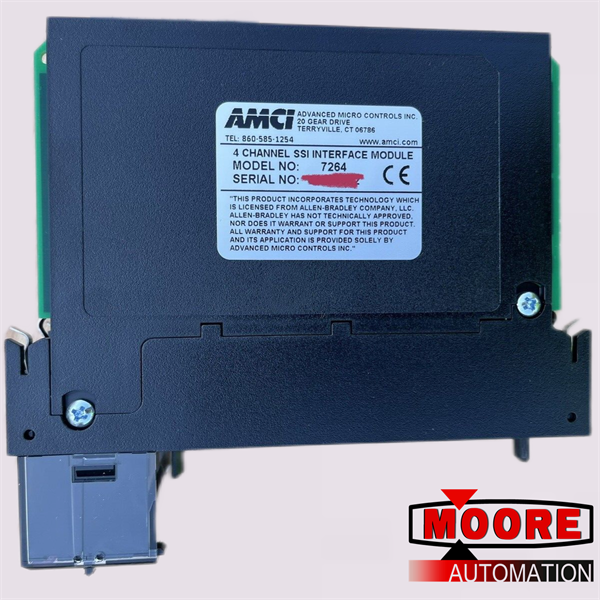

Full Description:	The 7264 module is a four channel SSI interface module that resides in a Automation ControlLogix rack


Status:	In stock ready to ship

Sales manager: Tiffany Guan plcsale@mooreplc.com + 86 18030235313 dddemi33 2851195473

The resolution of the ControlLogix SSI interface modules are only limited by the resolution of the position sensor used. Additional features include: position preset, count direction, position scaling, and latch inputs that are used to capture the scaled position data. These modules also incorporate fault diagnostics that constantly monitor system integrity and report any errors to the PLC

The 7264 module is a four channel SSI interface module that resides in a Automation ControlLogix rack
This module is capable of connecting to four independent SSI output sensors. This module also has four latching
inputs, one for each channel, which can be used to capture the sensor’s data. The 7264 module communicates with the PLC using input and output registers. The Data value, Velocity, Actual SSI data, Latched Value, and Status information are reported to the Input Registers. All module setup parameters, including Preset Value, Count Direction, Velocity Response Time, as well as the SSI-Logic parameters [Data Type (binary or gray code), Data Logic (positive or negative), Number of Clock Bits, Number of Data Bits, MSB Number, and Clock Frequency] are programmed through Message Instructions.

The Output registers assigned to the module can be used to Apply the Preset or to send the PLC’s Central System

Clock-Time to the 7264 module. This optional and additional feature causes the module to use this system time and the sensors velocity data to calculate an Interpolated or “Look Ahead” Data value. This has two possible functions. One, the Interpolated Data Value along with the system time value can be sent to other ControlLogix modules, for example the 8213-VA, allowing them to schedule their response with a high degree of precision. Two, the Interpolated Data Value allows the user to “Look Ahead” to what the Data Value will be at a defined time in the future.

The 7264 module stores its parameters in a non-volatile flash memory when power is removed so it is not necessary to program the module at every power up. However, this flash memory is good for a minimum of 10,000 write cycles, so the module must not be programmed during every machine cycle. The four latching inputs are sinking and will activate when they see a voltage level between 8 and 24Vdc. These inputs can be programmed to capture the scaled SSI data on the rising, falling, or both transitions of the input.
