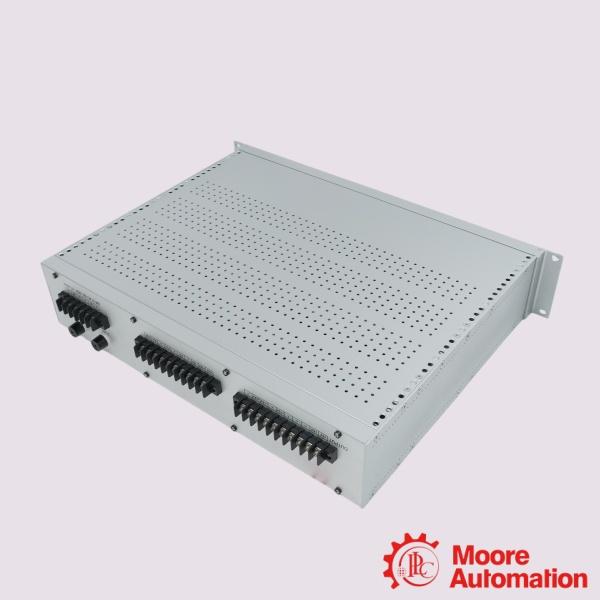

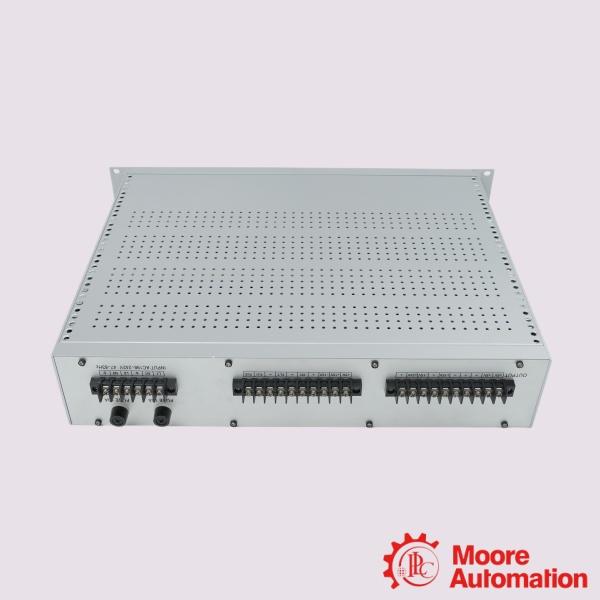

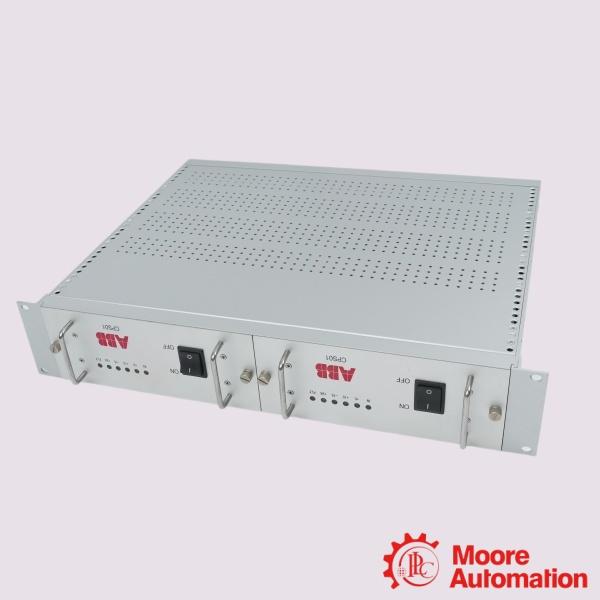

ABB CPS01 Dedicated Control Power Supply Unit

Parameter

Model: CPS01 Dedicated Control Power Supply Unit
Rated frequency:50 / 60 Hz
Rated input voltage: 100-240 V AC
Rated output voltage: 24 V DC
Frequency range: 45 - 65 Hz
Ambient temperature range operation: -25 to +70 °C (-13 to +158 °F)
Degree of protection: IP20 / IP20

Description

The ABB CPS01 switching power supply delivers a stable 24 V DC output for industrial control systems, automation equipment, and electrical control cabinets. A wide AC/DC input range allows the unit to operate under different mains supply conditions worldwide, eliminating the need for manual voltage selection. Operating with an efficiency of up to 94%, it helps reduce power losses while limiting heat generation inside the control cabinet, contributing to improved operating efficiency. For applications that require additional output during startup or short-term overloads, the CP-S01 series provides a Power Reserve capability of 150% rated output power for up to 5 seconds. This extra capacity is useful when equipment experiences temporary inrush current or increased load demand. The power supply is also equipped with active power factor correction (PFC), overtemperature protection, and a coated printed circuit board (PCB), features that contribute to dependable performance in industrial operating environments. The compact housing is intended for installation on a standard DIN rail, making efficient use of cabinet space while allowing straightforward installation and servicing. The unit is specified for ambient temperatures ranging from -25°C to +70°C. It can be connected in parallel when additional output current is required and can also be used in redundant power configurations together with compatible ABB CP-C.1 redundancy modules and CP-B buffer modules.

Frequently asked questions

Can the CPS01 be used in redundant power systems?
Yes. The power supply supports redundant operation when combined with compatible ABB CP-C.1 redundancy modules, helping improve system availability.

How is the CPS01 installed?
The CPS01 is designed for installation on standard DIN rails, allowing integration into industrial control cabinets.

What protection functions are included in the CPS01?
The power supply includes protection features such as overtemperature protection and other internal protection functions for operation in industrial environments.

Application areas:
Marine and Offshore Industry: Fully qualified for maritime configurations because of its certified construction and integrated coated printed circuit board assembly (PCBA).
Solar Energy Infrastructure: Tailored to withstand harsh conditions found in solar farm grid setups and control cabinets.
Wind Power Generation: Provides rugged components necessary for deployment within wind turbine electronic units.
