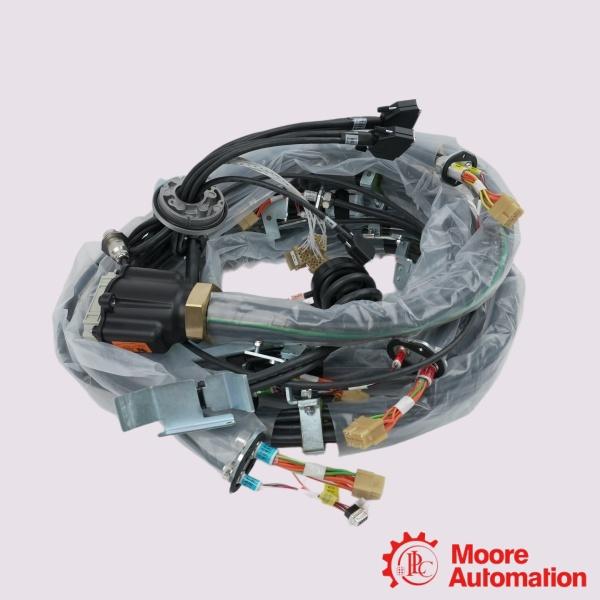

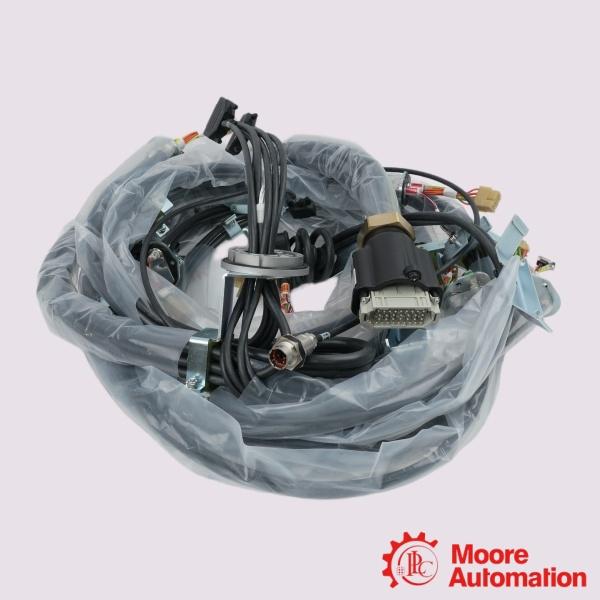

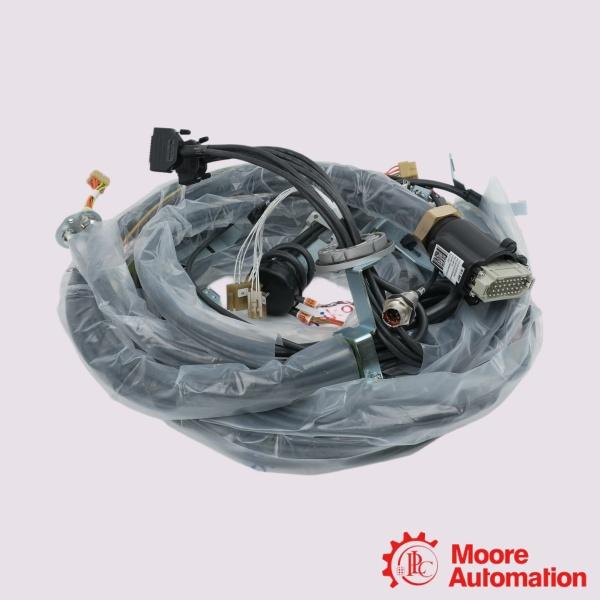

ABB 3HAC058040-001 Manipulator Harness

Frequently asked questions
Q:What is the ABB 3HAC058040-001?
A:The ABB 3HAC058040-001 is a manipulator harness for axes 1–6 used in ABB industrial robots. It provides the electrical connections between the robot controller and the components installed inside the robot arm.

Q:Why is correct cable routing important?
A:Correct routing helps prevent excessive cable movement, abrasion, and unnecessary mechanical stress during robot motion, supporting reliable electrical connections throughout all six axes.

Q:Can the harness be installed directly as a replacement?
A:Yes. When the robot model and part number match, the harness can be installed as a replacement using the original routing and connection points specified by ABB.

Description

The ABB 3HAC058040-001 is a manipulator harness for the axis 1–6 assembly of ABB industrial robots. It provides the electrical connections required between the robot controller and the internal components of the manipulator, supporting signal transmission and power distribution throughout the robot arm. Manufactured to the original ABB specifications, the harness matches the mechanical routing and connector arrangement of compatible robot models, allowing direct installation without modification to the existing wiring layout. The harness is supplied as an original replacement component for robot maintenance and service applications. Its cable assembly is configured for installation within the manipulator structure, where continuous movement of multiple robot axes requires reliable cable routing and secure electrical connections. Using the correct harness helps maintain the original electrical configuration and supports normal communication between the controller, motors, feedback devices, and other internal components. The 3HAC058040-001 replaces earlier harness versions, including part numbers 3HAC042840-001 and 3HAC069607-001, while maintaining compatibility with the corresponding ABB robot configuration. As part of the robot electrical system, it contributes to stable operation, simplified maintenance, and restoration of the original equipment wiring arrangement during scheduled service or component replacement.

Parameter

Model: 3HAC058040-001 Manipulator Harness
Cross-Sectional Width: 68 mm
Maximum Profile Height: 95 mm
Net Core Weight: 14.5 kg
Target Controller Architecture: ABB IRC5 Controller System
Controlled Motion Span: Full configuration covering Axis 1 through Axis 6
Net Unrolled Length: 7205 mm

Application areas

The 3HAC058040-001 is widely utilized across the following industrial application areas:

• Laser Cutting and Welding: Provides steady encoder feedback to maintain sub-millimeter trajectory accuracy along car door and frame paths.
• De-burring and Grinding: Resists high mechanical vibrations when the robot applies constant force to clean rough metal castings.
• Spot Welding: Controls high-speed axis adjustments while carrying signals for heavy servo-welding guns mounted on the robot wrist.
