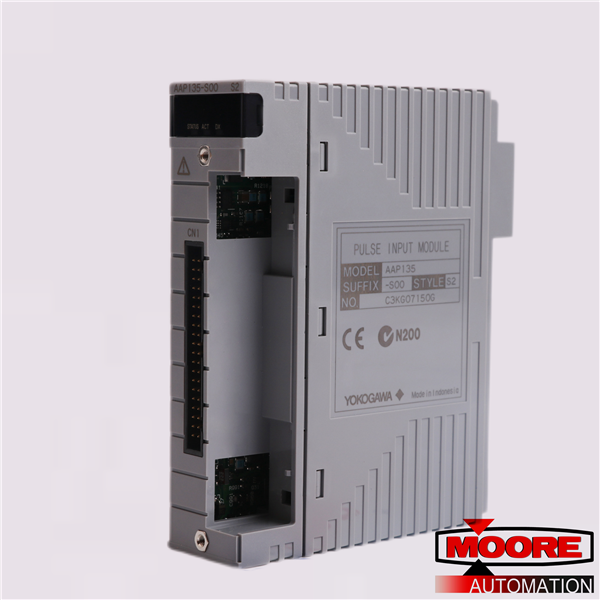

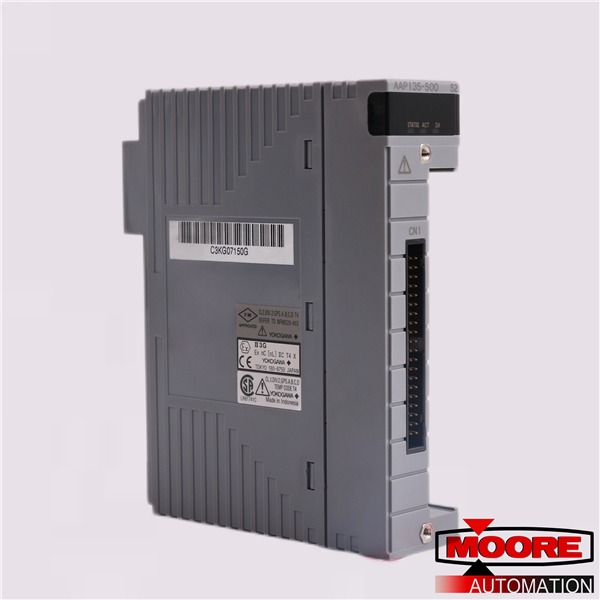

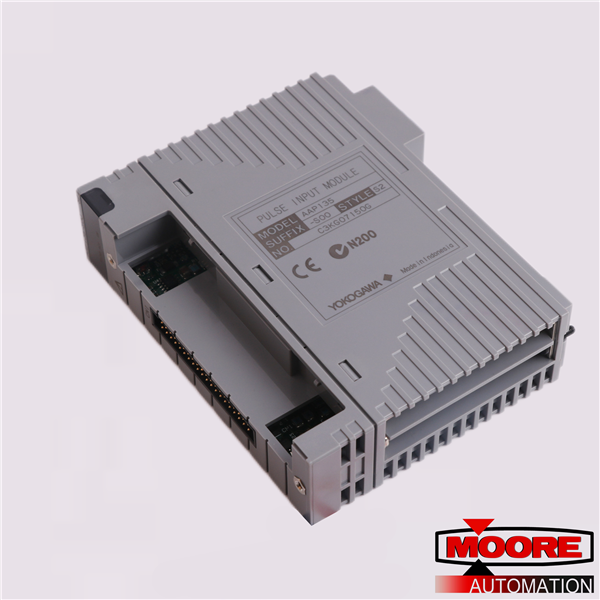

AAP135-S00 S2 | Yokogawa PULSE INPUT MODULE

in stock#

Brand/ Manufacturer:
Yokogawa
Dimensions:
3.3 cm x 10.7 cm x 13 cm
Weight:
0.3 kg
Country of Origin: :
USA
Description:
YOKOGAWA AAP135-S00 S2 PULSE INPUT MODULE

Inquiry now

Mfr. Part Number:	AAP135-S00 S2

Manufacturer:	Yokogawa

Description:	YOKOGAWA AAP135-S00 S2 PULSE INPUT MODULE

Full Description:	YOKOGAWA AAP135-S00 S2 PULSE INPUT MODULE This module receives contact ON/OFF, voltage pulse, and current pulse signals. It is isolated between the field and the system as well as in between each channel, and can be used in dual-redundant configuration. Number of input channels 8, isolated channels

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786

: live:onlywnn_1 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for . The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

This module receives contact ON/OFF, voltage pulse, and current pulse signals. It is isolated between the field and the system as well as in between each channel, and can be used in dual-redundant configuration.
Number of input channels 8, isolated channels
Input signal (*3)
2-wire type: Contact ON/OFF, voltage pulse, current pulse
(possible to supply transmitter power supply)
3-wire type: Power-supply-type voltage pulse
Input frequency 0 to 10 kHz (*4)
Withstanding voltage Between input and system: 500 V AC, for 1 minute
Between channels: 500 V AC, for 1 minute (*1)
Minimum input pulse width 40 µs
Shunt resistance Can be selected from none/200/500/1000 Ω.
(Open when power is OFF and for the standby side in a dual-redundant configuration)
Pull-up resistance 68 kΩ (12 V DC or 24 V DC)
Filter Filter for eliminating chattering can be set. (*2)
Data update period 2 ms
Transmitter power supply Can select 24 V DC/12 V DC.
Limiter value 12 V DC ±10 %: 40 mA, 24 V DC ±10 %: 30 mA
Maximum current consumption 300 mA (5 V DC), 400 mA (24 V DC)
Weight 0.3 kg
External connection Pressure clamp terminal, KS cable, MIL connector cable
